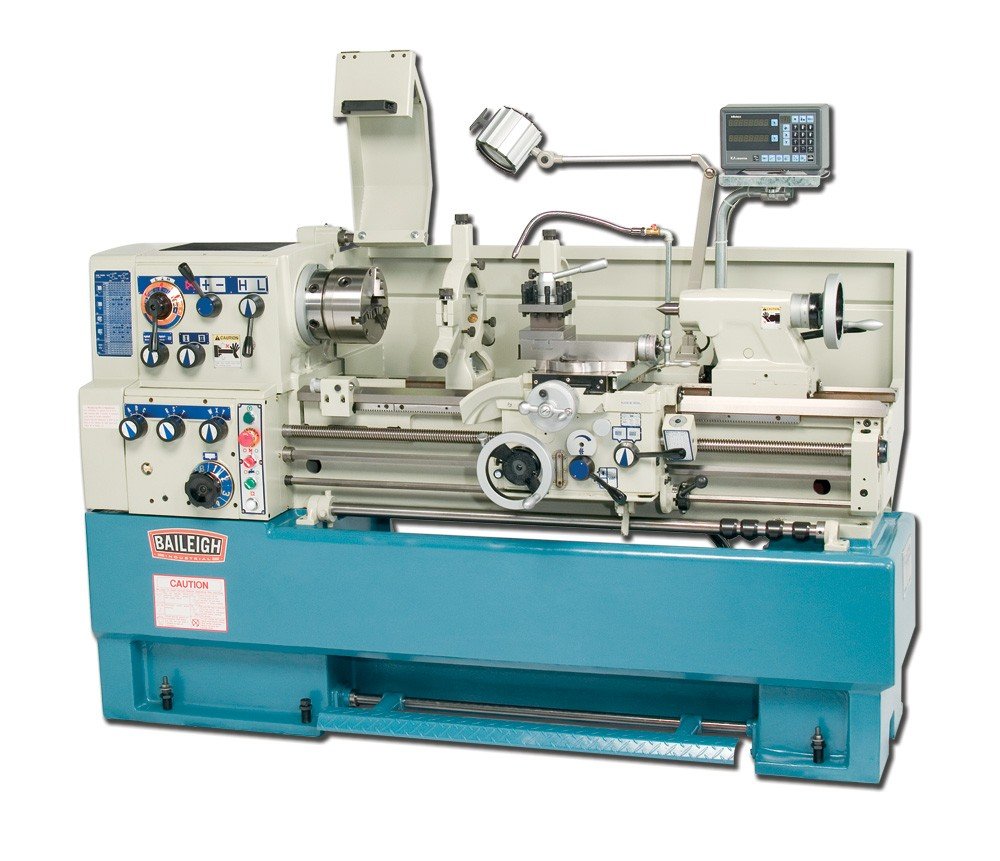

Baileigh Precision Lathe PL-1640

Baileigh Precision Lathe PL-1640 is a Baileigh Industrial product in the Lathes collection.

Product Details

• Capacity: 16" Swing Over Bed, 40" Between Centers
• 12-Step Spindle Speed
• 8"-Three-Jaw Chuck
• Integrated Cooling System
• Description
• The PL-1640 metal working lathe is the perfect combination of size and power. This precision lathe features a 16" swing and 40" between centers and has features that will allow your shop to grow for years.
• The PL-1640 is built to Baileigh industrial’s high standards and has everything that a machine shop could want. The PL-1640 has a full cast iron base that is integrated into the main frame of the lathe, making this one of the most rigid lathes on the market. It is powered by a 7.5 hp motor and can turn rpms form 30 to 2000 through its 12 speeds. The PL-1640 metal working lathe is built to withstand years of use in any metal working shop and features precision ground and hardened ways.
• The PL-1640 comes standard with a factory installed Mitutoyo DRO (digital read out) for making precise cuts, halogen light, a three jaw chuck, steady rest and follow rest. All this in one complete package.
• Speed: 30 – 2000 rpm
• Spindle Bore: 2.0625"
• Threads Diametrical Qty Speed: 32 / 4-32 D.P
• Threads Imperial Qty Speed: 40 / 2-56 T.P.I
• Threads Metric Qty Speed: 53 / .4-14 mm pitch
• Threads Module Qty Speed: 44 / .4-7 M.P
• Spindle Taper Sleeve: Morse #4
• Spindle Taper Nose: Morse #6
• Tailstock Quill Dia: 2.125"
• Tailstock Quill Taper: Morse #4
• Tailstock Quill Travel: 4.75"
• Compound Rest Width: 4.33"
• Center Length: 40"
• Center Height: 7.086"
• Compund Travel: 4.75"
• Bed Height: 12.20"
• Bed Length: 74.75"
• Bed Width: 11.81"
• Longitudinal Feeds Metric Qty System: 40 / .032 – .640 mm / rev.
• Main Motor: 7.5 HP
• Longitudinal Feeds Imperial Qty Speed: 40 / .0012" – .0252" / rev.
• Lead Screw Diameter: 1.25"
• Lead Screw Thread Pitch: 4 T.P.I
• Max. Swing in Gap Length: 6.125"
• Max. Swing Over Bed: 16"
• Max. Swing Over Cross Slide: 9.45"
• Max. Swing In Gap Dia.: 23.42"
• Cross Feeds Imperial Qty Speed: 40 / .0006" – .0126" / rev.
• Cross Feeds Metric Qty Speed: 40 / .015 – .320 mm / rev.
• Cross Slide Travel: 9"
• Cross Slide Travel: 7.08"
• Cutting Tool Max Section: .625" x .625"
• Feed Rod: .708 dia.
• Power: 220 V / 3-Phase
• Shipping Weight: 4,400 lbs.
• Shipping Dimensions: 91" x 65" x 44

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1006140
• UPC: 731325410495
• Shipping Method: LTL Freight
• Weight: 3,720 lb
• Country of Origin: Taiwan
