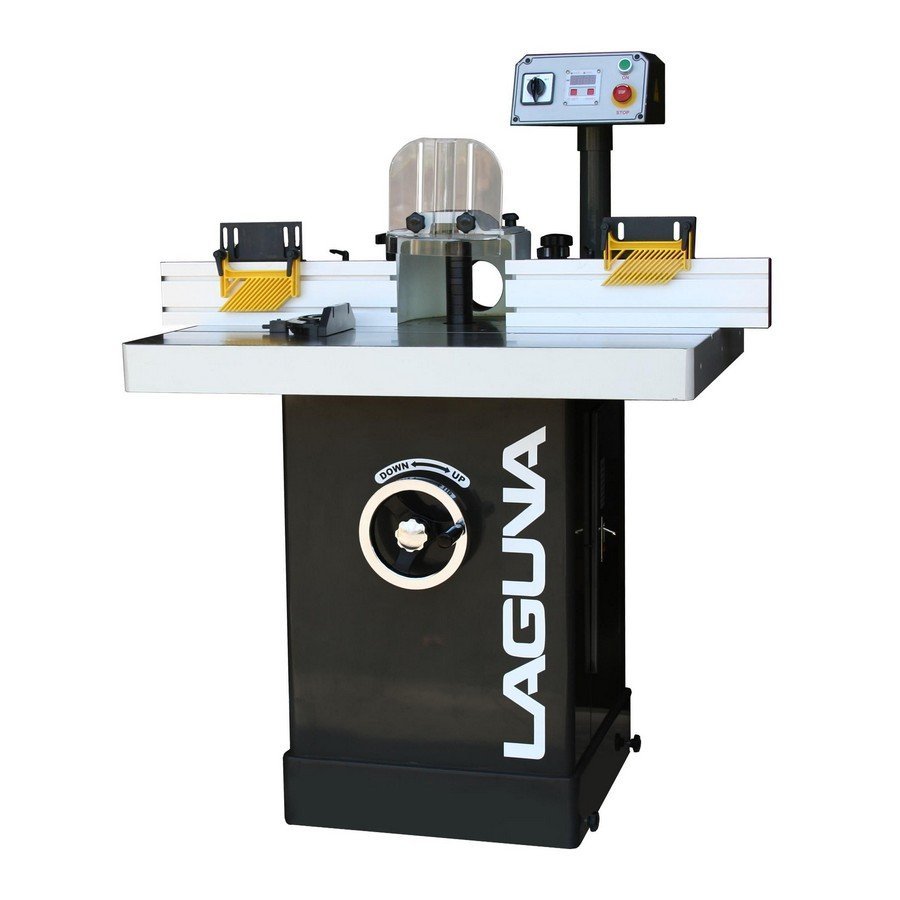

Laguna MSHAP5010-0130 Pro Shaper 220V 5HP Single Phase

Overview

Laguna MSHAP5010-0130 Pro Shaper 220V 5HP Single Phase is documented as a model-specific catalog item from Laguna Tools. The exact MSHAP5010-0130 configuration is mapped to GT Machinery Solutions SKU LTMSHAP5010-0130. Recorded technical data includes weight: 359.000 lbs. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.

Key Features

• Motor: 5HP 1 phase 220V 60 HZ
• Table size: 39-5/16″ X 31-7/16″ X 3-1/2″
• Spindle travel: 4″
• Spindle Sizes: 3/4″ and 1-1/4″
• Capacity Under Nut: 6″ (for 1-1/4″) & 4″ (for 3/4″)
• Router Collets: 1/4″ and 1/2″
• Spindle speeds: 5000 / 7000 / 10000 rpm
• Table Opening Diameter: 7-5/16″
• Digital Readout: Standard
• Direction: Forward/Reversing Switch
