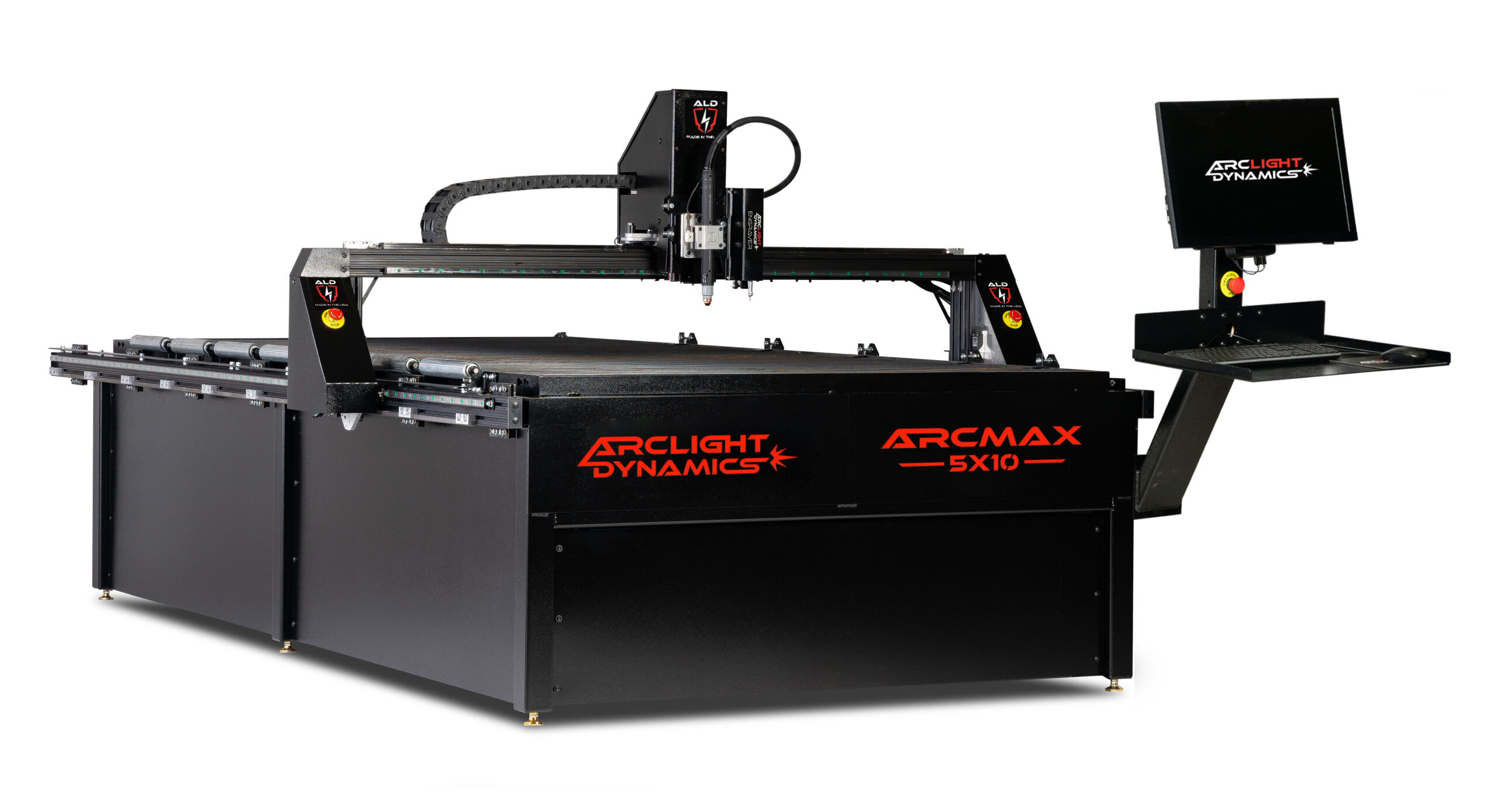

Arclight Arc Max Ultra 5×10 CNC Plasma Table With 2” Thick Mild Steel Capacity

Arclight Arc Max Ultra 5×10 CNC Plasma Table With 2” Thick Mild Steel Capacity is a Arclight Dynamics product in the CNC Plasma Tables collection.

Product Details

• Weight Capacity: 2" Thick Mild Steel
• Cutting Envelope: 62" x 124" x 6.5"
• Water Pan Capacity: 300 Gallons
• Table Power: 110V / 15-20A
• Description
• No compromise in cut capacity, quality and performance with a smaller footprint. When keeping production levels high is mission critical for your business, our no-compromise Arc Max Ultra series of CNC plasma tables are the best solution for your shop. Reliability, accuracy, and efficiency are at the foundation of the design of Arc Max Ultra series tables. All backed by dedicated lifetime support for a package that can not be beat.
• The Arc Max Ultra 5×10 is built on a welded and unitized frame of thick steel tubing. The precision designed gantry is engineered from low mass aircraft grade aluminum, providing exceptional rigidity and first-class acceleration and deceleration characteristics; most desirable in high performance CNC plasma tables. Upgrade your shop with and Arc Max Ultra CNC Plasma table today.
• Standard Performance Features
• Arclight CNC Software
• All new software designed for the Arc Max Ultra series table. Features:
• Modern, Upgraded Interface
• Intuitive Layout and Design
• Feature Packed Software. Packed with options and advanced capabilities.
• Easy Error Recovery
• Fast Forward and Rewind on Cut Path
• Add lead-in to resume cutting quickly
• Tool Adjustment On the Fly – – Dial in Cut Speed, Cut Quality, Cut Height, Torch Volts
• Auto Rip Cut – for fast remnant cutoff.
• Start Point Recovery on Power Down – Pickup where you left off quickly
• Fixture Positioning
• Plate Skew
• Run Laser on Cut Path for Dry Running.
• Welded Steel Frame
• 3″ by 3″ steel tubing
• 3/16″ thickness wall steel tubing
• Powder coated frame
• Fully welded unitized frame
• Provides a rock solid base for fast accurate cutting
• Slat surface flush with side of table with built in rollers to assist in loading plate

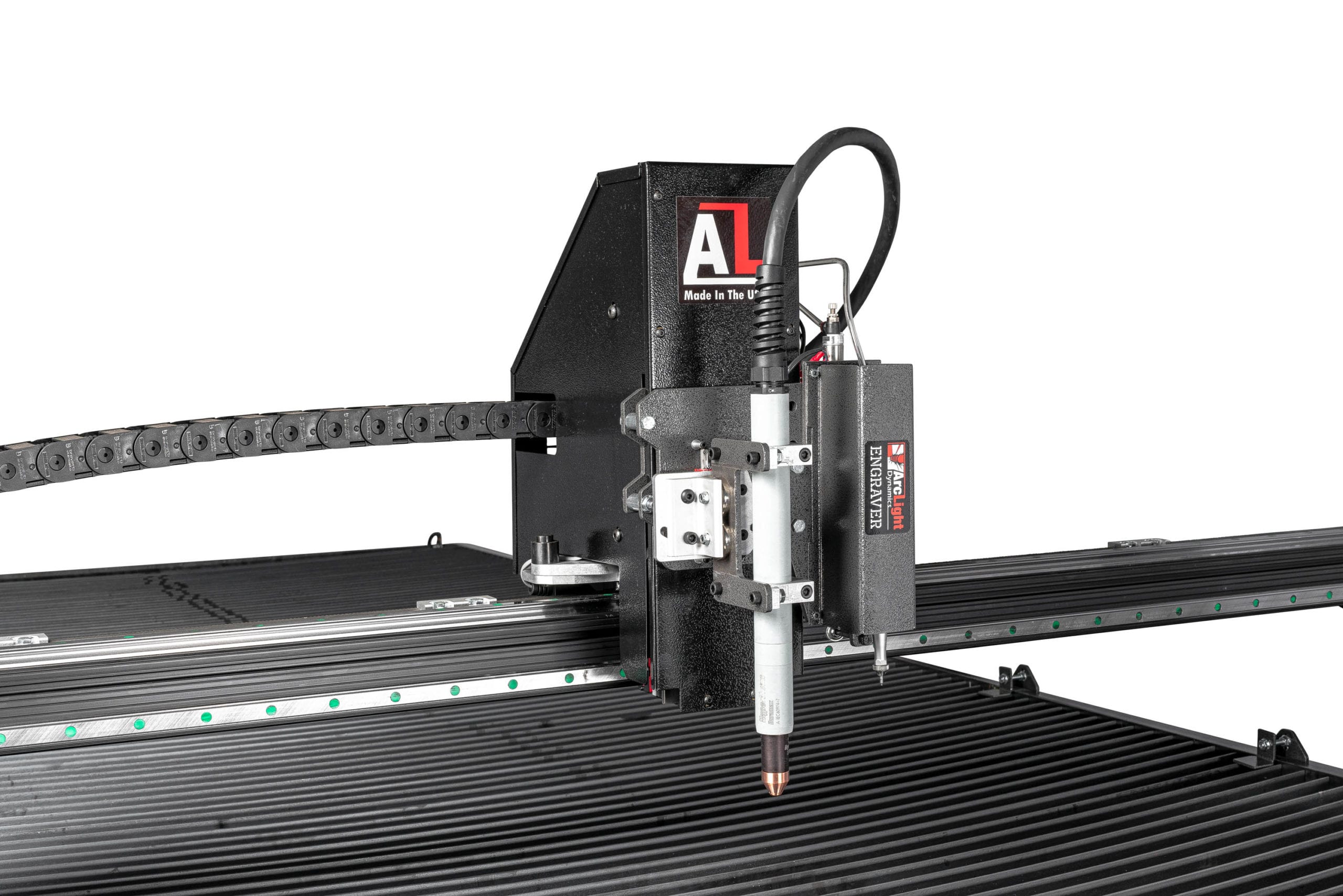

• Engineered low mass, high strength aluminum gantry
• Fast acceleration and deceleration
• Combination of High Mass Frame and Low Mass Gantry leads to excellent acceleration and deceleration qualities without vibration or noise, resulting in accurate and smooth plasma cuts.
• 8.5″ clearance
• Hiwin® Precision Linear Rails
• Hiwin® 20 mm precision linear guide rails
• Provides super smooth motion for unmatched cut quality
• Dual seals and scrapers maintain a clean guideway for longer life and the best protection available
• Advanced Control Systems
• With advanced features like corner and hole slow downs, reverse cut directions, contouring, and additional option inputs, you will achieve superior cut quality through simple programming that is easy to understand and use.
• The Arclight Plasma system allows for complete control of the cut: pause, fast forward, rewind and re-cut any part, virtually eliminating steel/materials waste. Their Computer Numerated Control (CNC) system provides a simple ‘click of the button’ control and operation or can operate with complex sophistication using personally generated g-code. CNC features that competitors just don’t offer.
• Preloaded with Hypertherm cut charts and toolsets
• Ethernet based communications, for more reliable faster performance.
• Industrial Linux software for reliability and ease of use
• Torch Height Control with blazing fast response
• Dynamic Voltage Sampling
• Extra Deep Water Table
• 8 1/2″ deep 12g steel water pan
• Expanded metal barrier to catch small parts
• Reduces thermal distortion
• Longer runtime before annual cleaning
• Captures 90% of smoke and dust reducing airborne contaminants
• Cools parts quickly for immediate inspection
• Reduces heat affected zone
• Twin 1.25″ ball valve drains
• Specifications
• Overall Dimensions: 88” x 143” x 60”
• Frame: Fully Welded Steel
• Positioning Accuracy: .001"
• Dimensions At Base: 70" X 133"
• Overall Weight: 2350 Pounds
• Plasma Cutter: Not Included, Sold Separately
• Available Options & Accessories
• Plasma Cutter Hypertherm Powermax 45XP Hypertherm Powermax 65 SYNC Hypertherm Powermax 85 SYNC Hypertherm Powermax 105 SYNC Hypertherm Powermax 125
• Hypertherm Powermax 45XP
• Hypertherm Powermax 65 SYNC
• Hypertherm Powermax 85 SYNC
• Hypertherm Powermax 105 SYNC
• Hypertherm Powermax 125
• Collision Detection and Bevel Cutting System
• Dynamic Water Control
• Laser Torch Locator
• Tsunami Regenerative Air Dryer System
• Air Filtration
• Touch Screen Monitor
• Mobile Cabinet
• Plasma Rover
• Cabinet Cover
• Green Guard Rust Blocker
• Plate Engraver
• Pipe Cutter
• Router Kit
• Auto Tracer
• Logic Board Digitizing System (44" x 60")
• *PLASMA CUTTERS SOLD SEPERATLY

Specifications

• Manufacturer: Arclight Dynamics
• SKU: Arc Max Ultra 5 x 10
• Shipping Method: LTL Freight
• Weight: 2,350 lb
• Dimensions: 88 × 143 × 60 in
• Country of Origin: United States of America
• Warranty Details: 3 years for CommandCNC-based (Standard) Systems, 1 year for Flashcut-based (Elite and Unlimited) Systems
