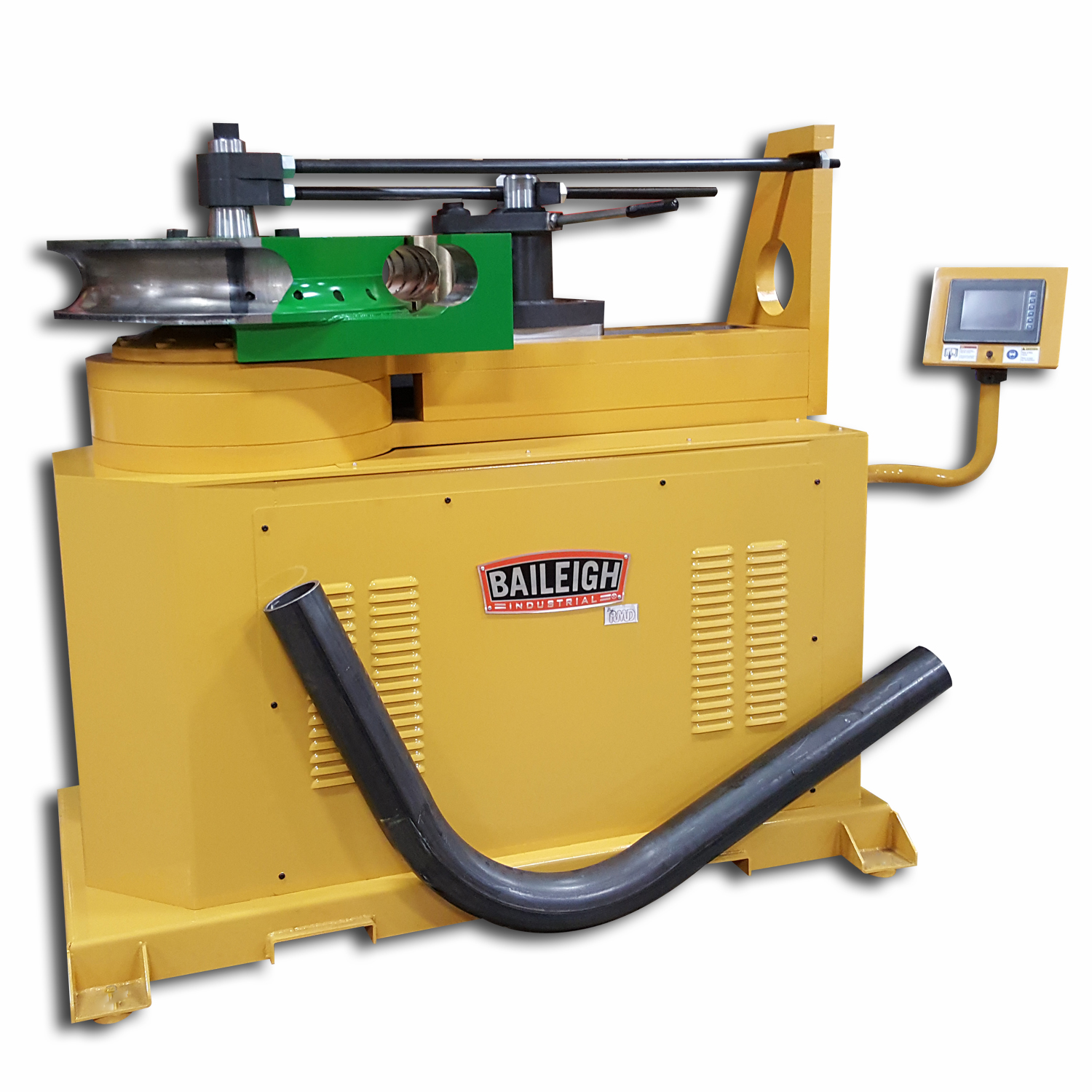

Baileigh Industrial 10HP 220V Three Phase Pipe Bender with Touch Screen Programmer RDB-480 1013936
$76,662.06Current price is: $76,662.06.
- Mild Steel Pipe Schedule 80: 4"
- Mild Steel Round Tube Wall: 5" x 0.083"
- Degree of Bend (Max): 17212
- Minimum CLR: 6"
Baileigh Industrial 10HP 220V Three Phase Pipe Bender with Touch Screen Programmer RDB-480 1013936 is a Baileigh Industrial product in the Tube & Pipe Benders collection.
Product Details
- Mild Steel Pipe Schedule 80: 4"
- Mild Steel Round Tube Wall: 5" x 0.083"
- Degree of Bend (Max): 17212
- Minimum CLR: 6"
- Description
- This programmable pipe bender shapes material at blistering speeds with professional accuracy. Made in the USA, the RDB-480 pipe bender for sale will revolutionize the efficiency of your fabrication shop.
- Why choose Baileigh’s RDB-480 Tube Bender over competing machines?
- Cuts down on time and effort for repeat projects by storing complex bend specifications as programs.
- Reduces delays with extremely fast automatic bending.
- You can rely on after-sale support and project advice from Baileigh’s experienced team—just a phone call away—for as long as you’re using the RDB-480.
- Accommodates a wide range of tooling, available from Baileigh, to suit almost any application.
- Features
- Runs on 220 volt three-phase power.
- Tackles heavy-duty materials, bending up to 5” tubing and 4” schedule 80 pipe.
- Rotary draw bender smoothly executes 180° bends in just 20 seconds and can complete up to 360° bends.
- Stores up to 170 programs of 10 bends each in its internal memory and accepts limitless external memory.

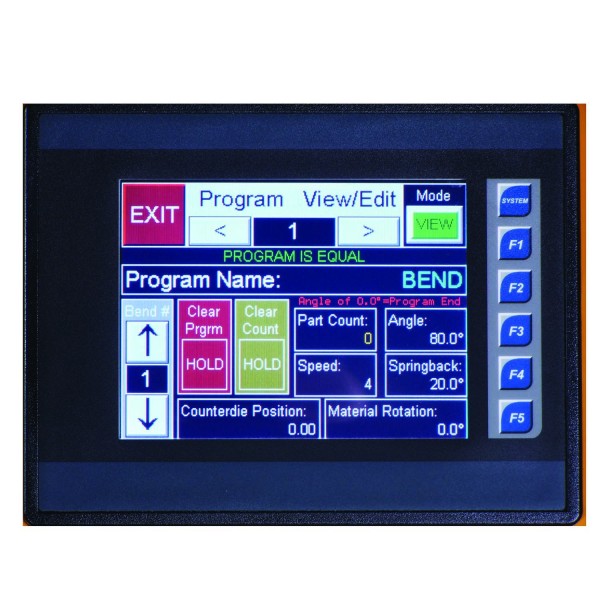

- Easy-to-use touchscreen or handy foot pedal can both operate the bender, when not in manual mode.
- 2-piece die mount loosens to release bent tubing without a hassle.
- Covered by a 1-year parts warranty and lifetime technical support.
- Specifications
- Item Number: RDB-480
- Country of Manufacture: United States
- Motor Hp: 10hp
- Minimum OD: 2.5"
- Maximum Speed to 180°: 25 Sec.
- Bend Direction: Clockwise
- Max. Clr: 28"
- Power: 220 Volt Three Phase
- Shipping Weight: 7000 lbs.
- Things to Know Before Purchase: All capacities based on A53 grade A (mild steel) 48,000 psi tensile materials; heavy wall and high tensile materials may reduce machine capacity. Consult Baileigh Industrial to review material specifications.
- Shipping Dimensions (L x W x H): 60" x 44" x 68"
Specifications
- Manufacturer: Baileigh Industrial
- SKU: BA9-RDB480220
- UPC: 731325091687
- Shipping Method: LTL Freight
- Weight: 7,100 lb
- Dimensions: 65 × 49 × 73 in
- Country of Origin: United States of America
- Warranty: 1 Year (Parts)
| Weight | 7100.0 lbs |
|---|---|
| Dimensions | 65.0 × 49.0 × 73.0 in |
| Brand | Baileigh Industrial |
