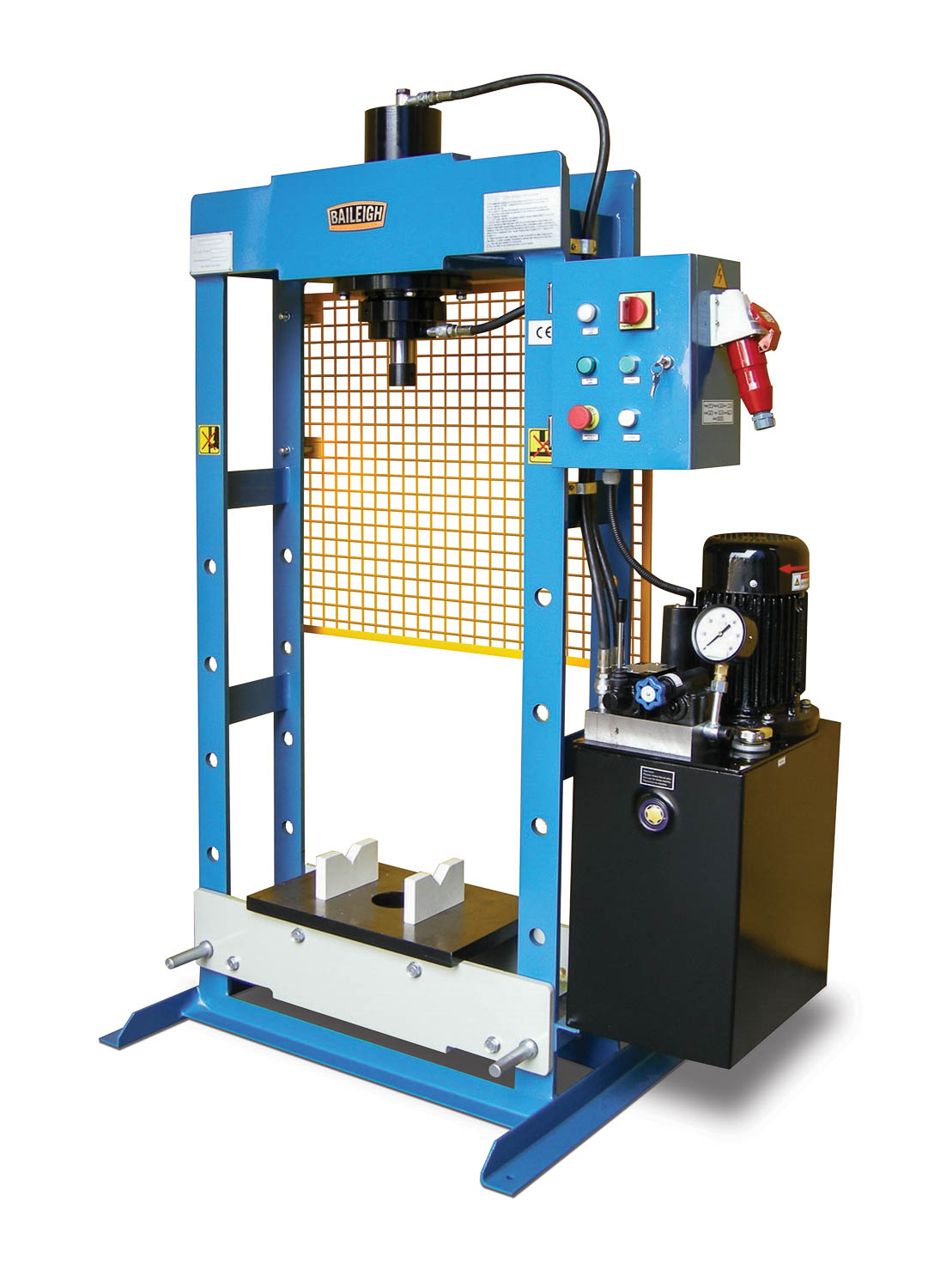

Baileigh Industrial 3HP 220V Single Phase 30 Ton Hydraulic H-Frame Press HSP-30M 1012401
$7,305.73Current price is: $7,305.73.
- Maximum Capacity: 30 ton
- Working Speed: 0.197" / sec.
- Working Width: 27.5"
- Piston Head Diameter: 2"
Baileigh Industrial 3HP 220V Single Phase 30 Ton Hydraulic H-Frame Press HSP-30M 1012401 is a Baileigh Industrial product in the Hydraulic Presses collection.
Product Details
- Maximum Capacity: 30 ton
- Working Speed: 0.197" / sec.
- Working Width: 27.5"
- Piston Head Diameter: 2"
- Description
- With its sturdy plate steel construction and piston-style hydraulic pump, this 30-ton hydraulic press for sale offers one of the best values on the market.
- *This model is a Scratch and Dent version with minor paint damage only. Operates as normal but can be sold as new, Baileigh’s loss is your gain!
- Features
- 30-ton capacity hydraulic press.
- 27.5” working width.
- 5.74” diameter cylinder with 9.8” stroke.
- 3 hp motor runs on 200-volt single-phase power.

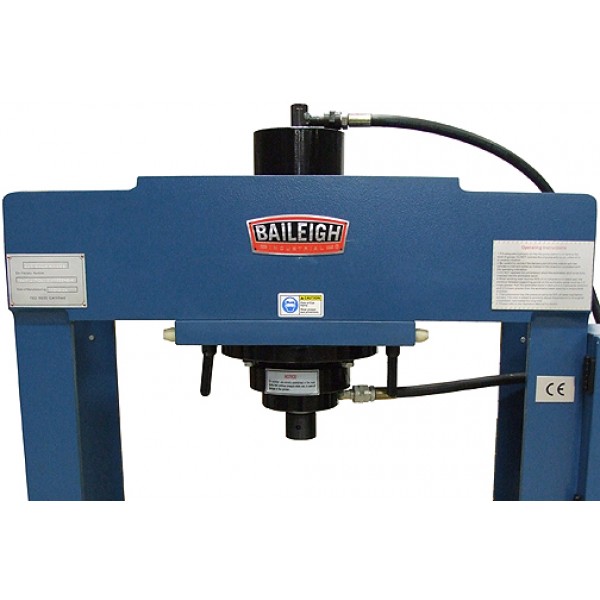

- Cylinder can move left and right within the frame to deliver pressure at the point where you need it for off-center projects.
- Comes standard with a pressure gauge.
- Includes 2-piece V-block.
- Fully-welded steel frame enables you to use the machine’s force at full capacity without worrying about flexing.
- Baileigh covers this hydraulic shop press with a 1-year parts warranty as well as lifetime technical support by phone.
- Specifications
- Item Number: HSP-30M
- Return Speed: 0.25" / sec.
- Motor: 3 hp
- Pump Speed: 0.95 gal/min
- Oil Capacity: 13 gal.
- Included Accessories: Included Accessories
- Cylinder Stroke: 9.8"
- Cylinder Movable: Yes
- Cylinder Diameter: 5.74"
- RPM: 1440
- Distance from Table to Ram: Min. 9.84" – Max. 41.34"
- Power: 220 Volt Single Phase
- Shipping Weight: 1,060 lbs.
- Things to Know Before Purchase: These Presses are considered Scratch & Dent and have minor paint scrapes, for more information please call a sales representative
- Shipping Dimensions (L x W x H): 60” x 48” x 82”
Specifications
- Manufacturer: Baileigh Industrial
- SKU: BA9-1012401
- UPC: 731325119725
- Shipping Method: LTL Freight
- Weight: 1,060 lb
- Dimensions: 60 × 48 × 82 in
- Warranty: 1 Year (Parts)
