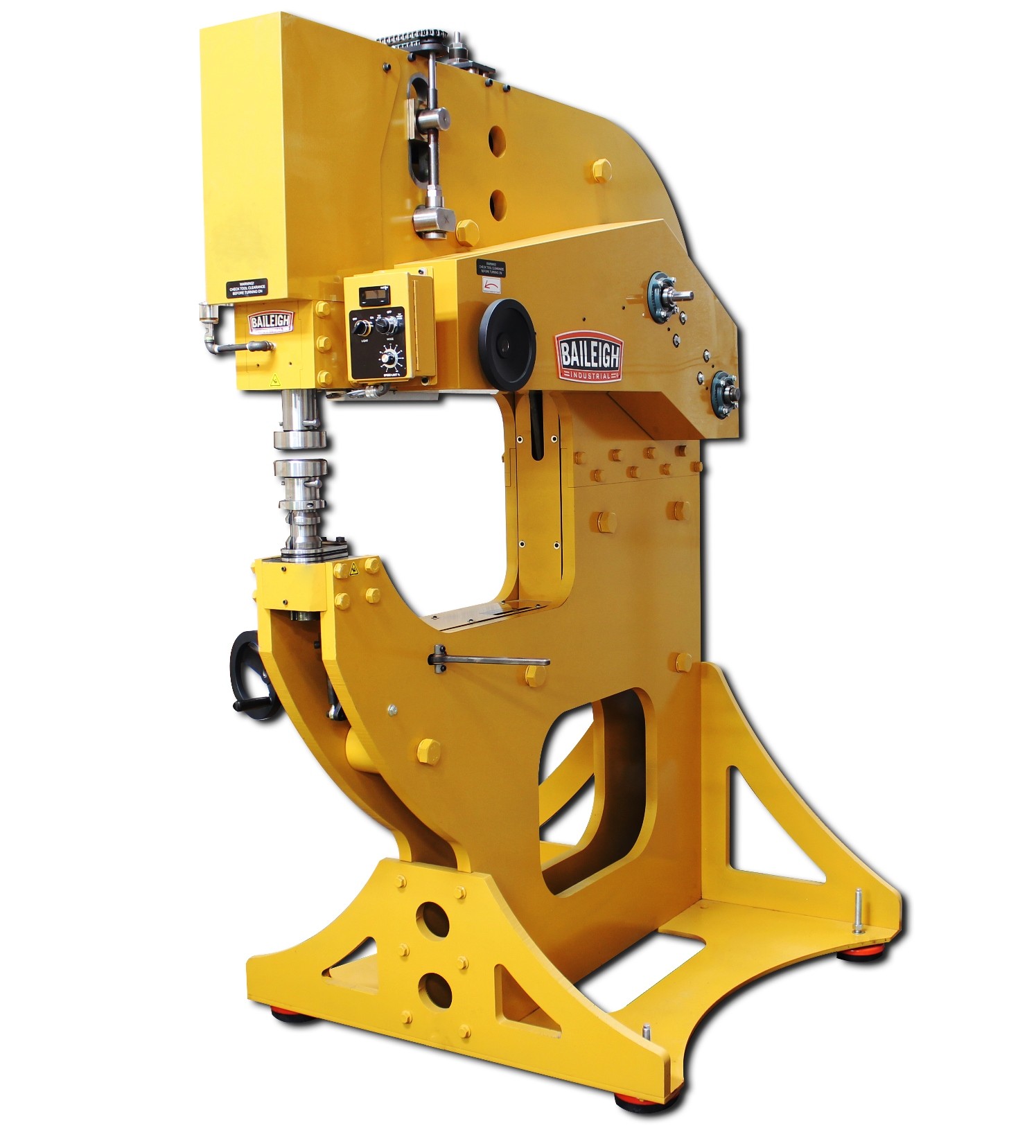

Baileigh Power Hammer MH-37HD

Baileigh Power Hammer MH-37HD is a Baileigh Industrial product in the Metal Forming & Shaping collection.

Product Details

• 5 HP Motor
• 16 ga. Mild Steel Capacity
• Quick Release Lower Die Anvil
• A do it all machine
• The MH-37HD power hammer from Baileigh Industrial takes metal shaping to new heights. This monster is truly a do it all machine. We have taken all the knowledge we have gathered from the MH-19 and uped the capacities. The MH in MH-37HD stands for multi-hammer because if does multiple things, but unlike other combination machines that you see, the MH-37HD does them better than all of the stand alone machines. There truly is nothing that this machine can’t do. The MH-37HD power hammer is a 220 volt Three phase machine has the ability to transform itself from a rigid style like a Pullmax® style machine, to a spring slapping style like a Yoder® style machine.
• When operating in the rigid mode, there is no "give" between the die heads. Used for short stroke shaping, flanging. Tooling designs and profiles are endless, but some of the options are mechanical shrinking, stretching dies, flanging dies, and louvers.
• The spring setup with "Throw the die" causing a dead blow hammering effect. When in this mode the total amount of pressure applied when the dies hit the metal is increase exponentially. This mode would be used for aggressive shrinking and planishing, many different tooling profiles can be used.
• The MH-37HD uses an inverter to obtain various speeds for operation. Speeds range from 0 to 1500 beats per minute, speed is adjusted one of two ways; either with the operator controlled foot pedal or on the operator panel where he/she can lock in their speed. Another key feature of the MH-37HD power hammer is “on the fly" stroke adjustments. These stroke adjustments range from 0.1" to .750".
• FEATURES
• VARIABLE FOOT SPEED CONTROL WITH ADJUSTABLE LIMIT CAPACITY (RATED BY SHRINKING ABILITY) 1/8 STEEL / 1/4" SOFT ALUM. REPLACEABLE MAIN HAMMERING SPRINGS POWER HAMMER MODE AND RIGID MODE VIA SHEAR PIN QUICK RELEASE DIE CHANGES QUICK RELEASE LOWER DIE ANVIL WORK LIGHT INCLUDED TOOLING
• LARGE SHRINK DIE SET FLAT TOP MASTER DIE 1.0 X 6.0 PLANNISH DIE 36.0R DIE 24.0R DIE 12.0R DIE LINEAR STRETCH DIE
• Motor Hp: 5 HP
• Speed: 0 – 1500 beats / minute
• Mild Steel Capacity: 16 ga.
• Tooling Height Adjustment: 2"
• Throat Depth: 37"
• Capacity (Mild Steel): .125"
• Aluminum Capacity: .250" Soft
• Length of Stroke Adj.: 0.1" 0 0.75"
• Power: 220V / 3-phase
• Shipping Weight: 6000 lbs.
• Shipping Dimensions: 72" x 60" x 90"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-MH37HD
• UPC: 19907536185
• Shipping Method: Flatbed
• Weight: 5,500 lb
• Dimensions: 72 × 60 × 90 in
• Country of Origin: United States of America
