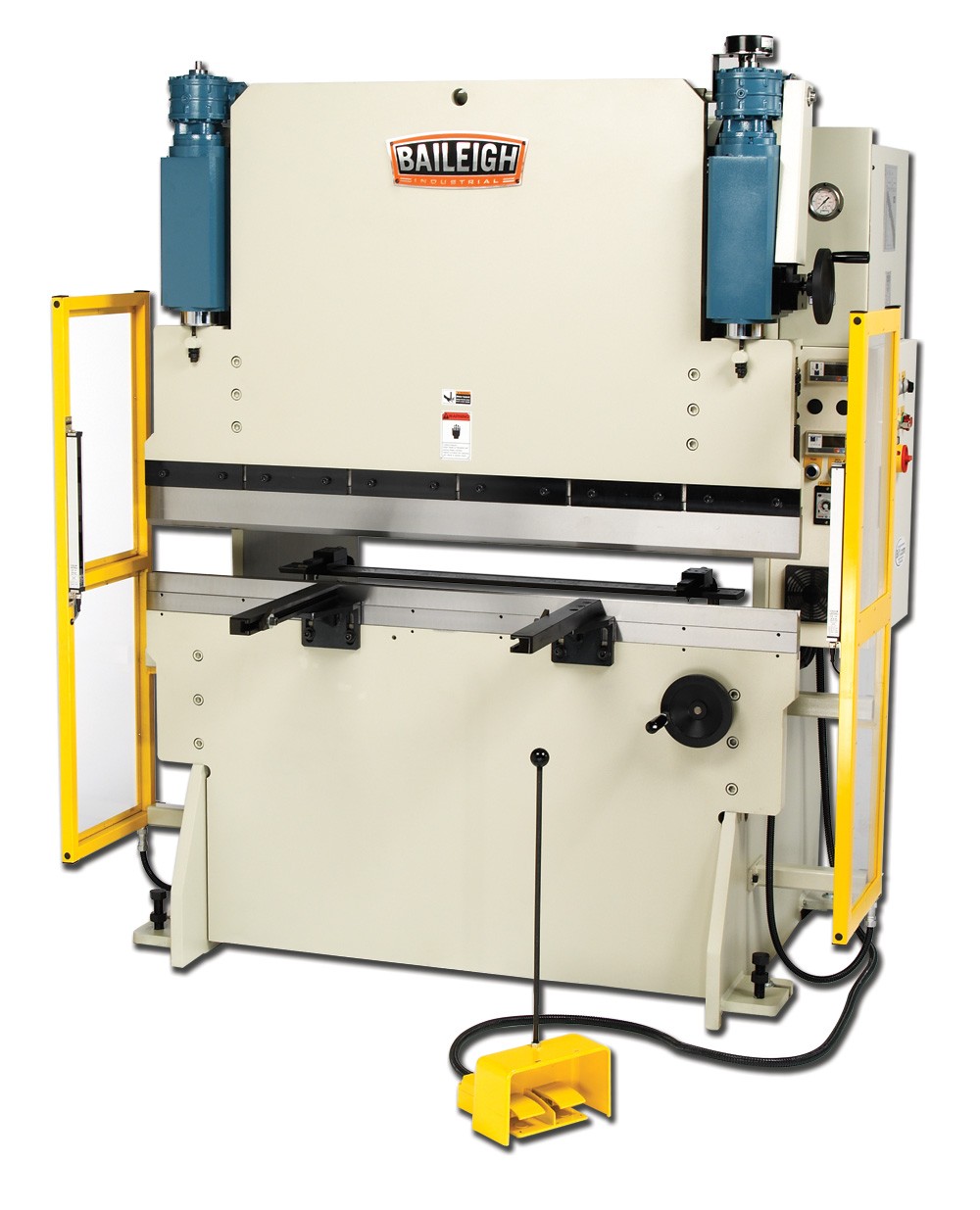

Baileigh Press Brake BP-3360NC

Baileigh Press Brake BP-3360NC is a Baileigh Industrial product in the Press Brakes collection.

Product Details

• Electric Back Gauge With Manual Micrometer Adjustment Standard
• Extra-Wide Guideways For Exceptional Rigidity
• Adjustable 2-Step Downward Travel For Higher Productivity
• Oversized Hydraulic Tank With High-Performance Pump Smooths And Stabilizes Oil Flow
• Baileigh Industrial’s BP-3360 NC hydraulic brake press has a very heavy electro welded frame of solid plate steel making this a very rigid machine that runs so smoothly in production. To aid with rigidity the beam is stabilized by 3 axis bearings sliding on several extremely hardened stabilization tracks and is further stabilized by a unique parallel mechanism. All of this attention to detail assures high accuracy between both dies at any position of the stroke. This precise sheet metal bender is a two axis NC machine where positioning of the upper beam and back gauge can be fine tuned and whose position is via encoder controls. The top beam uses two precise hydraulic cylinders that are coupled to an encoder to measure their exact position. The position of the downward stroke is illuminated on the DRO (digital readout). This means you can accurately fine tune a sheet metal bend and make it perfect every time. The motorized back gauge rides on a solid ball screw trolley mechanism and its position is being read by an encoder whose displaying its whereabouts on a separate DRO. Fine tuning of both the beam and back gauge are by separate hand wheels. This means is that this is an extremely accurate hydraulic brake pressacross the entire width of the beam. This machine can be run in three modes. The first is the jog mode which is exclusively meant for set up. The second is manual where the operator may wish to have more control over the decent and return of the beam in production. The final is automatic which is for full production. Standard on all Baileigh Industrial brake presses, this one comes with foot pedal controls, front material rests, safety guards with a 6 light safety curtain, and a set of hardened single-Vee tooling. Typically this machine is in stock and can ship in 72 hours.
• Gauge Length: 23.62"
• Return Speed: 2.36" / Sec.
• Maximum Pressure: 33 Tons
• Oil Capacity: 24 Gal.
• Bending Capacity Max Length / Max Thickness: 61" / .078"
• Approach Speed: 3.14" / Sec.
• Back Gauge Motor: 1/2 HP
• Bending Speed: .275" / Sec.
• Main Motor: 3 HP
• Distance Between Housings: 49.21"
• Distance From Table To Ram: 9.84"
• Power: 220V / 3-Phase
• Shipping Weight: 3,300 lbs.
• Shipping Dimensions: 67" x 47.5" x 80.75"

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1000803
• UPC: 731325394436
• Shipping Method: LTL Freight
• Weight: 5,450 lb
• Country of Origin: Taiwan
