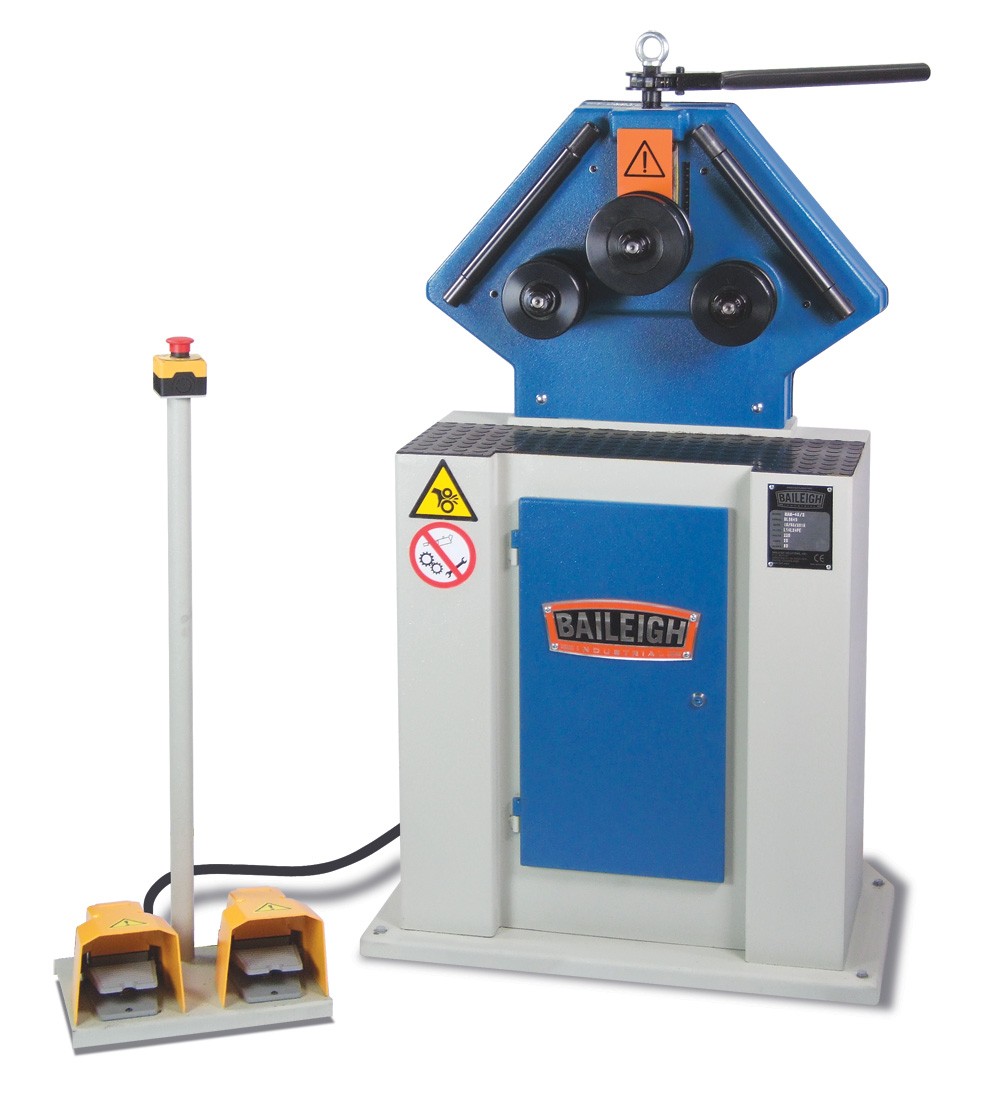

Baileigh R-M40 220V Single Phase Ring Roll Bender BA9-1006852

Baileigh R-M40 220V Single Phase Ring Roll Bender BA9-1006852 is a Baileigh Industrial product in the Roll Benders collection.

Product Details

• Pipe Capacity: 1.5" (sch. 40) / Min. Dia.: 28"
• Round Tube Capacity: 2" (0.078") / Min. Dia.: 27.55"
• Square Tube Capacity: 1.5" (0.078") / Min. Dia.: 39"
• Solid Round Capacity: 1.375" / Min. Dia.: 24"
• Description
• This versatile metal ring roller makes a strong starter tube roll and ring roll machine for any fabricator looking to dive into profile bending. Order this industrial ring rolling machine for sale.
• Use this metal ring roller for: Coiling tubing, hay hoops, metal art, stair railings, and many other applications.
• Why choose the R-M40 over similar ring roll machines?
• You won’t find many roll benders built to the same rugged standards as the R-M40. The steel plate construction of this tube roller maintains accuracy and minimizes flex.
• We stock a wide range of optional tooling for tubing and pipe, as well as other profiles.
• You can call Baileigh’s team of knowledgeable reps for troubleshooting and free project advice for as long as you’re using the R-M40 ring rolling machine.
• Features
• 220-volt single-phase motor can run at almost any site in North America.
• 2" round tube and 1.5" schedule 40 pipe maximum capacity.

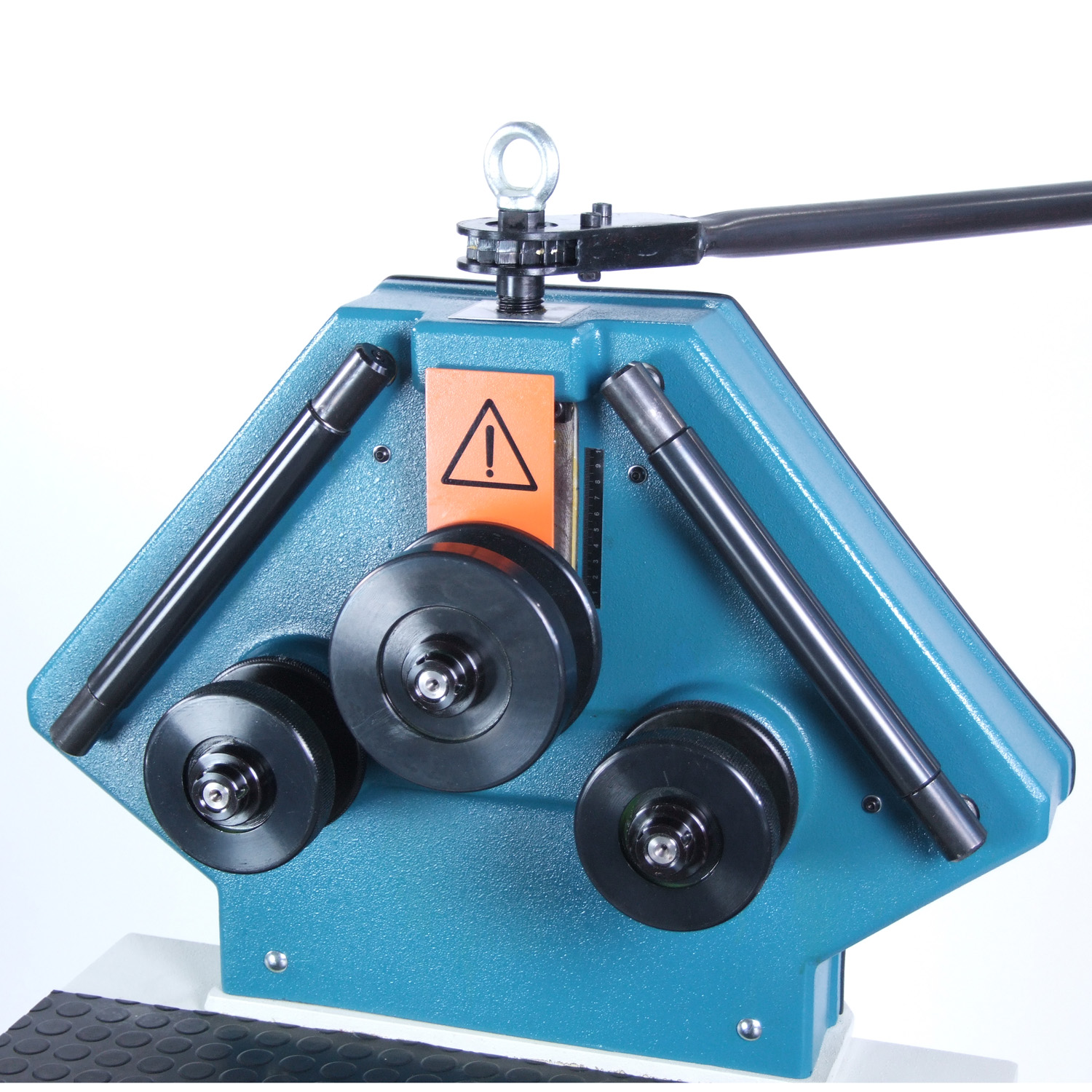

• Ratchet-style manual top shaft allows you to adjust forming pressure.
• Variable-speed inverter drives and industrial-grade transmission provide delicate control over material.

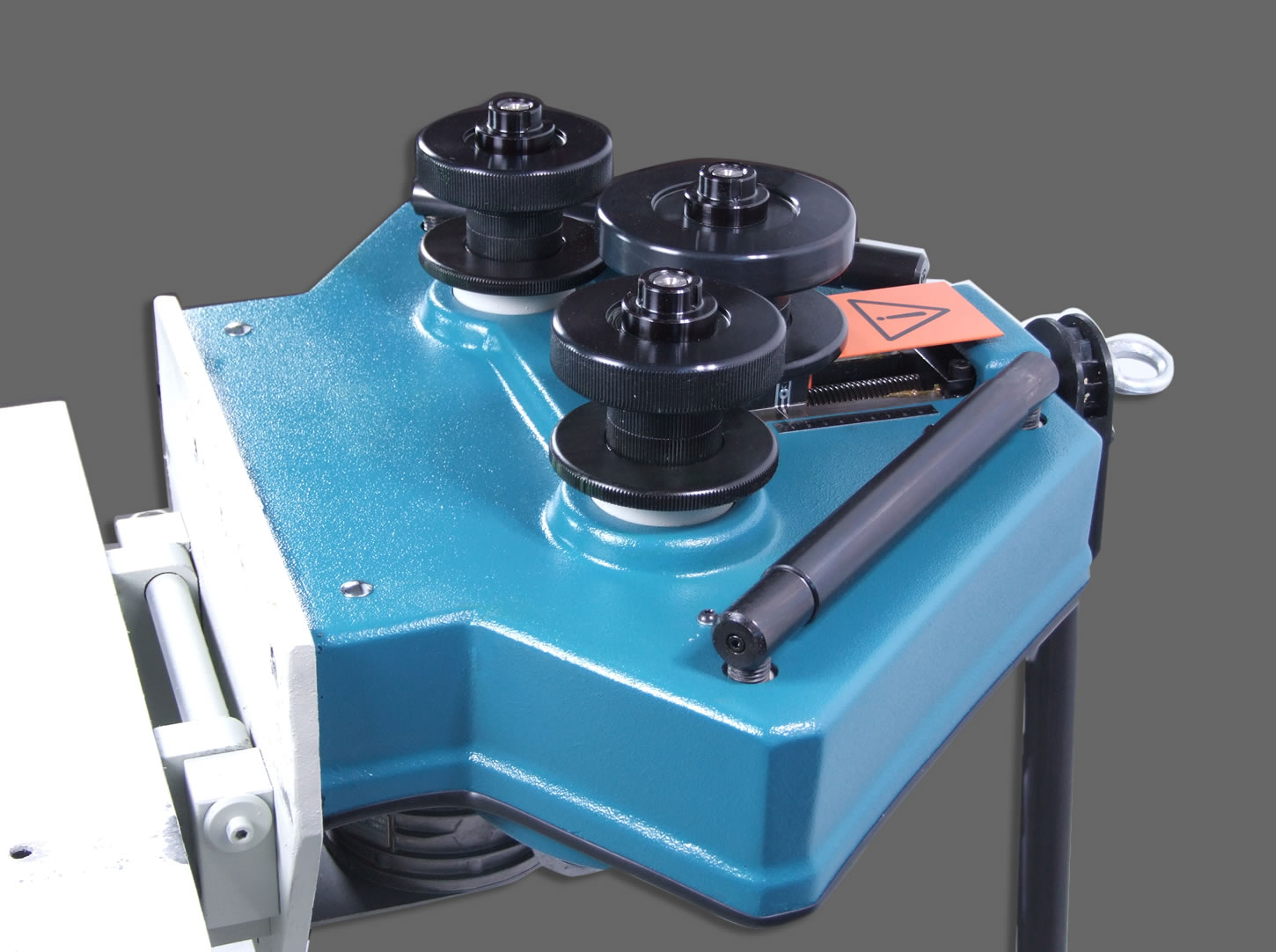

• Executes bends in upright or horizontal positions, to accommodate a range of material lengths.
• Sturdy base opens into a storage cabinet for tooling and other options.
• Comes standard with a set of segment rolls that can be used for bending flat bar, solid rod, and some square applications.
• Manufactured from heavy steel plate to extend machine’s lifetime of use.
• Baileigh covers this tubing roller with a 1-year warranty and lifetime technical support by phone.
• Specifications
• Item Number: R-M40
• Roll Adjustment: Manual
• Flat Bar Easy Way: 3" (0.5") / Min. Dia.: 15.75"
• Flat Bar Hard Way: 2.25" (0.375") / Min. Dia.: 20"
• Angle Iron Capacity: 1.5" (0.157") / Min. Dia.: 22"
• Shaft Diameter: 1.181"
• Shaft Center Distance Lower Rolls: 10.88"
• Lower Roll Dia.: 5.118"
• Pinch: Single
• Power: 220V Single Phase
• Shipping Weight: 550 lbs.
• Material Type: All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
• *Optional Tooling: Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
• Shipping Dimensions: 60” x 44” x 77”

Specifications

• Manufacturer: Baileigh Industrial
• SKU: BA9-1006852
• UPC: 19907415763
• Shipping Method: LTL Freight
• Weight: 600 lb
• Dimensions: 60 × 44 × 77 in
• Country of Origin: Portugal
• Warranty: 1 Year (Parts)
