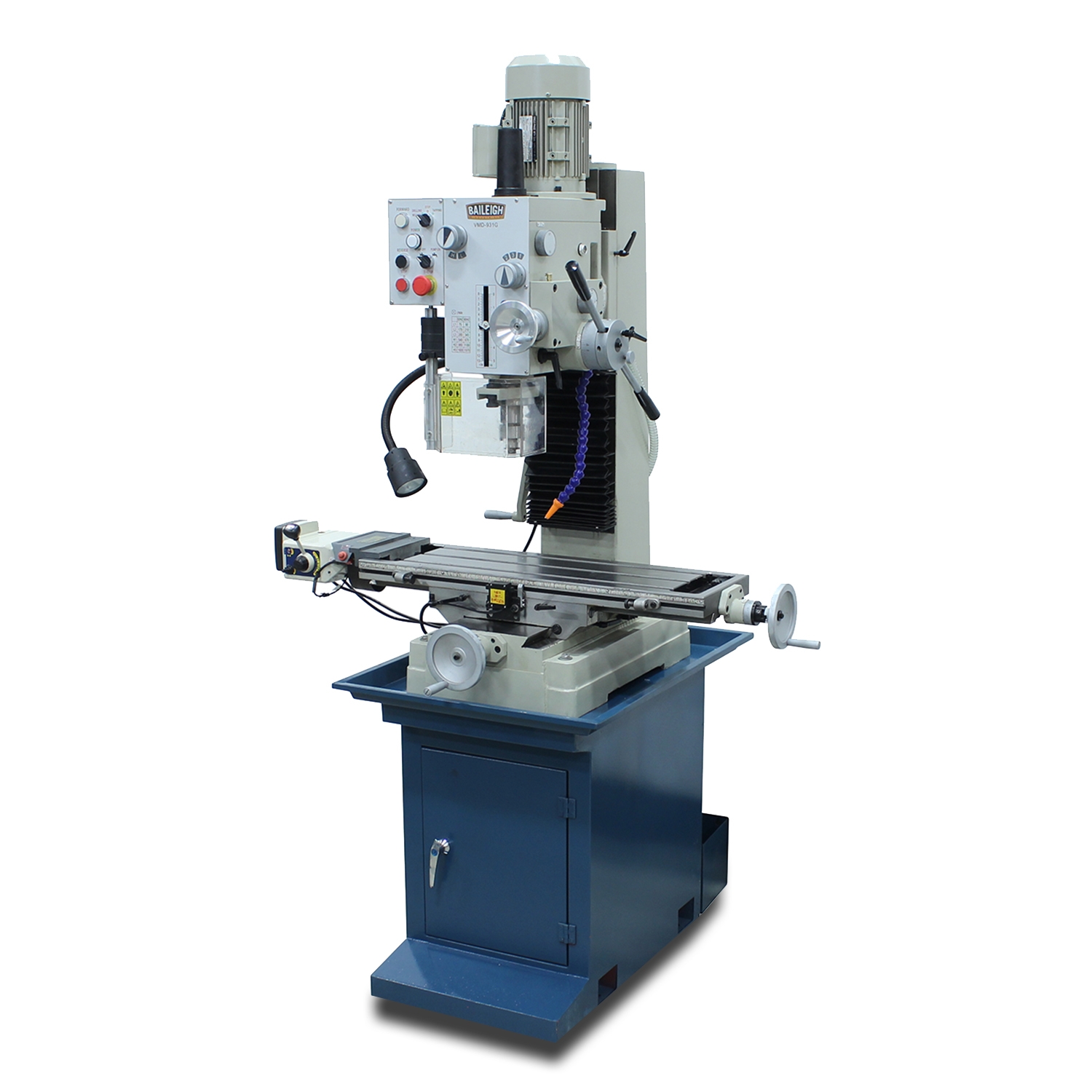

Baileigh Vertical Mill Drill VMD-931G
$5,955.73Current price is: $5,955.73.
- Head Miter 90º Left and Right
- Motor 2 hp
- X Axis Travel 22"
- Y Axis Travel 7.48"
Baileigh Vertical Mill Drill VMD-931G is a Baileigh Industrial product in the Mill Drills collection.
Product Details
- Head Miter 90º Left and Right
- Motor 2 hp
- X Axis Travel 22"
- Y Axis Travel 7.48"
- Description
- Ever wish you had a milling table on your drill press? That’s why we came up with the VMD-931G. Unlike most milling machine-drill combinations, this multi-functional vertical mill drill lets you select the right speed to suit your application and cut down on tooling wear and tear.
- 2 hp motor runs on 110 volt single-phase power, optimal for any shop, garage, or educational institution.
- 1.75” maximum drilling capacity.
- 31.5” x 9.45” milling-style table enables you to tackle a wider variety of projects (with the right tooling).
- Table incorporates an X-axis power feed to make those longer cuts accurately.
- Gear-driven head swivels 90° left and right.
- You can choose from 6 speeds to accommodate each mill, drill or tap size available: 90, 210, 345, 670, 1180, 1970 rpm.
- Wide steel column houses power-Z lift system and eliminates flex when you’re milling or drilling at full capacity.
- Heavy-duty base, made from a rigid iron casting, adds to the machine’s strength and minimizes vibrations.
- Comes standard with a coolant system, R8 spindle taper, and a flexible halogen light.
- Covered by a 1-year warranty and lifetime technical support by phone from our team of knowledgeable reps.
- Recommended for: Milling, drilling, tapping, boring, and reaming sheet metal.
- Specifications
- Item Number VMD-931G
- Table Size 31.5" x 9.45"
- Spindle Nose to Table 17.32"
- Spindle Speed 90,210,345,670,1180,1970 RPM
- Spindle Stroke 4.75"
- Spindle Taper R8
- T Slots .55"
- Coolant Pump 1/8 hp
- End Mill Size 1.25" Max
- Power 110V
- Shipping Weight 710 lbs
- Drill Capacity 1.5"
- Spindle Travel 4.75"
- Shipping Dimensions 69” x 44” 70”
Specifications
- Manufacturer: Baileigh Industrial
- SKU: BA9-1020693
- UPC: 19907768654
- Shipping Method: LTL Freight
- Weight: 815 lb
- Dimensions: 69 × 44 × 70 in
- Country of Origin: China
| Weight | 815.0 lbs |
|---|---|
| Dimensions | 69.0 × 44.0 × 70.0 in |
| Brand | Baileigh Industrial |
