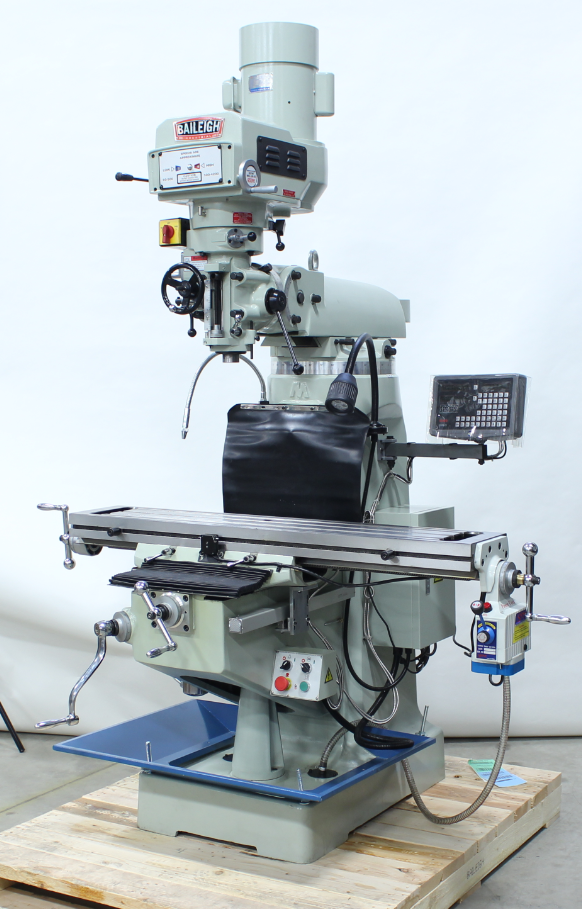

Baileigh Vertical Mill VM-949E-VS
$13,791.34Current price is: $13,791.34.
- Spindle Speeds 60 – 4,200RPM Infinitely Variable
- Distance from Spindle to Table 18.5"
- Spindle Travel 4.9"
- Spindle Speed Range 60 to 4200 RPM
Baileigh Vertical Mill VM-949E-VS is a Baileigh Industrial product in the Milling Machines collection.
Product Details
- Spindle Speeds 60 – 4,200RPM Infinitely Variable
- Distance from Spindle to Table 18.5"
- Spindle Travel 4.9"
- Spindle Speed Range 60 to 4200 RPM
- Description
- Looking to take the next step from a mill-drill or step pulley mill? Take a look at the Baileigh Industrial VM-949E-VS. This 9×49 workhorse is outfitted with a 3HP continuous duty motor requiring only 220V single phase power, making it perfect for hobbyists, small shops, and professionals alike. This knee mill has a familiar old-school feel, while having many creature comforts not typically found in this market range. These features and standard accessories include:
- Variable spindle speed by adjustable sheaves/pulleys – Control spindle RPM with the turn of a handle
- Infinitely adjustable variable speed from 60 to 4,200rpm – Allows tooling to run at its intended speed, resulted in longer tool life and better finishes
- R8 spindle and drawbar – Accepts the most common tooling
- Meehanite® Casting – Rigid and dependable for decades of use
- Spindle brake – Easier tool changes and quick spindle stops
- 3 speed power quill feed w/ manual wheel – Perfect for boring and accurate, consistent work
- DRO for X and Y axes
- Power feed X axis w/ rapid – Consistent travel speed without tiresome cranking
- Dovetail ways w/ adjustable gibs – Keep tolerances tight year after year
- Taiwan lead screws w/ backlash adjustable nuts – Remove backlash instead of compensating for it
- Way covers and wipers – Keep chips off ways and bed
- Integrated coolant system w/ splash guard – Large 6-gallon reservoir in the base houses the pump. Plumbed return line from the table eliminates overflow and messes
- LED work light
- One-shot lubricator – Keep up on lubrication maintenance by simply pulling a lever
- Specifications
- Spindle Feeds .003" .0015" .008"
- Power Feed x and Y axis
- Table Size 9" x 49"
- Range of Movement 90° Left and Right, 45° Front and Back
- Spindle Diameter 3.3"
- Motor 3 hp
- X Axis Travel 31-5/8""
- Y Axis Travel 11-a3/16"
- Z Axis Travel 13-3/4"
- Spindle Taper R8
- T Slots .625"
- Power 220V / 1-phase
- Shipping Weight 1820 Lbs.
- Drill Capacity 2"
- Shipping Dimensions 49" x 44" x 84"
Specifications
- Manufacturer: Baileigh Industrial
- SKU: BA9-1019108
- UPC: 731325478457
- Shipping Method: LTL Freight
- Weight: 2,350 lb
- Country of Origin: China
| Weight | 2350.0 lbs |
|---|---|
| Brand | Baileigh Industrial |
