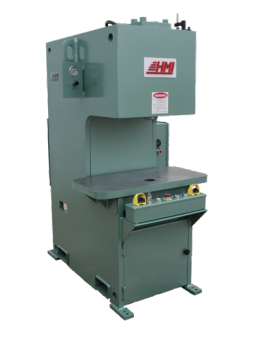

Betenbender HMI 20 HP 208V 118 Ton Hydraulic C-Frame Press and Punch 12014

Betenbender HMI 20 HP 208V 118 Ton Hydraulic C-Frame Press and Punch 12014 is a Betenbender product in the C-Frame Presses collection.

Product Details

• All Steel Construction
• Bore: 11”
• Motor: 20 hp, 208 Volt
• Made in the USA
• Description
• HMI offers the most versatile C-Frame press or punch of all machines available today. The extra large throat depth and height not found on many machines allows for an unlimited number of uses. The infinitely adjustable stroke from 0” to 8" makes it one of the most valuable and versatile assets for your shop you could have today. Let one machine do the work of several. HMI has designed their press frames to have fewer tons per square inch of pressure on their side plates, thus reducing spring back of the frame. This reduces tooling wear. This line of hydraulic machines offers the best value in any line of punching equipment today! With a wide range of tonnages, throat heights, throat depths and stroke length, there is a machine to ft your needs! HYDRAULIC MACHINES OF IOWA A Division of Betenbender Mfg. Inc.
• Features
• Large heavy duty design of the press frame to limit the defection.
• Press bed bolted on, not welded, to prevent distortion. Can be easily removed for regrinding or adding more tapped holes.
• Large rectangular tubes used at base of machine to give safe, instant portability. Oil reservoir is located vertically between the side plates to keep the machine’s footprint as small as possible.
• Hydraulic system is equipped with a wire mesh strainer on the suction side and a 10 micron filter on the return side to keep the system clean.
• Pump, motor, valve and reservoir are all easily accessible for maintenance.
• Large press bed to accommodate a variety of tooling other than just punching.
• Reservoir filled with oil.
• Lock out – tag out accommodations.
• Operators manual.
• Specifications
• Motor: 20 hp, 208V
• Weight (May Vary): 11,500 lbs
• Throat Depth: 14”
• Throat height: 18”
• Stroke Length: 8”
• Tonnage @ 2500 PSI: 118
• Hydraulics (GPM): 18
• 2 Hand Controls
• Bolt on Table
• Auto Return to Top of Stroke
• All Hydraulic Fluids
• NEMA Electrics
• Disconnect Switch
• Available Options
• Punch Kit: Includes Punch Stem, Coupler Nut, Die Holder & Wrench
• Ram Adapter
• Hairpin Guarding
• Foot Switch with Keyed Foot / 2 Hand / Jog Selector Switch
• Special Open Heights, Throat Depths & Stroke Lengths Available

Specifications

• Manufacturer: Betenbender
• SKU: HMI 12014 (208V)
• Shipping Method: Flatbed
• Weight: 13,750 lb
• Dimensions: 70 × 70 × 80 in
• Country of Origin: United States of America
• Warranty: 1 Year (Parts)
