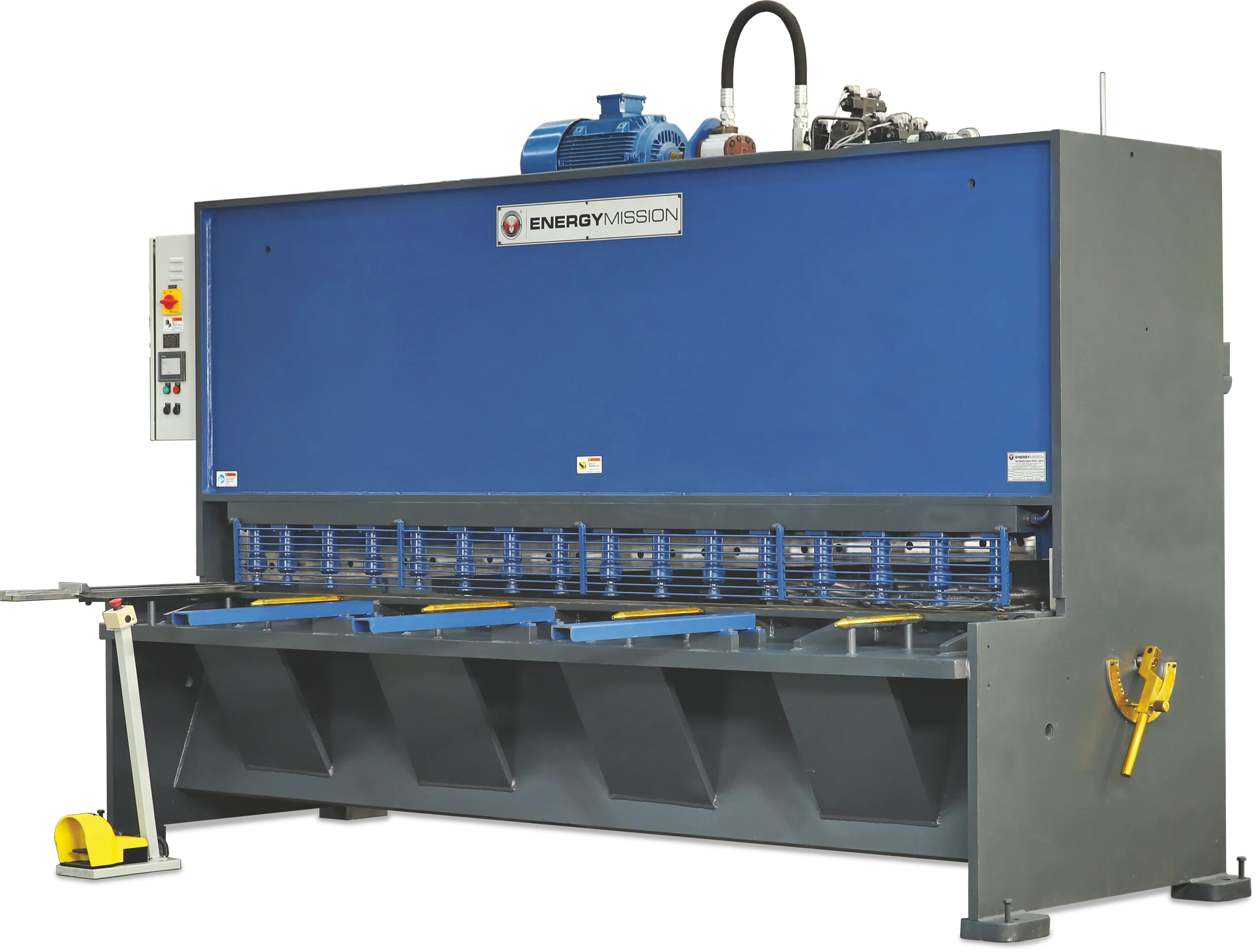

Bud’s Machine Tools 157” 480V Three Phase Hydraulic Sheet Metal Shear HVR-840
$46,999.50Current price is: $46,999.50.
- Shearing length: 157.4”
- Working Height: 35.43”
- Capacity (Mild Steel): 0.30”/0.40”
- Blade Size: 0.7” x 3” x 165”
Bud’s Machine Tools 157” 480V Three Phase Hydraulic Sheet Metal Shear HVR-840 is a Bud’s Machine Tools product in the Shears collection.
Product Details
- Shearing length: 157.4”
- Working Height: 35.43”
- Capacity (Mild Steel): 0.30”/0.40”
- Blade Size: 0.7” x 3” x 165”
- Features
- Guillotine type hydraulically variable rake angle design
- Twist free & better cutting result in thin sheets at lower rake angle
- Cutting job accuracy as per DIN Standard
- Higher cutting capacity than rated capacity at higher rake angle
- The stable & robust structure from ultrasonically & tensile tested IS 2062 grade steel
- Rigid box type structure of ram & table with inclined member in direction of resultant force
- Hydraulic & electrical safety interlocks for overloading
- NC upgradation possible as add-on
- Bolted type Square Box assembly for holding cylinder mounting
- Special guided seal for holding cylinder to avoid leakage
- All electrical & hydraulic components from reputed make
- Ram guided by six hardened & grounded guide rollers suitable for upgradation with special optional features
- Specifications
- Shearing Capacity Thickness Mild Steel: 0.30”/0.40” Stainless Steel: 0.24”/0.31”
- Mild Steel: 0.30”/0.40”
- Stainless Steel: 0.24”/0.31”
- Variable Angle Range: 0.5°-3°
- Number of Strokes per Minute @ Max Rake Angle: 5 @ Min Rake Angle: 15
- @ Max Rake Angle: 5
- @ Min Rake Angle: 15
- Number of Hold Down Cylinders: 20
- Oil Tank Capacity: 250 liters
- Oil Specification: 68 Grade Hyd. Oil
- Back Gauge Travel: 39.3”
- Motor Power: 20HP
- Electrical Requirements: 480V Three Phase
- Dimensions (LxWxH): 208” x 118” x 100”
- Weight: 20,945 lbs
- Optional Add-Ons
- Power Back Gauge with DRO up to 3,000mm
- Power Back Gauge with DRO above 3,000 to 6,000mm
- NC Back Gauge with Cybelec Controller up to 3,000mm
- NC Back Gauge with Cybelec Controller above 3,000 to 6,000mm
Specifications
- Manufacturer: Bud's Machine Tools
- SKU: EM-HVR-840(480V)
- Shipping Method: Flatbed
- Weight: 21,100 lb
- Dimensions: 213 × 123 × 105 in
- Country of Origin: India
