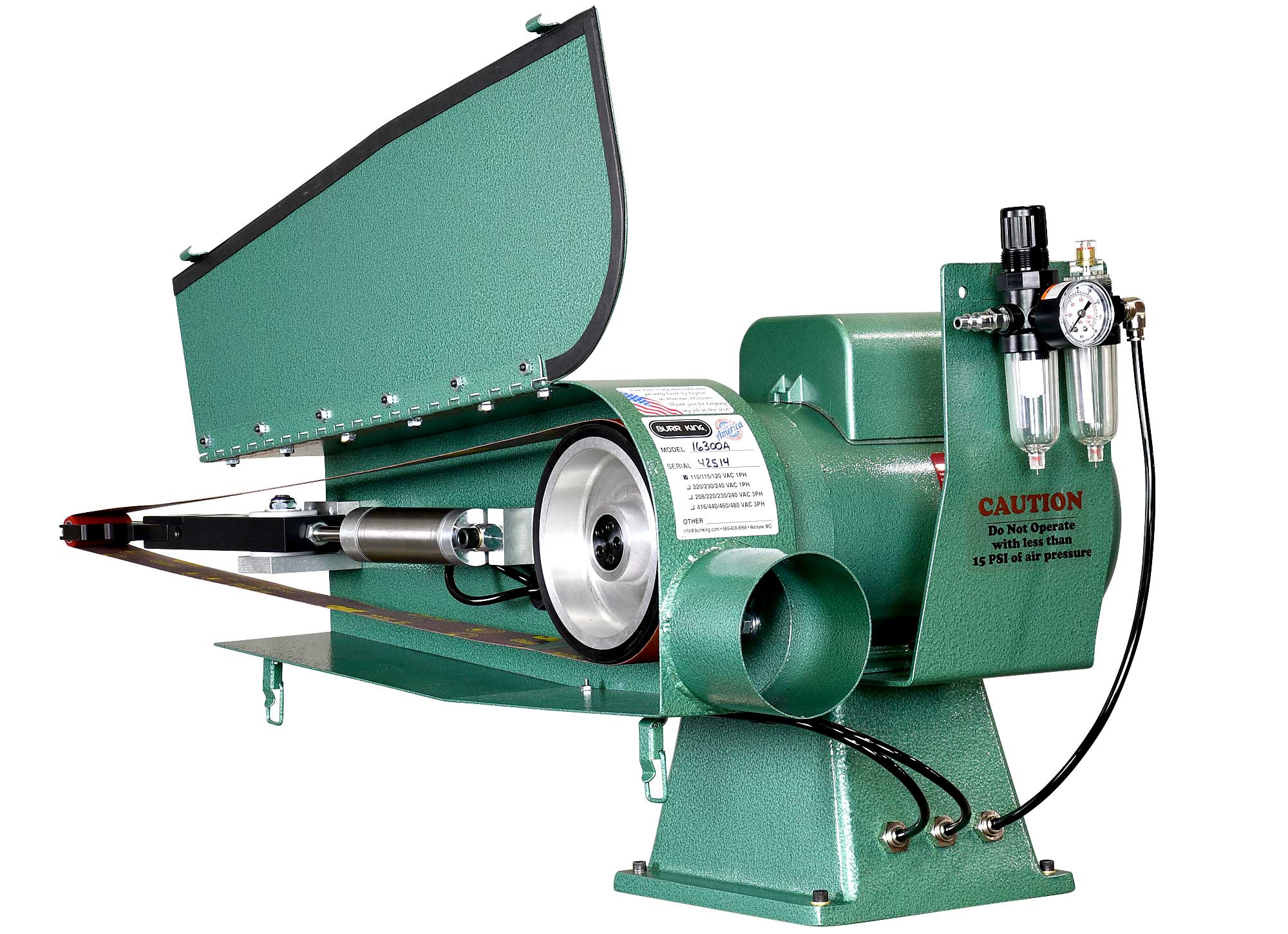

Burr King 2” x 72” Two Wheel Model 720 Fixed Speed 120V Single Phase Probe Belt Grinder with Air Tension 16300A
$2,438.94Current price is: $2,438.94.
- Fixed Speed: 5500 SFPM
- Contact Wheel Size: 1” x 2"
- Air Tension Quick Change Assembly
- Motor: 1.5 HP 120V Single Phase
Burr King 2” x 72” Two Wheel Model 720 Fixed Speed 120V Single Phase Probe Belt Grinder with Air Tension 16300A is a Burr King product in the Grinding & Sanding collection.
Product Details
- Fixed Speed: 5500 SFPM
- Contact Wheel Size: 1” x 2"
- Air Tension Quick Change Assembly
- Motor: 1.5 HP 120V Single Phase
- Description
- The Model 720 presents a unique up front, two wheel, rear drive configuration that quickly accepts contact wheel finishing diameters from 3/8 inches to 3 inches in diameter. The Model 720 is equipped with a reliable and fully adjustable air pressure belt tension control system or manual tension system.
- Using 1/2 inch to 2 inch belt width, the Model 720 72 inch belt track delivers long abrasive life coupled with excellent utility. Available in fixed or variable speed versions. Fixed speed models are recommended for 2" and larger diameter wheels.
- Features
- Reaches deep into cavities
- Finish the I.D. of tubing
- Excellent for turbine blades
- Delicately blend finishes
- Rough away material
- Finish inside diameters
- 72" belt track
- Accepts 1/2 to 2 inch belt widths
- 1 inch diameter x 2 inch wide contact wheel.
- Heavy fabricated steel frame
- Out front grinding point with up to 14 inches probe capability (diameter dependent)
- Integrated dust collection shroud with 3 inch outlet
- Belt guard with belt access door
- Mount on a bench or pedestal (pedestal sold separately)
- Pressure regulation and adjustment on pneumatic version
- Specifications
- Motor: 1.5 HP 120V Single Phase 60Hz
- Wheels: 2
- Throat Clearance: None
- Contact Wheel Hardness: 55 Duro
- Belt Tension Quick Change Assembly: Yes – Air Required
- Positive Belt Tracking Adjustment: Yes
- Overall Height, Width, Depth: 36" x 20" x 36"
- Safety Belt Guard: Yes
- Base Area: 8.5" x 8"
- Steel Backup Platen: None
- Adjustable Work Rest: None
- Construction: Solid Steel
- Bench or Pedestal Mounted: Yes
- Pedestal Included: No
- Main Application: Small Wheel Belt Grinding
- Available Accessories
- Optional Pedestal Mounts
- Wide Variety of Front Wheel Options Contact wheels from 3/8 to 3 inches in diameter with 1/2, 1, and 2 inch widths
- Contact wheels from 3/8 to 3 inches in diameter with 1/2, 1, and 2 inch widths
- Magnetic Starter
- Larger Horsepower Motors
Specifications
- Manufacturer: Burr King
- SKU: 16300A
- Shipping Method: LTL Freight
- Weight: 190 lb
- Dimensions: 48 × 48 × 40 in
- Country of Origin: United States of America
- Warranty: 1 Year (Parts)
| Weight | 190.0 lbs |
|---|---|
| Dimensions | 48.0 × 48.0 × 40.0 in |
| Brand | Burr King |
