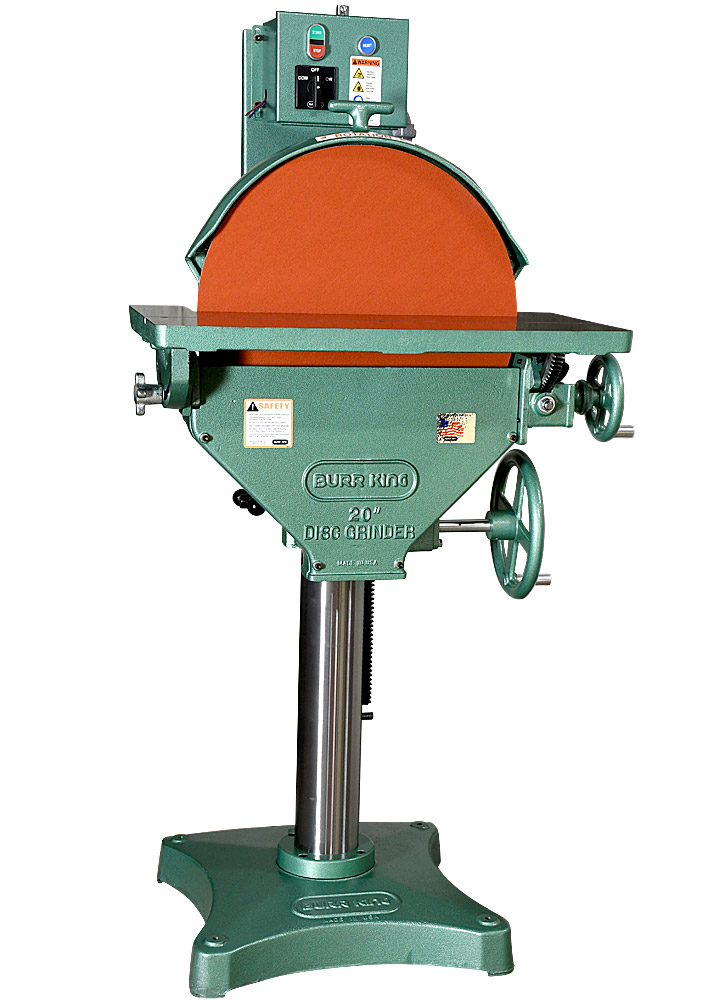

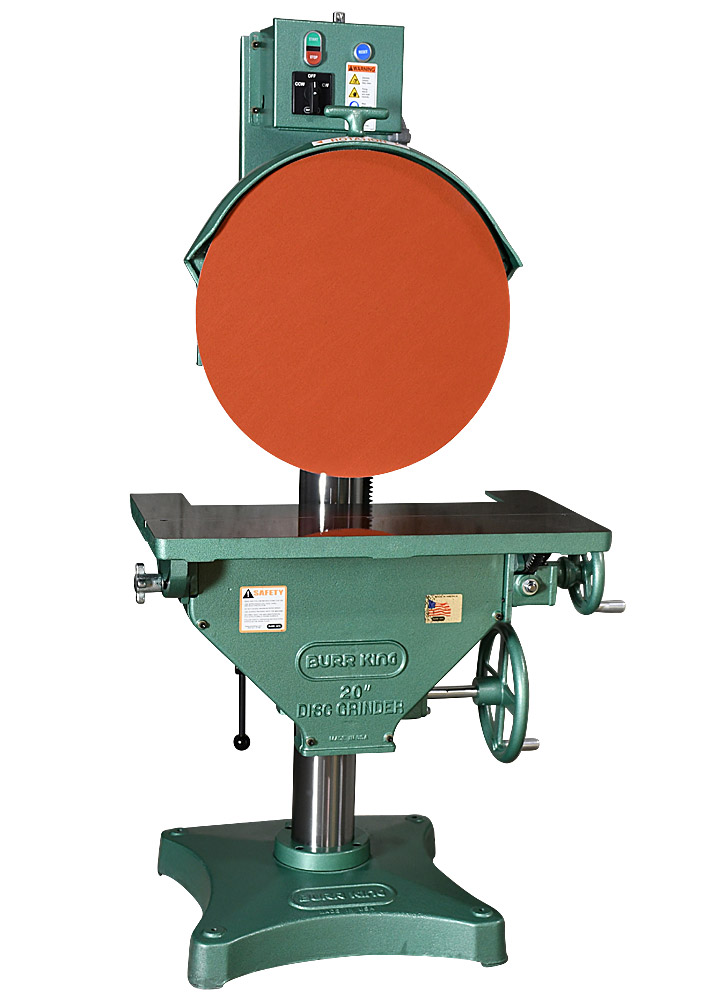

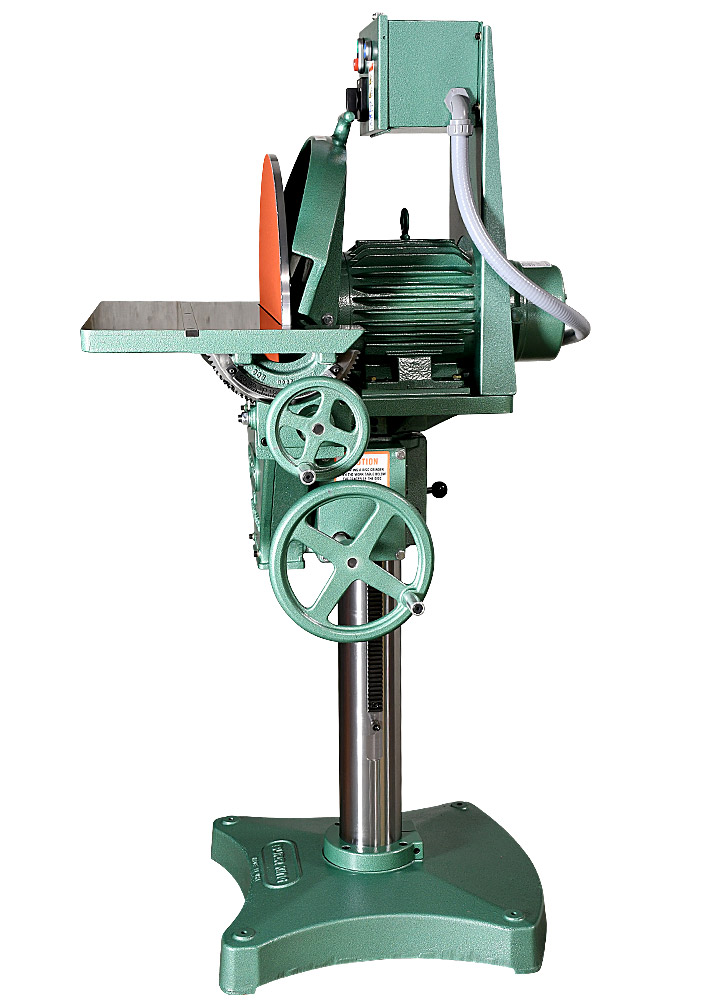

Burr King Model 20 Fixed Speed 3 HP 220V Three Phase 20” Disc Grinder 23100
$8,633.30Current price is: $8,633.30.
- Fixed Speed: 1725 RPM
- Comes with Magnetic Starter
- Forward / Reversing switch
- Motor: 3 HP 220V Three Phase
Burr King Model 20 Fixed Speed 3 HP 220V Three Phase 20” Disc Grinder 23100 is a Burr King product in the Grinding & Sanding collection.
Product Details
- Fixed Speed: 1725 RPM
- Comes with Magnetic Starter
- Forward / Reversing switch
- Motor: 3 HP 220V Three Phase
- Description
- Burr King's family of disc grinders provide maximum versatility. Constructed of rugged aluminum and ductile iron castings, Burr King Model 20 grinder delivers unexcelled grinding performance and reliability. Available in easily adjusted variable speed and aggressive single speed, both versions come with a stand.
- Features
- Precise enough for pattern makers
- The ideal tool to shape, flat grind, contour metal, wood and plastic
- Rapidly grinds and deburrs castings or fabricated parts
- Reversible disc rotation
- Cast iron 3 horse power motors
- Rugged gray, ductile iron and aluminum castings
- Elevating & Tilting work table
- Premium gears, bearings and bushings
- Gear driven table lift & tilt
- Tilting disc safety guard
- Disc face run-out less than .005 TIR
- Specifications
- Motor: 3 HP 220V Three Phase 60Hz
- Forward/Reverse Switch: Yes
- Disc Brake: Yes
- Magnetic Starter: Yes
- Overall Height, Width, Depth: 54" x 34" x 28"
- Large Cast Iron Table – 27" x 11"
- Construction: Cast Aluminum and Ductile Iron
- Pedestal Mounted: Yes
- Pedestal Included: Yes
- Available Accessories
- Dust Scoop
- Miter Attachment
Specifications
- Manufacturer: Burr King
- SKU: 23100
- Shipping Method: LTL Freight
- Weight: 615 lb
- Dimensions: 48 × 42 × 50 in
- Country of Origin: United States of America
- Warranty: 1 Year (Parts)
| Weight | 615.0 lbs |
|---|---|
| Dimensions | 48.0 × 42.0 × 50.0 in |
| Brand | Burr King |
