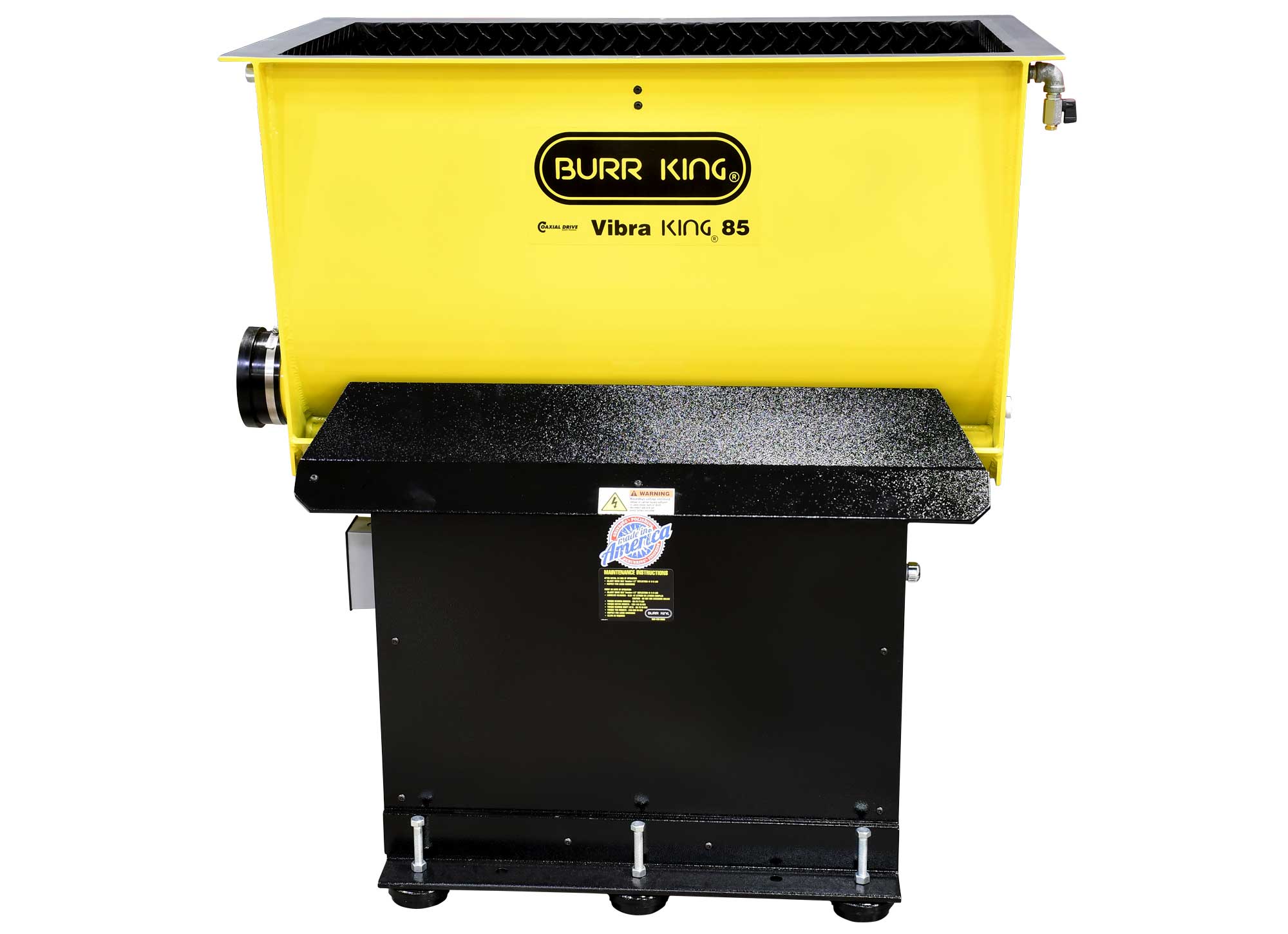

Burr King Model 85 Vibra King 220V Three Phase 8.5 Cubic Foot Vibratory Chamber with Process Timer 85303
$11,631.10Current price is: $11,631.10.
- 8.5 Cubic Feet capacity
- Motor: 3 HP 220V Three Phase
- Max Length Part: 36”
- Comes with Process Timer
Burr King Model 85 Vibra King 220V Three Phase 8.5 Cubic Foot Vibratory Chamber with Process Timer 85303 is a Burr King product in the Grinding & Sanding collection.
Product Details
- 8.5 Cubic Feet capacity
- Motor: 3 HP 220V Three Phase
- Max Length Part: 36”
- Comes with Process Timer
- Description
- Burr King vibratory chambers deliver quiet, high-performance deburring, polishing, descaling and surface conditioning. Optional process timers may be added to the M85. These timers permit precise process timing control to manage critical finishes and economize valuable shop time.
- Features
- Quiet performance
- Operate Wet or Dry
- Portable design
- Integrated, metered compound delivery system
- Flow-through design
- Replaceable drain
- Fully adjustable amplitude
- Bronze caged, sealed long life bearings
- Rugged welded steel construction
- Integrated discharge chute
- Specifications
- Total Capacity: 8.5 Cubic feet
- Working Volume: 7.2 Cubic feet
- Motor: 3 HP 220V Three Phase 60Hz

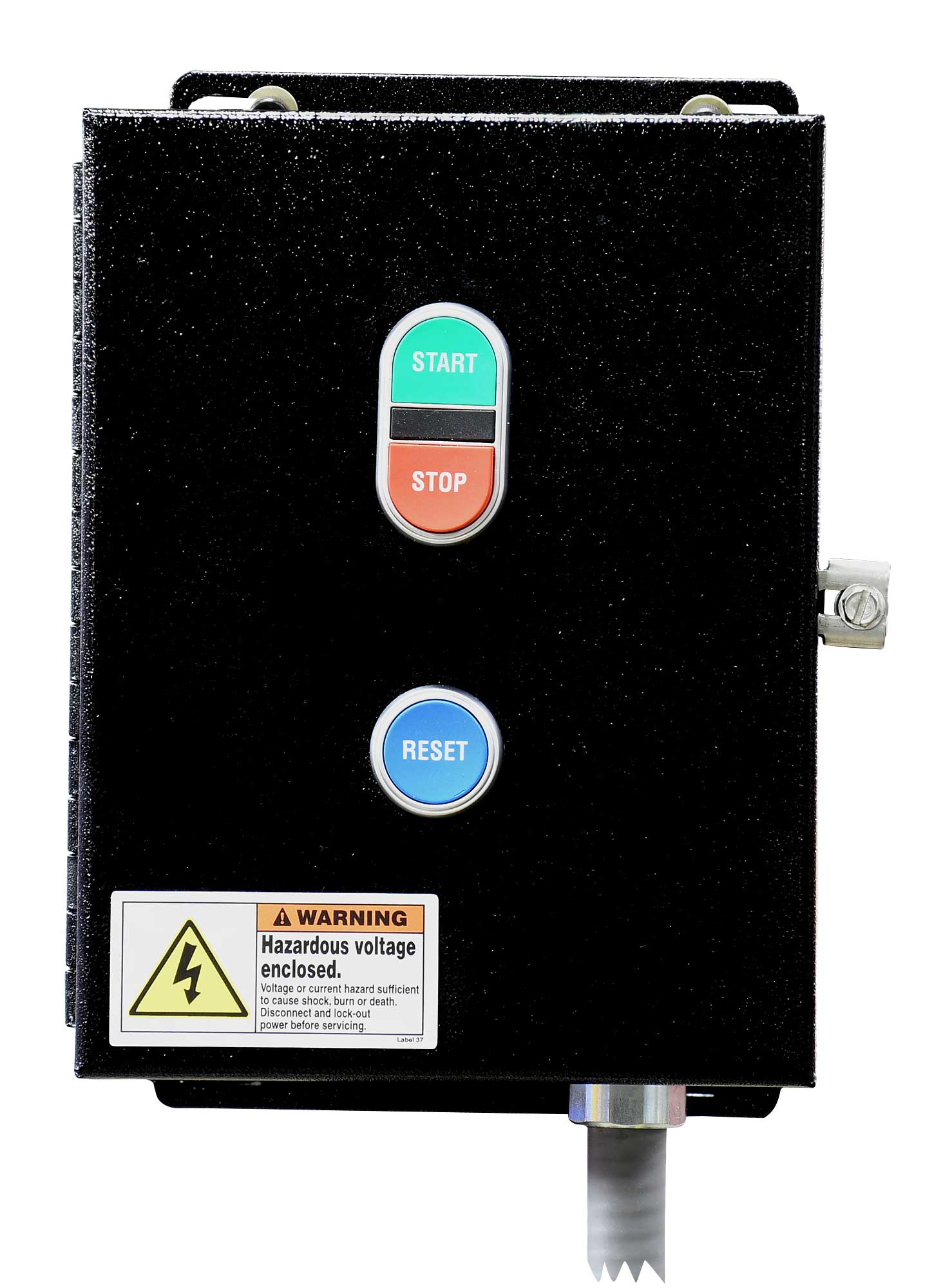

- Magnetic Starter: Yes
- Tub Depth: 20”
- Tub Length: 37”
- Tube Width: 20”
- Media Capacity: 450 lbs
- Part Capacity: 450 lbs

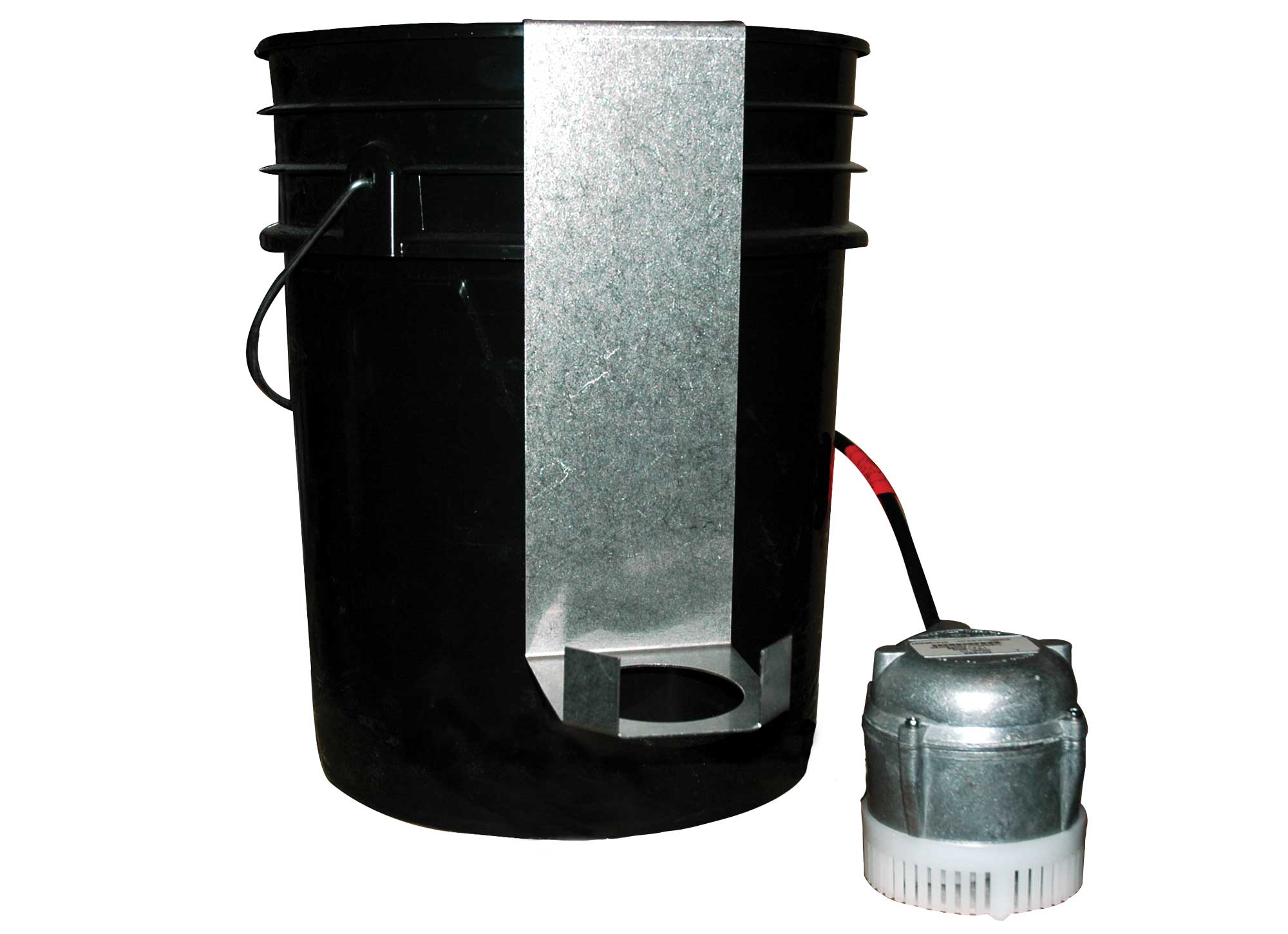

- 1000 SumpPak & Pump Included: Yes
- Wet or Dry Operation: Yes
- Flow Thru Drain: Yes
- Process Timer: Yes
- Overall Length: 48”
- Overal Width: 36”
- Overall Height: 45”
- Available Accessories
- Vibra Hush Lid
- Deflector and Dividers
Specifications
- Manufacturer: Burr King
- SKU: 85303
- Shipping Method: LTL Freight
- Weight: 765 lb
- Dimensions: 36 × 60 × 60 in
- Country of Origin: United States of America
- Warranty: 1 Year (Parts)
| Weight | 765.0 lbs |
|---|---|
| Dimensions | 36.0 × 60.0 × 60.0 in |
| Brand | Burr King |
