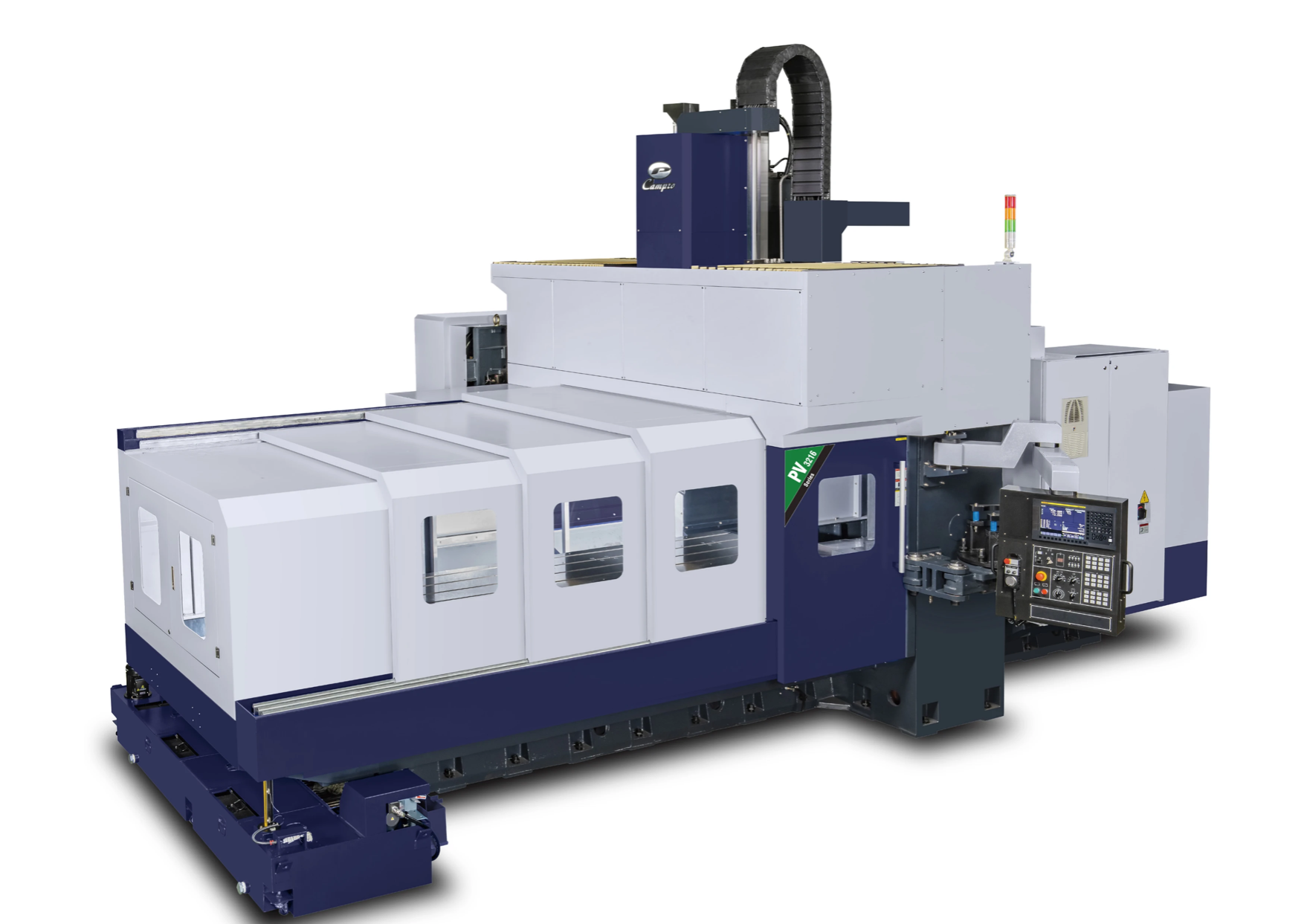

Campro USA 35HP 220V Three Phase 126″ x 63″ x 29″ Double Column Shop Bridge Mill PV-3216

Campro USA 35HP 220V Three Phase 126″ x 63″ x 29″ Double Column Shop Bridge Mill PV-3216 is a Campro USA product in the Mill Drills collection.

Product Details

• X axis travel: 125.98”
• Y axis travel: 62.98”
• Z axis travel: 29.52”
• Allowable table load: 17,637 lbs.
• Description
• 35 HP 6,000 rpm Gear-head spindle
• One-piece casting design in ram and gear box
• Box guideways on Z-axis is excellent for heavy-duty cutting
• Stepped type design shifts the gravity center toward crossbeam
• Crossbeam guideways with max. span design
• Roller linear on Y axis increases rigidity while in axial and lateral directions
• The base is made of pure casting structure ensuring long term accuracy and stability
• Optimal span between guideways supports working table
• One-piece cast base with two-chip slots minimizes cleaning time and provides higher durability and leakage prevention
• Roller linear guideways on X-axis increases table loading capacity and rigidity
• Features
• Fanuc 0i-MF PLUS Type 1
• AICC2+
• 6,000 RPM Spindle with Geared Head (10,000 RPM Built In Spindle Optional)
• Spindle Oil Chiller
• Powerful 35 HP high torque spindle motor
• High Column (37.4” Spindle nose to table)
• Cartridge Spindle Design
• CAT50 Big Plus Spindle
• Coolant thru spindle prep (290 PSI Coolant thru Spindle System Optional)
• Spindle Air Blow
• Rigid tapping
• Twin Arm 32 Tool ATC
• Portable Manual pulse generator
• Program and data protection key switch
• Massive One-piece Meehanite cast iron bed
• X & Y Heavy Duty Roller Type Guideways
• Z axis Heavy Duty Box Way
• Two Chip Augers
• Chip Conveyor (W/ Bucket)
• Double Anchored, Pre-tensioned Ballscrews
• Fast X & Y – 787, Z – 630 IPM Rapid Traverse rate
• Flood coolant with large coolant tank
• Work light
• Heat exchanger for Electrical Cabinet
• Automatic Lubrication Unit
• Instruction manual, parts list, and electrical diagram
• Fanuc operator and maintenance manuals
• One-year Parts warranty: Parts only
• Two-year NC Control Warranty: Parts and Labor
• Specifications
• Table Table loading area: 129.91” x 57.08” Allowable table load: 17,637 lbs. T Slots, width x spacing x # slots: 0.86” X 8”
• Table loading area: 129.91” x 57.08”
• T Slots, width x spacing x # slots: 0.86” X 8”
• Spindle Spindle taper: CAT-50 Big Plus Spindle RPM: 6,000 RPM Spindle Power Output: 35 HP Spindle torque: 621 ft. lbs. Spindle Driving Method: Gear Type
• Spindle taper: CAT-50 Big Plus
• Spindle RPM: 6,000 RPM
• Spindle Power Output: 35 HP
• Spindle torque: 621 ft. lbs.
• Spindle Driving Method: Gear Type
• Feed X axis travel: 125.98” Y axis travel: 62.98” Z axis travel: 29.52” Spindle nose to table surface: 7.87” – 37.40” Distance between Columns: 68.89” Rapid Traverse X and Y axis: 787 IPM Rapid Traverse Z axis: 629.9 IPM
• Spindle nose to table surface: 7.87” – 37.40”
• Distance between Columns: 68.89”
• Rapid Traverse X and Y axis: 787 IPM
• Rapid Traverse Z axis: 629.9 IPM
• Automatic Tool Changer Number of Tools: 32 Tool Shank: CAT 50 Big Plus Max. Tool Dia.: 4.92 Max. Tool Dia. with adjacent pocket open: 8.46 Max. Tool Length: 17.38 inches Max. Tool Weight: 44.1 lbs. Tool Selection Method: Random
• Number of Tools: 32
• Tool Shank: CAT 50 Big Plus
• Max. Tool Dia.: 4.92
• Max. Tool Dia. with adjacent pocket open: 8.46
• Max. Tool Length: 17.38 inches
• Max. Tool Weight: 44.1 lbs.
• Tool Selection Method: Random
• Tank Capacity Coolant Tank: 53 Gallons Lubricating Tank: 0.5 Gallons Hydraulic Tank: 30 Gallons
• Coolant Tank: 53 Gallons
• Lubricating Tank: 0.5 Gallons
• Hydraulic Tank: 30 Gallons
• Power Supply Electric Power Supply Voltage / KVA: 220V 3 Phase (60HZ) / 40 Minimum Air Supply: 85 PSI (3/8 ID Supply Hose)
• Electric Power Supply Voltage / KVA: 220V 3 Phase (60HZ) / 40
• Minimum Air Supply: 85 PSI (3/8 ID Supply Hose)
• Feed and Accuracy Cutting feed rate: 393 IPM Least command increment: 0.001mm Positioning accuracy: +/- 0.00020" (full stroke) Repeatability: +/- 0.00008"
• Cutting feed rate: 393 IPM
• Least command increment: 0.001mm
• Positioning accuracy: +/- 0.00020" (full stroke)
• Repeatability: +/- 0.00008"
• Machine Floor Space Required (L x W): 259.8" x 188.9" Height: 155.51” Machine Weight: 59,524 lbs.
• Floor Space Required (L x W): 259.8" x 188.9"
• Height: 155.51”
• Machine Weight: 59,524 lbs.
• Options
• CAT-40 I.D.D. Spindle
• 10,000 RPM Built-In Motor Spindle
• 40 / 60 Tools Chain Type ATC
• Coolant Through Spindle
• Deep Hole Adaptor
• High Pressure Pump
• Linear Scales
• CNC Rotary Table
• Automatic Tool Length Measurement
• Workpiece Measurement
• Milling Head
• Air Condition
• CE Modification
• Transformer

Specifications

• Manufacturer: Campro USA
• SKU: PV-3216
• Shipping Method: Flatbed
• Weight: 59,624 lb
• Dimensions: 265 × 194 × 160 in
