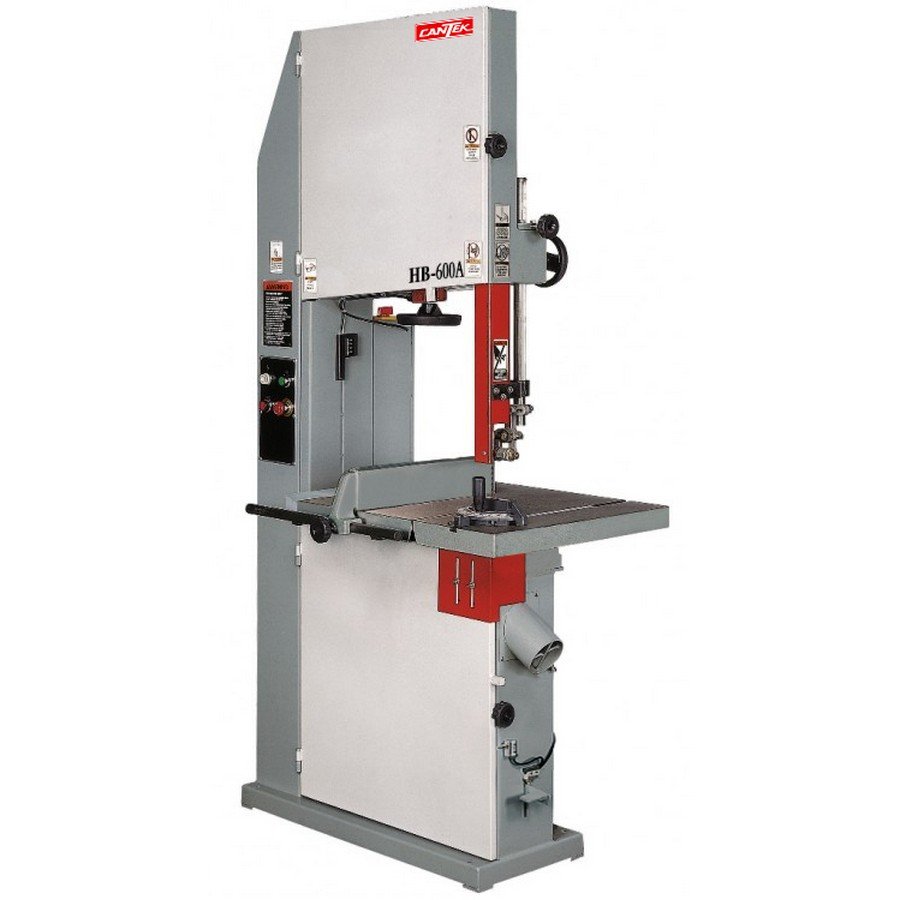

Cantek HB600A3 24″ Band Saw (Band Resaw) 5HP Three-Phase
$3,840.00Current price is: $3,840.00.
- 23-1/2"Band Saw Size & Wheel Diameter (in)
- 173-5/8" ~ 176-1/2"Blade Length (in)
- 4458 FPMBlade Speed
- 4458 FPMBlade Speed (SFPM)
8 in stock
Overview
Cantek HB600A3 24" Band Saw (Band Resaw) 5HP Three-Phase is documented as a Band Resaw from Cantek America. The exact CANHB600A-230-3 configuration is mapped to GT Machinery Solutions SKU CANHB600A3-5HP. Recorded technical data includes horsepower: 5HP, motor power: 5HP, and motor power (hp): 5HP. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Key Features
- 2 in 1 machine for rip and curve band sawing
- Bearing blade guide mechanism with side and back bearing guide for rigid back-up support of the blade

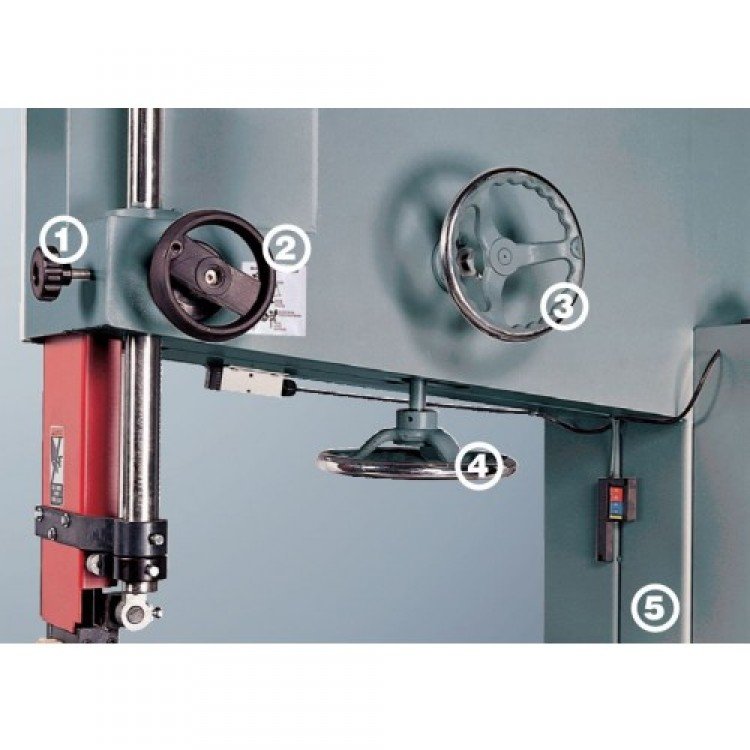

- Micrometric adjustment to upper guide
- Cast iron saw wheels are precision machined and laminated with rubber for accurate blade tracking and slippage prevention

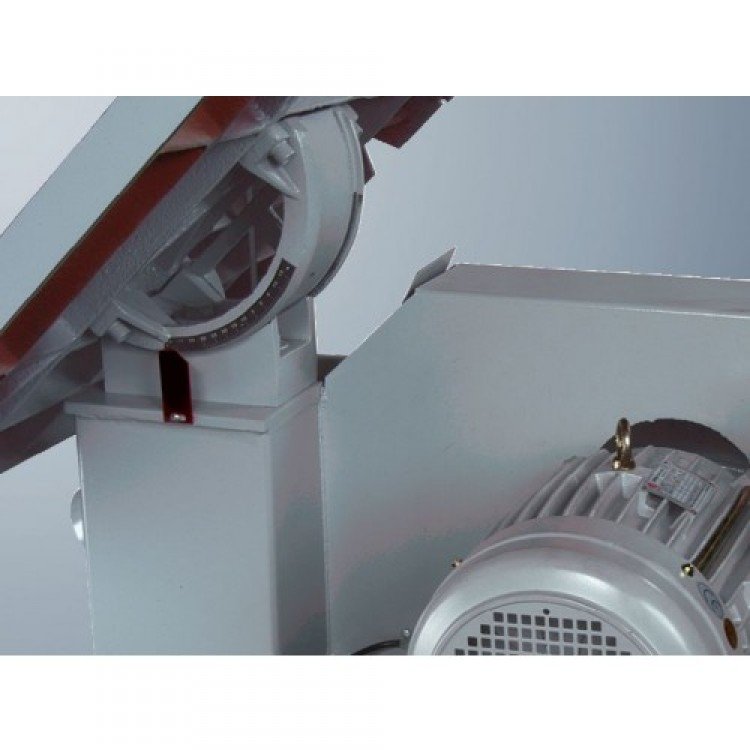

- Cast iron work table is precision ground and can tilt to 45o
- Blade tension is conveniently adjusted by means of a handwheel and tension is shown by a scale for accurate tension setting.
- Foot brake for quick shutdown of machine
- Heavy gauge steel frame ensures vibration free cutting
Technical Specifications
| Band Saw Size & Wheel Diameter (in) | 23-1/2" |
|---|---|
| Blade Length (in) | 173-5/8" ~ 176-1/2" |
| Blade Speed | 4458 FPM |
| Blade Speed (SFPM) | 4458 FPM |
| Blade Width (in) | 1/4" ~ 2" |
| Cutting Capacity Height (In.) | 13-3/4" |
| Dust Port Outside Diameter (in) | 4" x 2 |
| Height | 81-1/2" |
| Horsepower | 5HP |
| Length | 41-47/64" |
| Maximum Tilt | 45° |
| Motor Current (Amps) | 15.2 |
| Motor Phase | Three Phase |
| Motor Power | 5HP |
| Motor Power (HP) | 5HP |
| Prewired Voltage (V.) | 230/3/60 |
| Product Type | Band Resaw |
| Table Size | 31-1/2" x 23-3/4" |
| Table Size (L x W) (In.) | 31-1/2" X 23-3/4" |
| Table Tilt (Deg.) | 0 – 45 Degrees |
| Weight | 990.000 lbs |
| Width | 31-1/2" |
Available Documents
| Weight | 990 lbs |
|---|---|
| Dimensions | 41.736 × 31.5 × 81.5 in |
| Brand | Cantek America |
