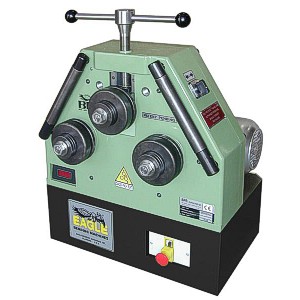

Carell Industrial Eagle Bending 220V Three Phase 1½” Sq. Tube 3-Roll Universal Roll Bender with LED Readout CP30-MS

Carell Industrial Eagle Bending 220V Three Phase 1½” Sq. Tube 3-Roll Universal Roll Bender with LED Readout CP30-MS is a Carell Industrial Solutions product in the Roll Benders collection.

Product Details

• Shaft OD: 1-3/16”
• Roll OD: 5” Nominal
• Operation: Horizontal & Vertical
• Square Tube Capacity: 1½” x 11Ga
• Description
• Eagle CP30 Universal Section Benders: 5 versatile versions give you renowned eagle quality and the best solutions to fit your budget. Carell’s Eagle benders have standard features beyond comparison and are the most popular and widely used bending machines in the industry. Ornamental, architectural, decorative, job shops, and companies such as NASA, Lockheed Martin and Boeing choose Eagle for features, professional service and lasting value.
• The CP30-MS has a short base for use on trailer, truck tail gate, or bench mounting and is equipped with a LED readout.
• Features
• Powerful & rugged pyramid design includes powered rotation for forward/reverse rolling direction
• Solid steel main frames, CNC machined and stress relieved, are the heaviest in the industry and eliminate troublesome castings
• Limited lifetime warranty is standard on all Carell Eagle machine main frames. Bases are wider and more stable than any other brand
• Large high brightness LED readout for precision repeatability
• Horizontal and vertical operation for versatility
• Lower shafts driven, top shaft idle. Lower tooling is knurled for traction, top tooling is smooth surfaced
• Standard universal tooling set of 18 components are manufactured from hardened tool steel 55HRC and roll most standard profiles
• Patented Z-block top journal increases rigidity for truer to plane rolling
• Hardened steel shafts are journaled in dual tapered roller bearings. Shaft OD’s 1.18”, Roll OD’s 5.04”
• Hardened/sintered guides & ways with adjustable gibbs on every Eagle Bender
• Heavy duty lateral material guides with thrust and rake angle adjustment and help keep your parts straight
• Large thrust adjustment studs on guides are knurled for easy adjustment & have recessed hex socket for extreme loads
• Flush mounted electrical panels are out of harm’s way in your shop environment, controls are low voltage 24VAC for safety
• Emergency stop palm switches are incorporated on every Eagle Bender. Magnetic thermal motor overload protection on every model
• Renowned brand name OEM components are non-proprietary and available worldwide
• Specifications
• Power: 1.50 HP
• Footprint: 26" x 22"
• Speed: 12/24 fpm
• Working Height: 34"
• Drive Rolls: 2 Lower
• Adjustment: Manual
• Electrical Requirements: 220V Single Phase 60Hz (1 Speed)
• Dimensions: 27” x 24” x 40”
• Weight: 440 lbs
• Capacities
• Flats, Hard Max Size: 2” x 3/8” Min ID: Ø16”
• Max Size: 2” x 3/8”
• Min ID: Ø16”
• Flats, Easy Max Size: 3” x 5/8” Min ID: Ø16”
• Max Size: 3” x 5/8”
• Square Bar Max Size: 1-1/8” Min ID: Ø24”
• Max Size: 1-1/8”
• Min ID: Ø24”
• Tee, Leg-Out Max Size: 2” Min ID: Ø16”
• Max Size: 2”
• Tee, Leg-In Max Size: 2” Min ID: Ø20”
• Min ID: Ø20”
• C, Legs-Out Max Size: 2” x 1” Min ID: Ø12”
• Max Size: 2” x 1”
• Min ID: Ø12”
• C, Legs-In Max Size: 2” x 1” Min ID: Ø16”
• Square Tube Max Size: 1½” x 11Ga Min ID: Ø40”
• Max Size: 1½” x 11Ga
• Min ID: Ø40”
• Rectangular Tube Max Size: 2” x 1” x 11Ga Min ID: Ø48”
• Max Size: 2” x 1” x 11Ga
• Min ID: Ø48”
• Optional Add-Ons
• Tube & Pipe Rolls Round Bar Max Size: 1¼” Min ID: Ø24” Pipe, Sch 40 Max Size: 1½” Min ID: Ø20” Round Tube Max Size: 2-3/8” x 16Ga Min ID: Ø40”
• Round Bar Max Size: 1¼” Min ID: Ø24”
• Max Size: 1¼”
• Pipe, Sch 40 Max Size: 1½” Min ID: Ø20”
• Round Tube Max Size: 2-3/8” x 16Ga Min ID: Ø40”
• Max Size: 2-3/8” x 16Ga
• Wide flat & tight diameter rolls
• Rolls & guides for Angle In/Out Angle, Leg-Out Max Size: 1½” x 3/16” Min ID: Ø16” Angle, Leg-In Max Size: 1½” x 3/16” Min ID: Ø22”
• Angle, Leg-Out Max Size: 1½” x 3/16” Min ID: Ø16”
• Max Size: 1½” x 3/16”
• Angle, Leg-In Max Size: 1½” x 3/16” Min ID: Ø22”
• Min ID: Ø22”
• Bar twist & scroll tooling
• Cap Rail Rolls
• Rolls for extrusions/other shapes

Specifications

• Manufacturer: Carell Industrial Solutions
• SKU: CP30-MS
• Shipping Method: LTL Freight
• Weight: 440 lb
• Dimensions: 27 × 24 × 40 in
