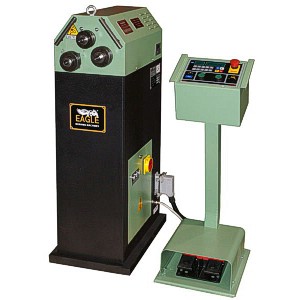

Carell Industrial Eagle Bending 220V Three Phase 1” Capacity Hydraulic Initial Pinch Universal Roll Bender CPS-20

Carell Industrial Eagle Bending 220V Three Phase 1” Capacity Hydraulic Initial Pinch Universal Roll Bender CPS-20 is a Carell Industrial Solutions product in the Roll Benders collection.

Product Details

• Driven Rolls: 3
• Shaft Diameters: ¾”
• Roll Diameters: 3¼”
• Working Height: 38”
• Description
• Powerful Eagle CPS Series Roll Benders are hydraulic, initial punch universal roll bending machines with all 3 rolls driven and primarily designed for one pass rolling. They are the choice for production settings and coiling operations. The CPS Series Roll Bending Machines offer features that are beyond comparison. Several versatile versions give you renowned Eagle quality and the best solutions to fit your budget. You benefit from over 24,000 machines produced over many decades of manufacturing innovation and experience.
• Features
• Solid steel main frames, CNC machined and stress relieved are the heaviest in the industry and eliminate troublesome castings. Eagle machines do not require external shaft tie bars when bending heavy sections
• Limited lifetime warranty on all Eagle machine main frames is standard
• DP7 Auto-repeat programmable control with 40-position memory on hydraulic versions for repeat bending Optional Digital Radius Instrument will display your bending radius
• Optional Digital Radius Instrument will display your bending radius
• Large high brightness LED readout on all models to monitor the bending roll position
• CPS 20, CPS 35, CPS 50s operate in both vertical and horizontal positions
• All 3 shaft driven and all tooling components are smooth surfaced, non marring
• Standard universal tooling set has 15 components and manufactured from hardened tool steel 55HRC
• Hardened steel shafts are journaled dual tapered roller bearings
• Patented z-block top journal increases rigidity for truer to plane rolling
• Hardened/Sintered guides & ways with adjustable gibbs on every Eagle Bender
• Dual foot pedal controls for forward/reverse rolling have steel protective covers
• Anti-pinch mill scale covers protect internal components from mill scale and are an extra safety feature
• Concealed internal hydraulic ram cannot be damaged by accident, nothing is exposed
• Dual emergency stop buttons 1 on machine + 1 on the console for enhanced operator safety
• Flush mounted electrical panels are out of harm’s way in your shop environment
• Easy access tool storage compartment in the machine base for convenience
• Mobile control console with long trailing lead allows safe operator distance from the work-piece
• Renowned brand name OEM components are non-proprietary and available worldwide
• Specifications
• Drive Motor: 0.50 HP
• Pump Motor: 0.50 HP
• Floor Area: 26” x 21”
• Rolling Speed: 10 fpm
• Working Plane: Vertical
• Repeat Control: Auto-Repeat
• Electrical Requirements: 220V Three Phase
• Dimensions: 54” x 47” x 55”
• Machine Weight: 375 lbs
• Capacities
• Flats, Hard Max Size: 1” x ¼” Min ID: Ø8”
• Max Size: 1” x ¼”
• Min ID: Ø8”
• Flats, Easy Max Size: 1¾” x 3/8” Min ID: Ø12”
• Max Size: 1¾” x 3/8”
• Min ID: Ø12”
• Square Bar Max Size: ½” Min ID: Ø5”
• Max Size: ½”
• Min ID: Ø5”
• Angle, Leg-Out Max Size: ¾” x 3/16” Min ID: Ø8”
• Max Size: ¾” x 3/16”
• Angle, Leg-In Max Size: ¾” x 3/16” Min ID: Ø10”
• Min ID: Ø10”
• Tee, Leg-Out Max Size: 1” Min ID: Ø6”
• Max Size: 1”
• Min ID: Ø6”
• Tee, Leg-In Max Size: 1” Min ID: Ø6”
• C, Legs-Out Max Size: 1¼” Min ID: Ø8”
• C, Legs-In Max Size: 1¼” Min ID: Ø10”
• Round Bar Max Size: ½” Min ID: Ø4”
• Min ID: Ø4”
• Pipe Max Size: ½” Min ID: Ø12”
• Round Tube Max Size: 1¼” x 1/16” Min ID: Ø16”
• Max Size: 1¼” x 1/16”
• Min ID: Ø16”
• Square Tube Max Size: ¾” x 1/16” Min ID: Ø12”
• Max Size: ¾” x 1/16”
• Rectangular Tube Max Size: 1¼” x 3/8” x 1/16”
• Max Size: 1¼” x 3/8” x 1/16”
• Optional Add-Ons
• Cap Rail Tooling
• Round Tube & Pipe Roll Sets
• Angle Rolling Tooling for Leg-In & Leg-Out, Wide Flat, & Tight Diameter Rolls
• Replacement Roll Components
• V-Groove Rolls
• Digital Radius Instrument

Specifications

• Manufacturer: Carell Industrial Solutions
• SKU: CPS-20
• Shipping Method: LTL Freight
• Weight: 375 lb
• Dimensions: 54 × 47 × 55 in
