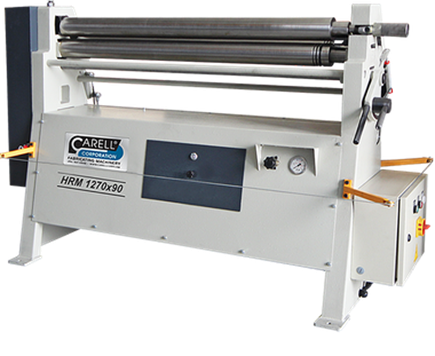

Carell Industrial HRM Series 4’ x 12Ga 230V Three Phase 3-Roll Hydraulic Initial-Pinch Plate Roll 1270×90
$9,716.20Current price is: $9,716.20.
- Useful length maximum: 48”
- Max rolling thickness: 12Ga
- Roll diameters: 3.54” (90mm)
- Rotation/Production velocity: 16 fpm
Carell Industrial HRM Series 4’ x 12Ga 230V Three Phase 3-Roll Hydraulic Initial-Pinch Plate Roll 1270×90 is a Carell Industrial Solutions product in the Plate Roll collection.
Product Details
- Useful length maximum: 48”
- Max rolling thickness: 12Ga
- Roll diameters: 3.54” (90mm)
- Rotation/Production velocity: 16 fpm
- Description
- Carell’s HRM Series I.P. Sheet Rolls are 3-roll, single initial pinch plate bending machines with Hydraulic Adjustment of the lateral bending roll, powered rotation of upper and lower pinch rolls, LED readout, cone device and hardened rolls.
- Features
- Both upper and central pinch rolls driven by electric motor and oil bath speed reducer through NiCrMo solid stock gears
- Base in electro-welded and/or reinforced spheroidal cast steel, stress relieved
- Lateral roll, idle and moving on roller bearings
- Central pinch roll pinch pressure adjustable by ergonomic easy adjust cam
- Front lateral release top roll with spring loaded lock
- Hydraulic lateral roll movement via push button controlled dual hydraulic pistons
- Lateral bending roll tilting for cone working via push buttons on control console
- Integral hydraulic power pack with pressure gauge and pressure adjustment
- Low voltage console with foot pedals rotation, push buttons & E-stop
- Multi point safety system including circumferential trip wire
- 3 rod grooves on lower rolls for up to ¼”, 3/8”, and ½” rod
- Instruction Manaul, LED readout, Cone Device, and Hardened & Polished Rolls
- Specifications
- Max bending: 48” x 14Ga
- Installed Power: 1.5 HP
- Electrical Requirements: 230V Three Phase 60Hz
- Machine Dims: 73” x 28” x 47”
- Approx Weight: 1,150 lbs
- Optional Add-Ons
- Power rotation on bending roll
Specifications
- Manufacturer: Carell Industrial Solutions
- SKU: HRM 1270×90
- Shipping Method: Flatbed
- Weight: 1,310 lb
- Dimensions: 89 × 42 × 52 in
| Weight | 1310.0 lbs |
|---|---|
| Dimensions | 89.0 × 42.0 × 52.0 in |
| Brand | Carell Industrial Solutions |
