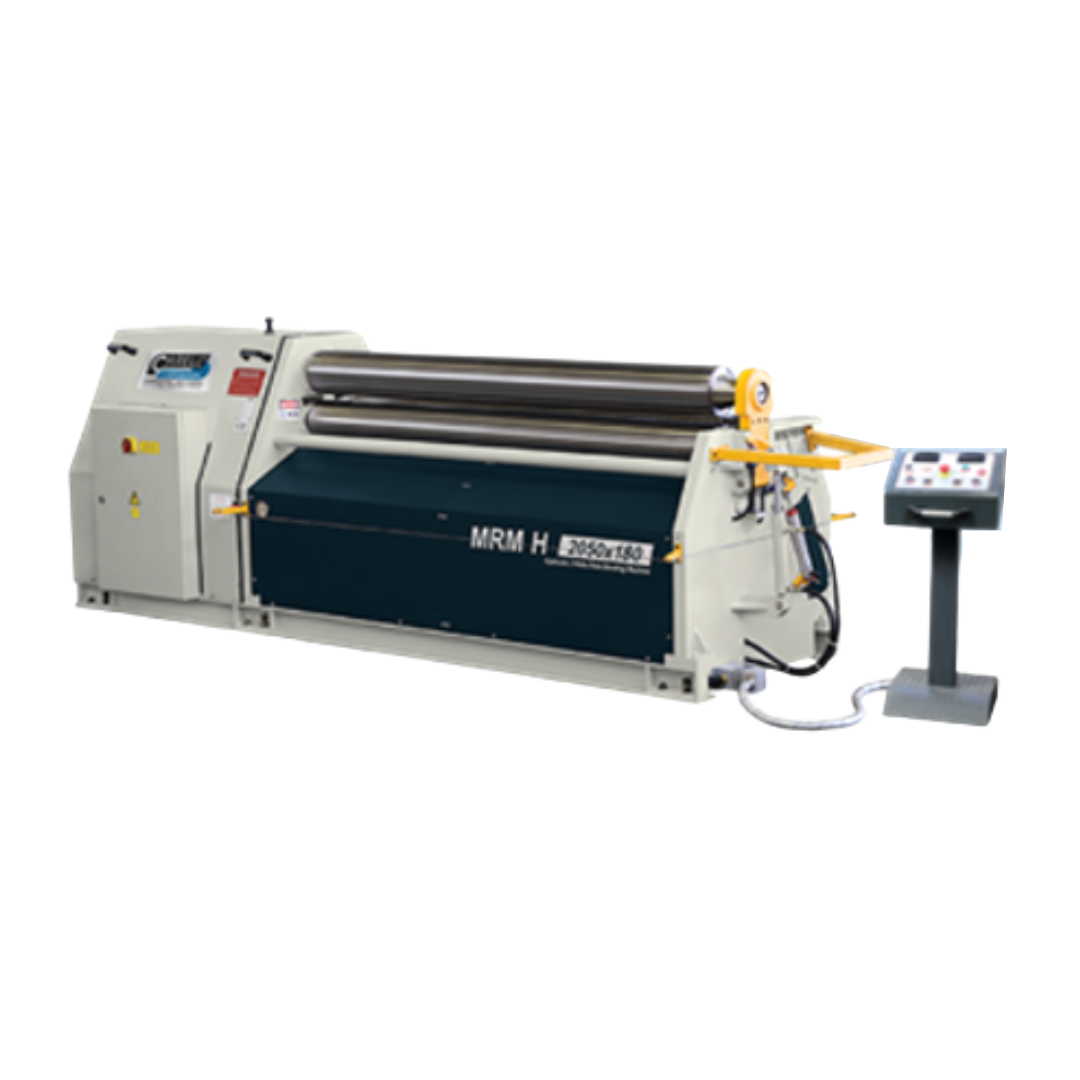

Carell Industrial MRM-H Series 5’ x ¼” 220V Three Phase 3-Roll Hydraulic Initial Pinch Plate Roll 1550×180
$29,890.25Current price is: $29,890.25.
- Top & Pinch Roll OD: 7.09” (180mm)
- Lateral Roll OD: 5.90”
- Max Capacity: 60” x 11/32”
- Rotation speed: 17 fpm
Carell Industrial MRM-H Series 5’ x ¼” 220V Three Phase 3-Roll Hydraulic Initial Pinch Plate Roll 1550×180 is a Carell Industrial Solutions product in the Plate Roll collection.
Product Details
- Top & Pinch Roll OD: 7.09” (180mm)
- Lateral Roll OD: 5.90”
- Max Capacity: 60” x 11/32”
- Rotation speed: 17 fpm
- Description
- Carell’s MRM-H Series Hydraulic IP Sheet Rolls are 3 roll, single initial pinch plate bending machines with powered rotation of upper and lower pinch rolls, hydraulic bend roll and pinch roll adjustment, 2 LED readouts, hydraulic drop end, induction hardened rolls, and a cone rolling device all included as standard equipment.
- Features
- Both upper roll and central pinch rolls driven by electric motor and oil bath speed reducer through NiCrMo solid stock hardened gear drive
- End frames, thick solid steel plate members, stress relieved & reinforced
- Lateral roll, idle, journaled in roller bearings and moves on efficient linear guides
- Bending roll & pinch roll hydraulic powered adjustment from control console
- Hydraulic drop end yoke operated from control console
- NR 2 LED Readouts, Induction Hardened Rolls & Cone Device Standard
- Lateral bending roll tilts for cone working
- Low voltage control console for all movements with E-stop & keyed lock-out
- Multi point safety system including circumferential trip wire
- Instruction manual
- Specifications
- Useful length maximum: 60”
- Max rolling thickness: 11/32” to larger ODs
- Prebend thickness: ¼” to ID 5.0 x TR
- Prebend thickness: 3/16” to ID 1.5 x TR
- Installed power: 6.8 HP
- Electrical Requirements: 220V Three Phase
- Machine Dims: 132” x 43” x 51”
- Approx Weight: 5,082 lbs
- Optional Add-Ons
- Rod grooves on bending & pinch rolls
- 3rd roll driven in rotation (lateral bending roll)
- 2 speed roll rotation
- Lateral and overhead sheet supports
- Hydraulic side support
- Hydraulic overhead supports
Specifications
- Manufacturer: Carell Industrial Solutions
- SKU: MRM-H 1550×180
- Shipping Method: Flatbed
- Weight: 5,200 lb
- Dimensions: 140 × 50 × 60 in
| Weight | 5200.0 lbs |
|---|---|
| Dimensions | 140.0 × 50.0 × 60.0 in |
| Brand | Carell Industrial Solutions |
