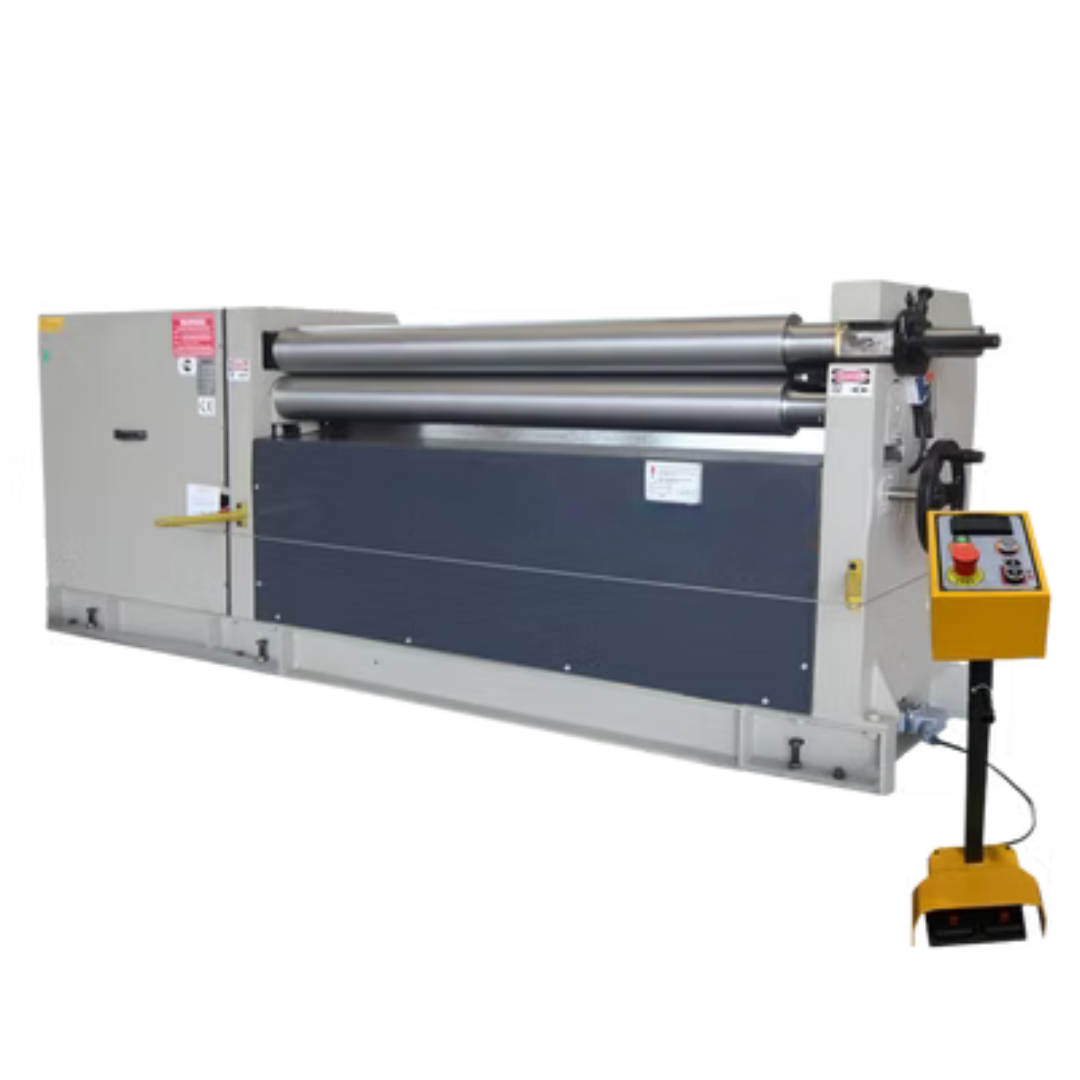

Carell Industrial MRM-S Series 5’ x 3/16” 220V Three Phase 3-Roll Powered Initial Pinch Plate Roll 1550×150
$21,513.70Current price is: $21,513.70.
- Pre-bending: 3/16”
- Top & Pinch Roll OD: 5.9” (150mm)
- Lateral bending roll OD: 5.9”
- Production velocity: 12 fpm
Carell Industrial MRM-S Series 5’ x 3/16” 220V Three Phase 3-Roll Powered Initial Pinch Plate Roll 1550×150 is a Carell Industrial Solutions product in the Plate Roll collection.
Product Details
- Pre-bending: 3/16”
- Top & Pinch Roll OD: 5.9” (150mm)
- Lateral bending roll OD: 5.9”
- Production velocity: 12 fpm
- Description
- Carell’s MRM-S series model 1550×150 unit is a 5’ x 3/16”, 3 roll, single initial pinch plate bending machine with powered adjustment of lateral bending roll and powered rotation of upper and lower pinch rolls using high efficiency motor/reduction units.
- Features
- Both upper roll and central pinch rolls driven by electric motor and oil bath speed reducer through NiCrMo solid stock gears
- Base in steel, electro-welded and stress relieved
- Lateral roll, idle, and moving on roller bearings
- Pinch roll pinch pressure adjustable by precision worm gear movement with single manual hand wheel crank
- Front quick release top roll with rotation lock out safety switch
- Lateral roll movement up/down powered via electric motor and heavy duty worm gear drive for precise positioning and maximum power
- Lateral bending roll and pinch roll incline for cone working
- Push button controls, low voltage 24VAC for safety
- Multi point safety system including circumferential trip wire
- Instruction manual
- Standard Equipment
- Cone rolling attachment
- Induction hardened rolls
- LED readout on bending roll
- Polished roll finish to remove heat treatment residues
- Powered pinch roll adjustment up/down
- Add on foot pedals w/trailing lead & Estop
- Specifications
- Useful length: 5’ (total roll 62”)
- Bending maximum: ¼” total rolling capacity
- Min ID with thin sheet equal to 1.4 x TR OD
- Installed power: 5.5 HP
- Electrical Requirements: 220V Three Phase 60Hz
- Machine Dims: 128” x 28” x 42”
- Approx Weight: 3,740 lbs
- Optional Add-Ons
- Shaft extensions for section bending rolls
- Section bending dies
- LED readout on pinch roll
Specifications
- Manufacturer: Carell Industrial Solutions
- SKU: MRM-S 1550×150
- Shipping Method: Flatbed
- Weight: 3,900 lb
- Dimensions: 135 × 40 × 45 in
| Weight | 3900.0 lbs |
|---|---|
| Dimensions | 135.0 × 40.0 × 45.0 in |
| Brand | Carell Industrial Solutions |
