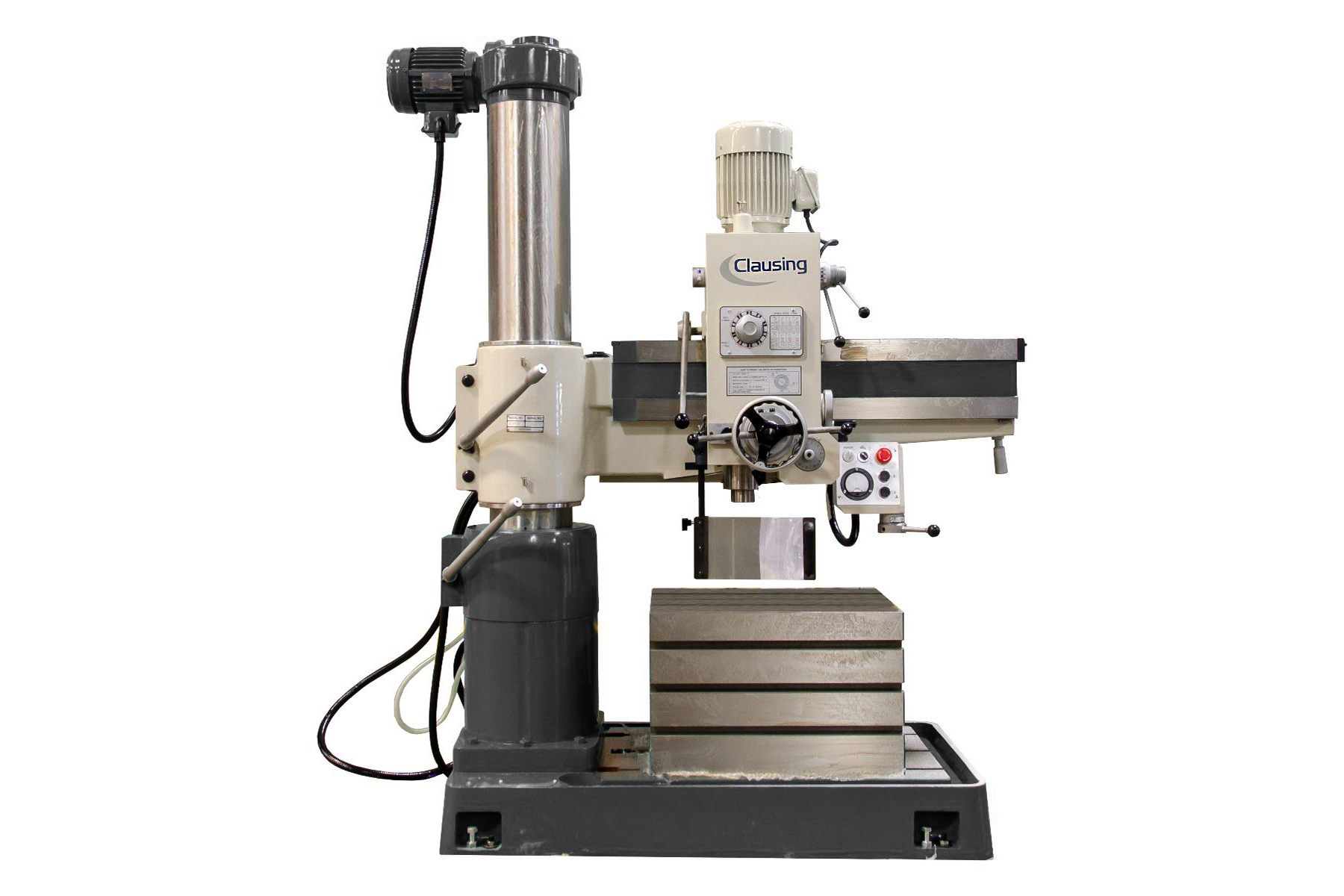

Clausing 230V Three Phase 33.5” Arm 6-Speed Radial Drill CL820A

Clausing 230V Three Phase 33.5” Arm 6-Speed Radial Drill CL820A is a Clausing Industrial product in the Drill Presses collection.

Product Details

• Spindle taper: MT4
• Spindle stroke: 8.66”
• Quill diameter: 2.95”
• Spindle speeds (6): 88, 154, 282, 455, 796, 1500 rpm
• Description
• Radial Arm Drills allow for drilling and boring small to massive holes in large oversized work pieces. Clausing’s Radial Drill design allows for the spindle head to move along the length of the arm and the arm height to be adjusted and rotated. This allows for precise drilling along many angles. Special spindle balance mechanism, superior to a traditional balance mechanism extends Balance Spring life.
• Hardened and ground steel gears, double walled column, large bearing surface for easy arm rotation, hardened steel wear strips for excellent head travel, power spindle feeds with an efficient coolant system, make Clausing Radial Drills your choice for the tough jobs.
• Features
• Limit safety switch for safe operation
• High speed gears are made of nickel-chrome steel and are heat-treated and ground for durability
• Powerful 2HP spindle drive motor for heavy-duty cutting
• Extra auxiliary dial for spindle feed depth indication, allows review of spindle feed depth, 0.094” to 7.874”
• Special spindle balance mechanism, superior to traditional balance mechanism and extends Balance Spring life
• Coolant system
• Work light
• Low volt and overload protection
• Toolkit and manuals
• 23”x17”x15” Box Table
• CSA Electrics (non-certified)(Spindle guard, UL safety door & main disconnect)
• CSA/UL listed motors
• Capacities
• Drilling Steel: 1.26” Cast iron: 2”
• Steel: 1.26”
• Cast iron: 2”
• Tapping Steel: 1” Cast iron: 1.26”
• Steel: 1”
• Cast iron: 1.26”
• Specifications
• Number of feeds: 3
• Spindle feed rate (in/rev): 0.002”, 0.0035”, 0.006”
• Column sleeve dia: 8.28”
• Column face to spindle center (min/max): 8.7” / 33.5”
• Spindle head travel: 24.8”
• Base surface to spindle end (min/max): 13.8” / 47.6”
• Arm vertical travel: 33.8”
• Arm rotation (right & left): 180°
• Max machine height: 91.3”
• Baseplate working surface: 35.5” x 25.3”
• Box table dims: 23.6” x 17.5” x 15”
• Base dims: 49.6” x 25.2” x 6.5”
• Spindle drive motor: 2HP
• Elevating motor: 1HP
• Coolant pump motor: 1/8HP
• Electrical Requirements: 230V Three Phase
• Machine Dims: 50” x 25” x 79”
• Approx Weight: 2,645 lbs
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• Large tilt table (CLS100)
• Small tilt table (CLS101)
• Extra large box table (CLS102)
• Extra standard box table (CLS102A)
• UL spindle motor 2HP normal brake system active at e-stop (CLS-SBM2UL)
• UL spindle motor 2HP power off brake system active at e-stop and forward/reverse lever (CLS-SBM2ULP)
• Auto reverse tapping feature 4MT (CLS-200)

Specifications

• Manufacturer: Clausing Industrial
• SKU: CL820A
• Shipping Method: LTL Freight
• Weight: 2,954 lb
• Dimensions: 66 × 33 × 87 in
