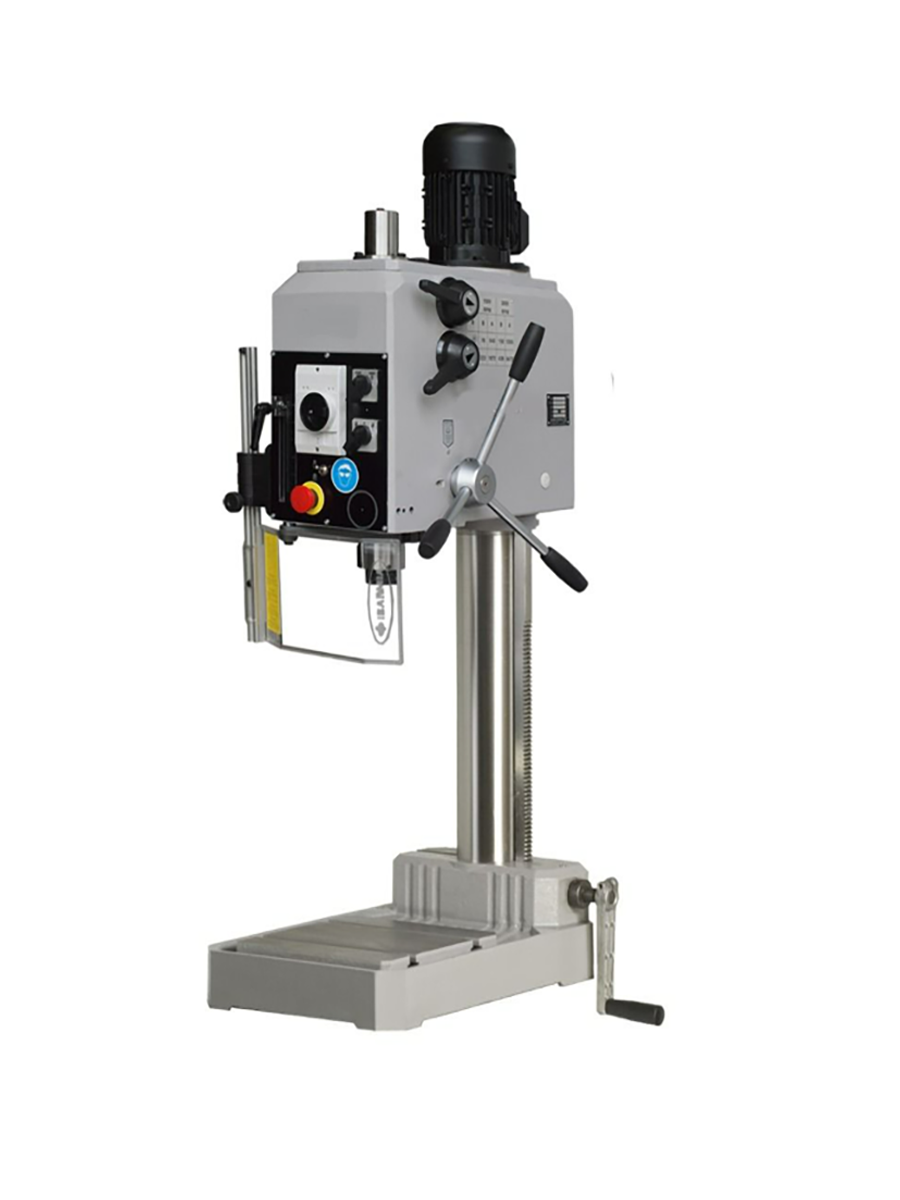

Clausing Erlo Belt-Drive 230V Three Phase 19.7” GH Manual-Feed 1/1.5HP Bench Drill Press with Auto Reverse Tapping TS25RS

Clausing Erlo Belt-Drive 230V Three Phase 19.7” GH Manual-Feed 1/1.5HP Bench Drill Press with Auto Reverse Tapping TS25RS is a Clausing Industrial product in the Drill Presses collection.

Product Details

• Spindle taper: 3MT
• Quill diameter: 2.44”
• Spindle travel (drilling depth): 4.72”
• Manual speed range (8 speed): 78-150-222-438-648-1266-1872-3672 rpm
• Description
• Clausing Erlo Geared Head Drill Press with state-of-the-art technology allows you to select the best rpm for the tool with easy to use shift handles. 8 speeds 78-3672 rpm for drilling large holes, small holes to spot-face, counter-bore, and ream. 2 speed selector switch for greater capacity production rated 1” in steel 1.18” in cast iron. The TS25RS adds the automatic tapping feature to this drill press. By setting a limit stop once the quill reaches this the spindle will automatically reverse.
• Features
• Depth scale and adjustable depth stop
• Thermomagnetic switch
• Spindle reversing switch
• Automatic tool ejector
• Emergency stop
• High/low speed range selector
• Drill guard with microswitch
• Automatic feed reversing system for tapping
• Capacities
• Drilling Steel: 1” Cast iron: 1.18”
• Steel: 1”
• Cast iron: 1.18”
• Tapping Steel: 0.71” Cast iron: 0.87”
• Steel: 0.71”
• Cast iron: 0.87”
• Specifications
• Feed: Manual
• Spindle center to column: 9.84”
• Spindle to table (min/max): 4.33”/19.7”
• Column diameter: 3.94”
• Main motor power: 1/1.5 HP
• Electrical Requirements: 230V Three Phase
• Machine Dims: 22” x 15” x 49”
• Approx Weight: 298 lbs
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• Rotating table (MIG-T)
• Fixed intermediate table (MIF-T)
• Auto thread system by master spdl (RHP-T)
• Master guide spindle & nut (HGP-T)
• Master guide spindle & nut special thrds (HGPS-T)
• Hydro-pneumatic power feed unit (HB-T)
• Front wheel for fine quill feed (VWH-T)
• Depth scale read-out system (LBC-T)
• Variable spd inverter w/digital RPM counter (VE-T)
• Coolant system in base (ERB-TS)
• Cross table (MB-1)
• Oversize table w/2 legs (MB-44)
• Solid fixed base table (MB-55)
• Floor cabinet w/shelves (PKA-T)
• Floor cabinet w/drawer (PKB-T)
• 3/16” to ¾” drill chuck with key (1897)
• 3JT to 3MT arbor for 1897 (1898)
• Emergency stop foot switch (PPE)
• Cycle start foot pedal (PST)
• Foot pedal for reversing (PSR)

Specifications

• Manufacturer: Clausing Industrial
• SKU: TS25RS
• Shipping Method: LTL Freight
• Weight: 353 lb
• Dimensions: 32 × 24 × 57 in
