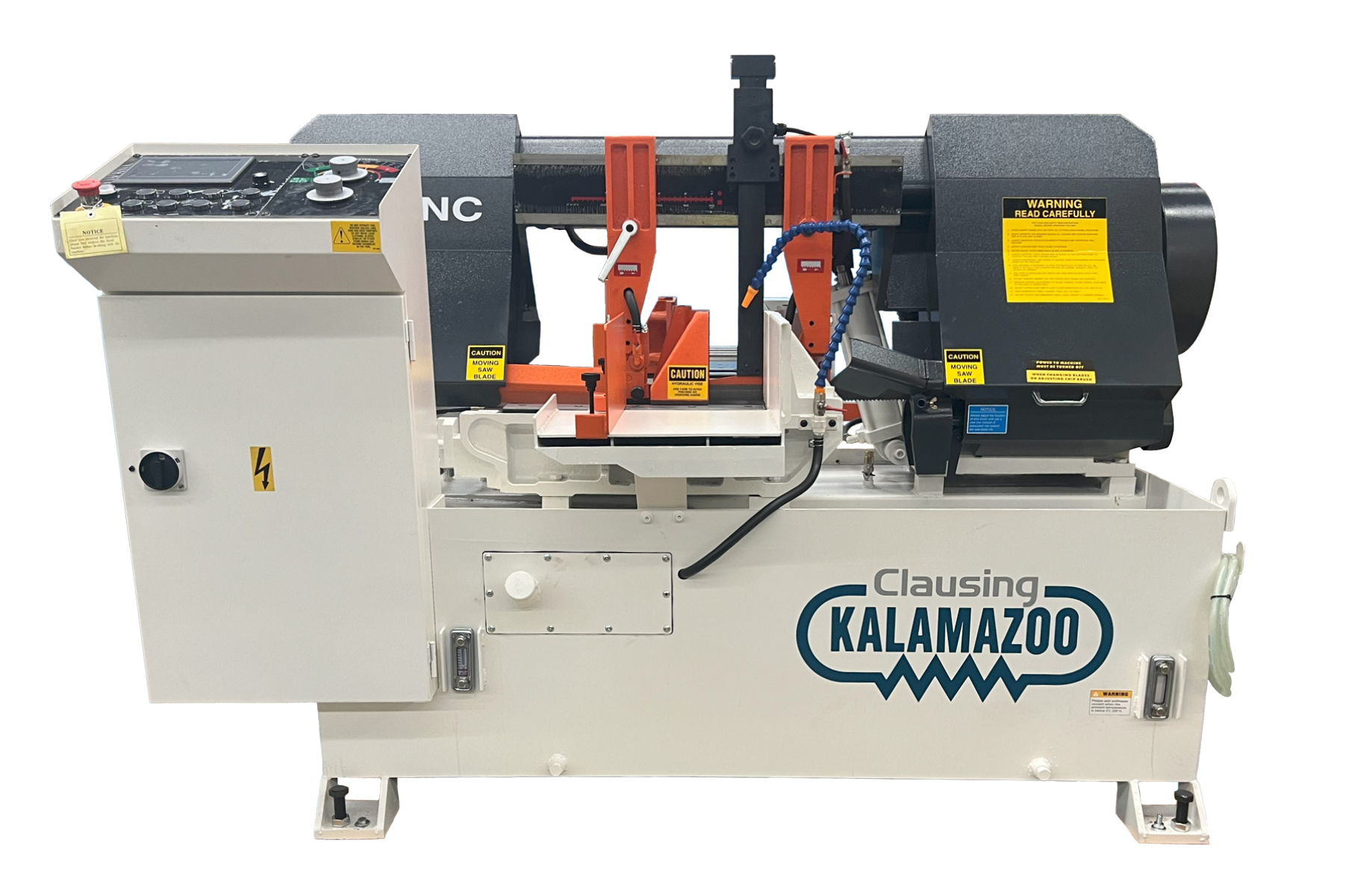

Clausing Kalamazoo 230V Three Phase 12” Variable Speed Automatic NC Hinge Type Horizontal Bandsaw KC12NC

Clausing Kalamazoo 230V Three Phase 12” Variable Speed Automatic NC Hinge Type Horizontal Bandsaw KC12NC is a Clausing Industrial product in the Band Saws collection.

Product Details

• Blade size: 1.25” x 0.042” x 150.4”.
• Blade speeds: 66-330 fpm
• Max feed: 650”
• Bed height: 26”
• Description
• This Automatic Horizontal Bandsaw is designed for rugged production use and it offers high production output and heavy-duty performance in fully automatic operation.
• A powerful drive motor provides the power and the Smart NC-100 technology programmable up to 100 different jobs.
• Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
• Features
• Oversized hydraulic cylinder
• Hydraulic shuttle vise assembly
• Inverter controlled infinitely variable speed
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• Smart NC-100 technology programmable up to 100 different jobs
• Easy recall and execution of stored parts
• Automatic shutoff after a preset number of cuts or when out of stock
• 5.7” HMI touch screen incorporating readout on blade speed, blade life, feed vise position and error code display for self-diagnostics
• Automatic kerf loss compensation & computer controlled multiple indexing
• Precision feed pressure & feed rate
• Bundle/single cutting mode switch
• Automatic height setting feature
• Hydraulic front and rear vises
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Adjustable cut-off stock fence
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads and an additional wire brush
• Operation and parts manual
• 90° Cutting Capacity
• Round: 11.81”
• Square: 11.81”
• Rectangular: 13.4” x 11.81”
• Specifications
• Blade speeds: 66-330 fpm (variable speed)
• Feed accuracy: ± 0.004” to 0.008”
• Length of remnant (manual): 0.79”
• Length of remnant (automatic): 1.97”
• Min cut thickness: 0.354”
• Bundle cutting (requires purchase of optional hydraulic bundle cutting attachment) Width: 7.48” x 11.81” Height: 2.75” to 5.51”
• Width: 7.48” x 11.81”
• Height: 2.75” to 5.51”
• Feed length/index: 15.86”
• Blade tension: hydraulic
• Coolant: recirculating
• Coolant capacity: 11.9 gallons
• Hydraulic oil capacity: 6.6 gallons
• Hydraulic pump motor: 1HP
• Electrical Requirements: 230V Three Phase 5HP
• Machine Dims: 84” x 86” x 77”
• Approx Weight: 2,977 lbs
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• Stock stand assembly (P10)
• Vise press regulator (VP12)
• Chip conveyor (CM1201N)
• Hydraulic bundle clamps (CM1202N)
• Roller tables, various sizes
• SAWZIT 1 gallon coolant (CSR1)
• SAWZIT 5 gallon coolant (CSR5)

Specifications

• Manufacturer: Clausing Industrial
• SKU: KC12NC
• Shipping Method: Flatbed
• Weight: 3,164 lb
• Dimensions: 90 × 90 × 65 in
