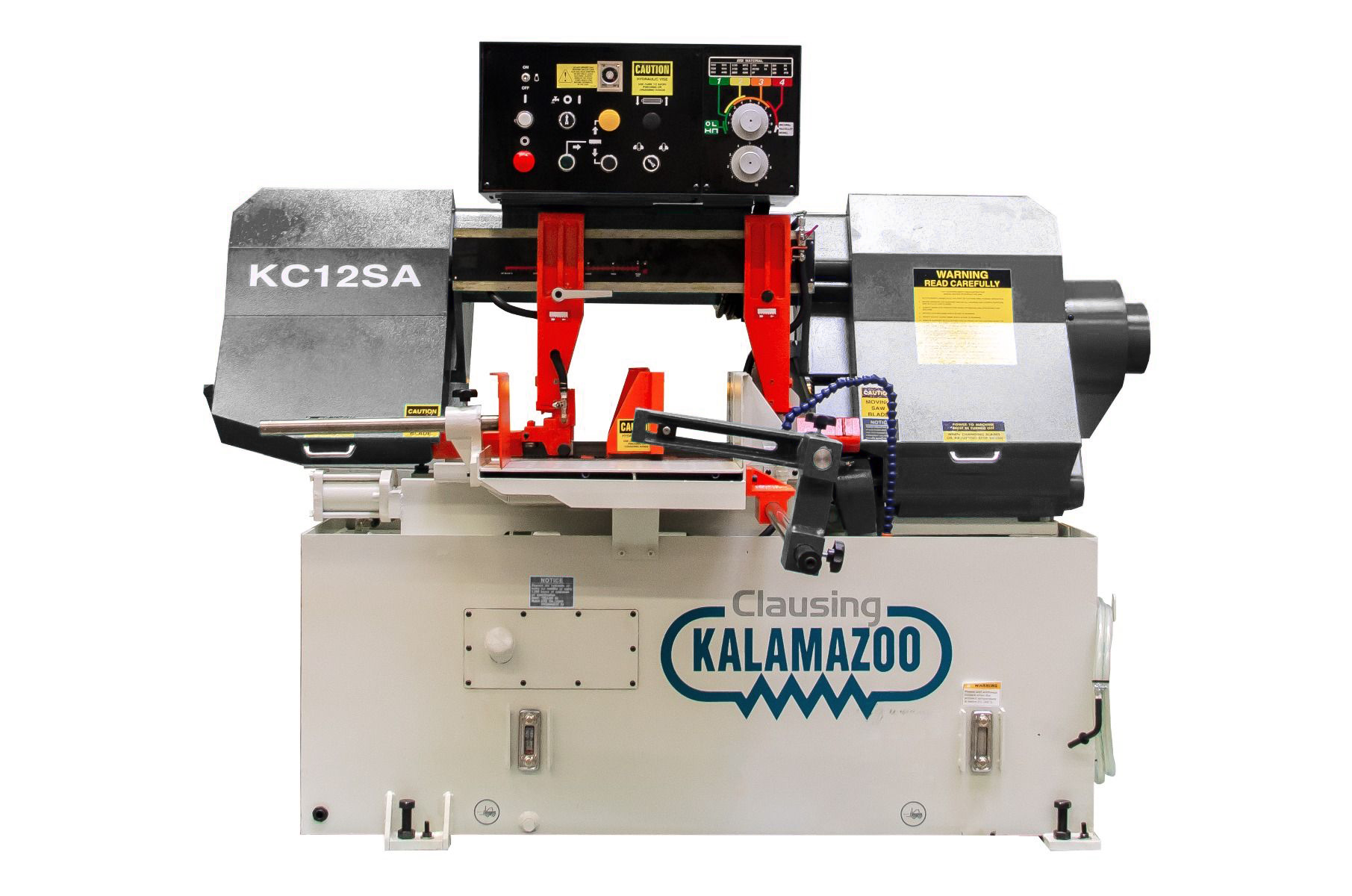

Clausing Kalamazoo 230V Three Phase 12”x12” Variable Speed Semi-Automatic Hinge Type Horizontal Bandsaw KC12SA
$15,876.25Current price is: $15,876.25.
- Band wheel diameter: 16”
- Blade size: 1.25” x 0.042” x 150.4”
- Blade speeds: 85-445 fpm (variable speed)
- Bed height (w/o pads): 29.5”
Clausing Kalamazoo 230V Three Phase 12”x12” Variable Speed Semi-Automatic Hinge Type Horizontal Bandsaw KC12SA is a Clausing Industrial product in the Band Saws collection.
Product Details
- Band wheel diameter: 16”
- Blade size: 1.25” x 0.042” x 150.4”
- Blade speeds: 85-445 fpm (variable speed)
- Bed height (w/o pads): 29.5”
- Description
- This Semi-Automatic Horizontal Bandsaw is designed for rugged production use and it offers high production output and heavy-duty performance in semi-automatic operation.
- A powerful drive motor provides the power and the infinitely variable blade speed gives the ability to generate heavy production jobs.
- Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
- Features
- Semi-automatic operation
- Infinitely variable blade speeds
- LED blade speed readout
- Vise clamps work piece both sides of blade
- Powered hydraulic down feed
- Automatic height setting feature
- Auto shutoff at end of cut
- Blade breakage/stoppage switch
- Hydraulic blade tension system
- 110V control circuit
- Overload protection
- 5HP 3PH Drive Motor
- Recirculating coolant system
- (1) general purpose bi-metal blade
- Stock stop assembly
- 1 gallon coolant
- Tool kit
- Operator’s manual and flushing hose for cleanup
- 90° Cutting Capacity
- Round: 12.75”
- Rectangular: 12.75” x 12.6”
- Specifications
- Bundle cutting (requires purchase of optional hydraulic bundle cutting attachment) Width: 6.5” x 10” Height: 2” to 8”
- Width: 6.5” x 10”
- Height: 2” to 8”
- Coolant: recirculating
- Coolant capacity: 10 gallons
- Hydraulic oil capacity: 6.5 gallons
- Hydraulic pump motor: 1HP
- Electrical requirements: 230V Three Phase 5HP
- Machine Dims: 47” x 75” x 73”
- Approx Weight: 2,039 lbs
- Optional Add-Ons
- Other voltages available (please contact a sales rep for more info)
- Stock stand assembly (P11)
- Vise pressure regulator single vise (VP12SA)
- Extra stock stop assembly (KC12-SSTP)
- Chip conveyor (CM1201)
- Hydraulic bundle clamps (CM1202)
- Roller tables, various sizes
- SAWZIT 1 gallon coolant (CSR1)
- SAWZIT 5 gallon coolant (CSR5)
Specifications
- Manufacturer: Clausing Industrial
- SKU: KC12SA
- Shipping Method: LTL Freight
- Weight: 2,260 lb
- Dimensions: 80 × 58 × 80 in
| Weight | 2260.0 lbs |
|---|---|
| Dimensions | 80.0 × 58.0 × 80.0 in |
| Brand | Clausing Industrial |
