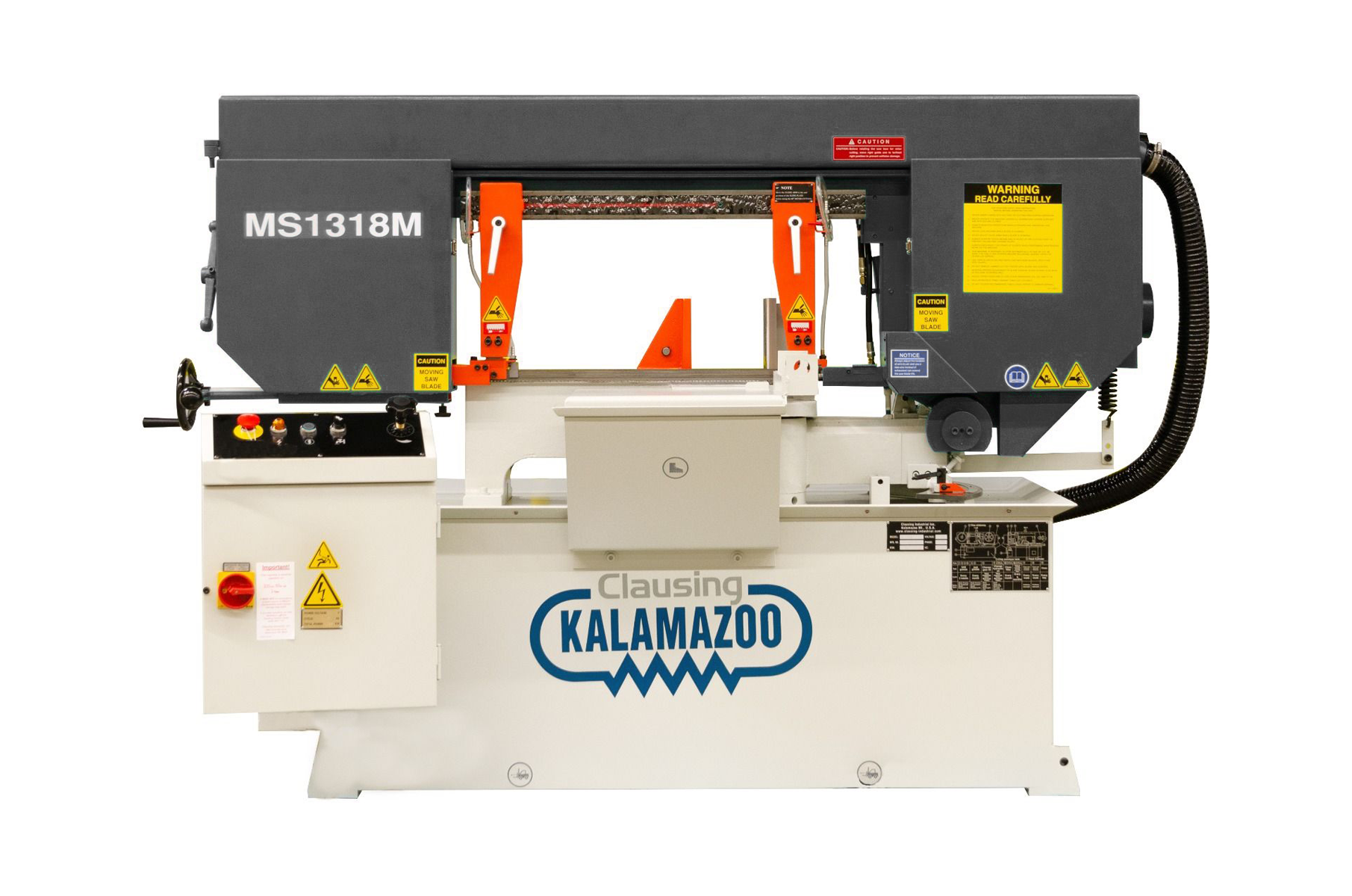

Clausing Kalamazoo 230V Three Phase 13”x18” Variable-Speed Manual Horizontal Miter Bandsaw MS1318M
$10,452.00Current price is: $10,452.00.
- Blade size: 1” x 0.035” x 163”
- Blade speed (variable): 98-328 FPM
- Swivel angle range: 0° to 60°
- Bed height: 32.3”
Clausing Kalamazoo 230V Three Phase 13”x18” Variable-Speed Manual Horizontal Miter Bandsaw MS1318M is a Clausing Industrial product in the Band Saws collection.
Product Details
- Blade size: 1” x 0.035” x 163”
- Blade speed (variable): 98-328 FPM
- Swivel angle range: 0° to 60°
- Bed height: 32.3”
- Description
- The Clausing Kalamazoo MS1318M Manual Horizontal Miter Bandsaw can allow the operator to accurately pivot head for angle cuts from 0°, for a 90° cut, to 60° cuts. The manual 4 speed step pulley drive will adjust the speed of the pulleys with a button or knob. As the 3HP drive motor with magnetic starter & overload protection.
- Features
- Swivel head allows the operator to accurately pivot head for angle cuts from 0° to 60°. Swing the head to desired angle without having to move the cutting material (stock can stay at 90° to saw bed)
- 3HP drive motor with magnetic starter & overload protection
- Manual vise clamping and raising the saw head at end of cut
- Carbide blade guides provide excellent stability for the saw blade
- Variable blade speed
- Chip brush removes chip from the blade extending blade life
- Integrated coolant system
- Cast iron moveable guide arms provide rigidity and stability for an accurate cut
- Quick action vise
- Flushing hose
- Adjustable work stop
- Tool box with tools
- Manual and parts list
- Cutting Capacities
- 90° Round: 13” Square: 11” Rectangular: 11” x 17.3”
- Round: 13”
- Square: 11”
- Rectangular: 11” x 17.3”
- 45ׄ° Round: 11.8” Square: 9.4” Rectangular: 11” x 9.4”
- Round: 11.8”
- Square: 9.4”
- Rectangular: 11” x 9.4”
- 60° Round: 8.6” Square: 8.6” Rectangular: 11” x 8.6”
- Round: 8.6”
- Square: 8.6”
- Rectangular: 11” x 8.6”
- Specifications
- Coolant motor: 1/8 HP
- Coolant capacity: 7.8 gallon
- Electrical Requirements: 230V Three Phase 3HP
- Machine Dims: 85” x 52” x 58”
- Approx Weight: 1,320 lbs
- Optional Add-Ons
- Other voltages available (please contact a sales rep for more info)
- Stock stand assembly (P10)
- Bandsaw blade tension gauge (BT01)
- Roller tables, various sizes
- SAWZIT 1 gallon coolant (CSR1)
- SAWZIT 5 gallon coolant (CSR5)
Specifications
- Manufacturer: Clausing Industrial
- SKU: MS1318M
- Shipping Method: LTL Freight
- Weight: 1,760 lb
- Dimensions: 89 × 57 × 63 in
| Weight | 1760.0 lbs |
|---|---|
| Dimensions | 89.0 × 57.0 × 63.0 in |
| Brand | Clausing Industrial |
