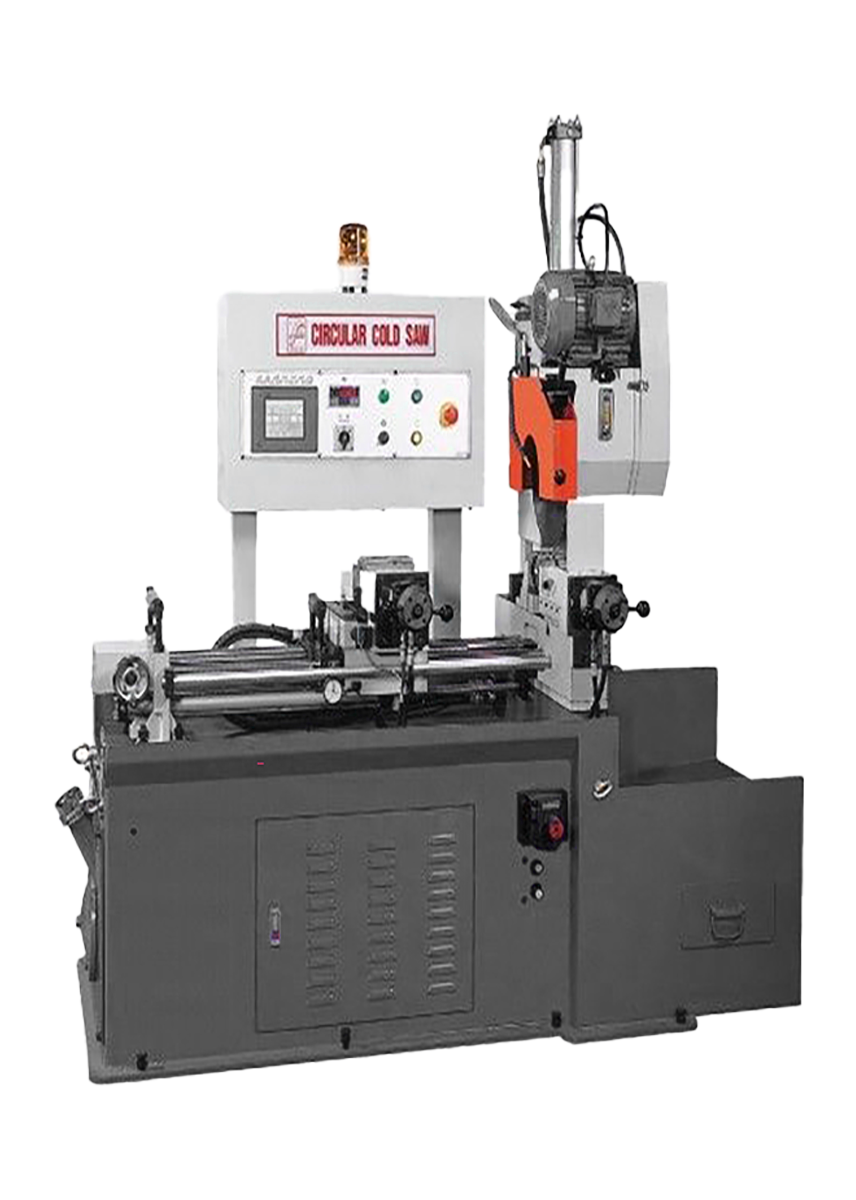

Clausing Kalamazoo 230V Three Phase 14” Automatic Ferrous Circular Cold Saw with 77” Barfeed Length FHC475AV

Clausing Kalamazoo 230V Three Phase 14” Automatic Ferrous Circular Cold Saw with 77” Barfeed Length FHC475AV is a Clausing Industrial product in the Cold Saws collection.

Product Details

• Blade Width: 0.118”
• Head Swivel: 90°
• Max Vise Clamping Capacity: 5.9”
• Blade Bore: 1.25”
• Description
• Ferrous model cold saws handle solid, tubing, or flat stock mild steel giving a burr free cut. Head position only at 90 degrees for fast set up. The 2 speed spindle motor along with blade tooth selection allows for various ferrous material cutting applications. Automatic operation allows for hands free operation of the material cutting and barfeed operation for material infeed.
• The unique self-centering vise keeps the material perfectly centered with the blade for absolutely perfect cuts.
• Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
• Features
• Totally enclosed fan-cooled motor
• Enclosed worm gear drive for trouble-free operation
• Two speed motor 2 speed gearbox for versatility
• 3HP hydraulic system
• Automatic cutting cycle
• Automatic feed rate cycle
• Cast iron construction
• Self-centering bise with angle scale
• Head rotates 90° left and right of center
• Flood coolant system
• Foot pedal cycle start
• Heavy duty sheet metal base
• Adjustable stock stop
• Circular saw blade
• Tool kit
• Fully guarded blade area
• Interlocking door guards
• Operation and maintenance manual
• Specifications
• Machine Style: Automatic
• Drive Type: gear box w/worm gear
• Blade Size: 14” Min/Max Blade Size: 10” – 17”
• Min/Max Blade Size: 10” – 17”
• Barfeed Length w/multiple stroke: 0.19” – 77”
• Saw Clamping Vise: Single
• Spindle Speed, 4 speeds Low: 70/35 RPM High: 120/60 RPM
• Low: 70/35 RPM
• High: 120/60 RPM
• Drive Motor, 2 Speed: 5HP / 3HP
• Control: 110V
• Coolant System: Yes 1/8HP
• 2 Pin Holes: 0.433” x 2.48”
• Hydraulic Motor: 3HP
• Operation Pressure: 355-497 PSI
• Electrical Requirements: 230V Three Phase
• Machine Dims: 77” x 51” x 79”
• Approx Weight: 2,970 lbs
• Cutting Capacities @ 90°
• Round Tube: 4.33”
• Square Tube: 3.93”
• Rectangular Tube: 4.33” x 1.97”
• Round Solid: 2.36”
• Square Solid: 1.97”
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• CE Interlocking Safety Switches on Guard-EA Guard (FH-20)
• Stock Stand Assembly 37” – 46” (P12)
• Roller Stock Table 6” x 5’ (KSA64)
• Roller Stock Table 6” x 10’ (KSA63)
• SAWZIT 1 Gallon (CSR1)
• SAWZIT 5 Gallon (CSR5)
• Various Blade Sizes

Specifications

• Manufacturer: Clausing Industrial
• SKU: FHC475AV
• Shipping Method: LTL Freight
• Weight: 3,410 lb
• Dimensions: 87 × 51 × 87 in
