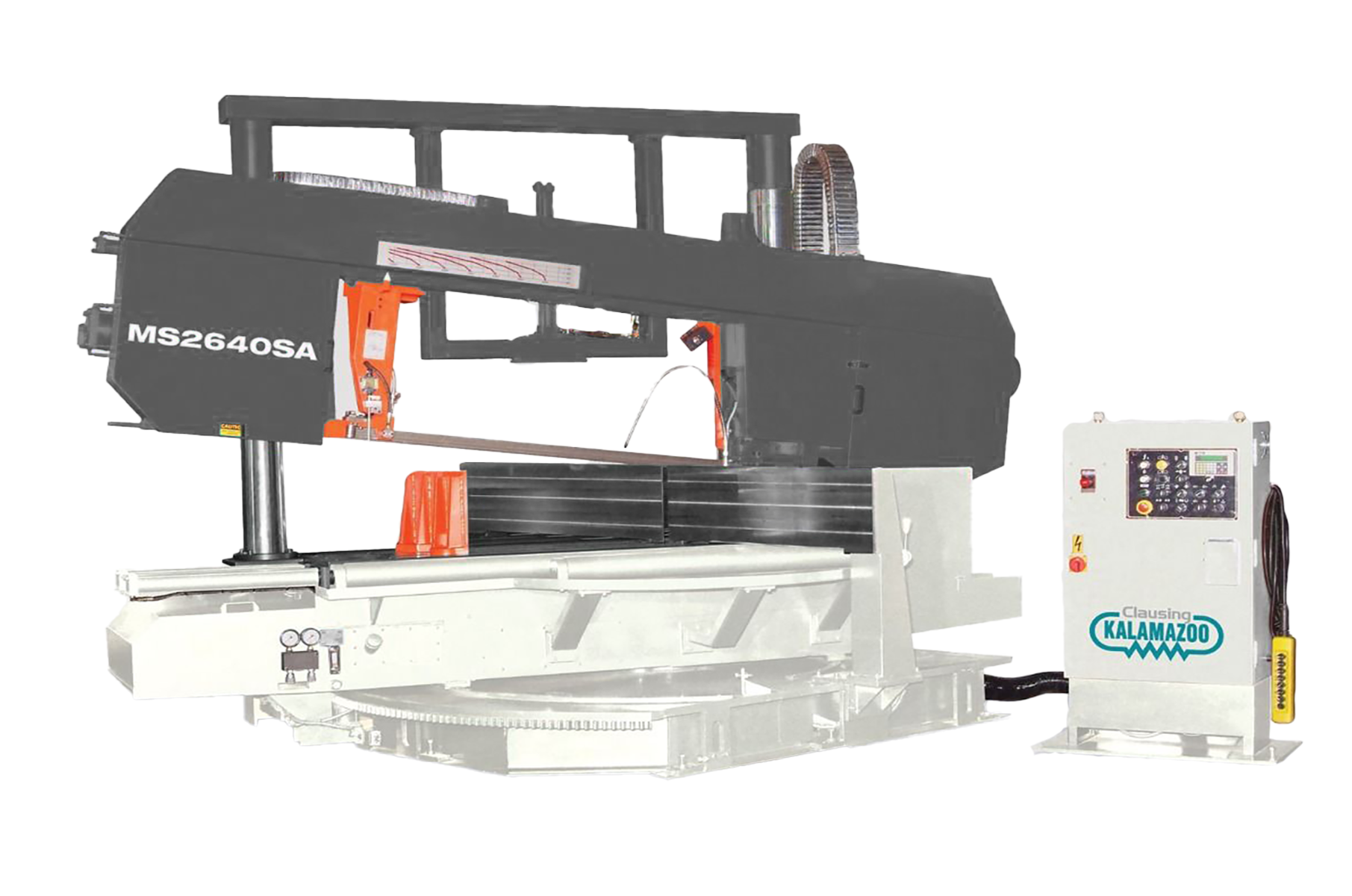

Clausing Kalamazoo 230V Three Phase 26”x40” Variable-Speed Semi-Automatic Twin-Column Double Miter Horizontal Bandsaw MSD2640SA
$61,997.50Current price is: $61,997.50.
- Blade size: 2” x 0.063” x 326.8”
- Blade speeds (variable): 49-295 FPM
- Bed height: 31.9”
- Hydraulic pump motor: 3HP
Clausing Kalamazoo 230V Three Phase 26”x40” Variable-Speed Semi-Automatic Twin-Column Double Miter Horizontal Bandsaw MSD2640SA is a Clausing Industrial product in the Band Saws collection.
Product Details
- Blade size: 2” x 0.063” x 326.8”
- Blade speeds (variable): 49-295 FPM
- Bed height: 31.9”
- Hydraulic pump motor: 3HP
- Description
- This semi-automatic inverter controlled infinitely variable blade speed miter bandsaw can allow for power vise clamping, head rise, and lowering. Precision pivot system facilitates easy and accurate adjustment for angle cuts. Heavy duty, rigid saw frame supported by two large bore hydraulic cylinders.
- Features
- Swivel sawhead mitering from 90° to 60°
- Precision ground, oversized round column design
- 7.5 degree blade cant for longer blade life
- Heavy duty, rigid saw frame supported by two large bore hydraulic cylinders
- Cross link connecting the two columns for enhanced structural strength
- 45° forward and backward swivel with automatic angle lock-in
- Specially designed gearbox for smooth and powerful cutting
- Heavy duty inverter blade drive system
- Easy to read LED speed indicator
- Hydraulically operated carbide blade guides
- Two additional bearings for extra support of the blade
- Automatic hydraulic blade tensioning device
- Hydraulically actuated guide arm
- Integral coolant system
- Synchronized power driven blade brush
- Independent control station
- Precision feed pressure & feed rate dual valve system
- “Last cut” or “keep on” selector switch
- Vise pressure detector
- Hydraulically powered material infeed lift roller
- Idle roller work table for material feeding
- Light projection for precise length measurement
- Two full stroke cylinder vises
- Proximity switch for sensing blade slippage or breakage
- Electrical and hydraulic safety interlock
- Conduits protection
- Bi-metal saw blade
- Toolbox, leveling pads, and an additional wire brush
- Operation & parts manual
- Cutting Capacities
- 90° Round: 26” Rectangular: 20.5” x 40”
- Round: 26”
- Rectangular: 20.5” x 40”
- 45° Round: 23” Rectangular: 20.5” x 24.4”
- Round: 23”
- Rectangular: 20.5” x 24.4”
- 60° Round: 15.7” Rectangular: 21.3” x 15.7”
- Round: 15.7”
- Rectangular: 21.3” x 15.7”
- Specifications
- Hydraulic oil capacity: 15.6 gallons
- Blade tension: hydraulic
- Coolant: recirculating
- Coolant capacity: 26 gallons
- Electrical Requirements: 230V Three Phase 10HP
- Machine Dims: 148’ x 154” x 109”
- Approx Weight: 9,460 lbs
- Optional Add-Ons
- Other voltages available (please contact a sales rep for more info)
- Stock stand assembly (P11)
- Vise pressure regulator single vise (VP26SAS)
- Chip conveyor (CM2601M)
- Hydraulic bundle clamp (CM2602M)
- Roller tables, various sizes
- SAWZIT 1 gallon coolant (CSR1)
- SAWZIT 5 gallon coolant (CSR5)
Specifications
- Manufacturer: Clausing Industrial
- SKU: MSD2640SA
- Shipping Method: Flatbed
- Weight: 12,254 lb
- Dimensions: 153 × 159 × 114 in
| Weight | 12254.0 lbs |
|---|---|
| Dimensions | 153.0 × 159.0 × 114.0 in |
| Brand | Clausing Industrial |
