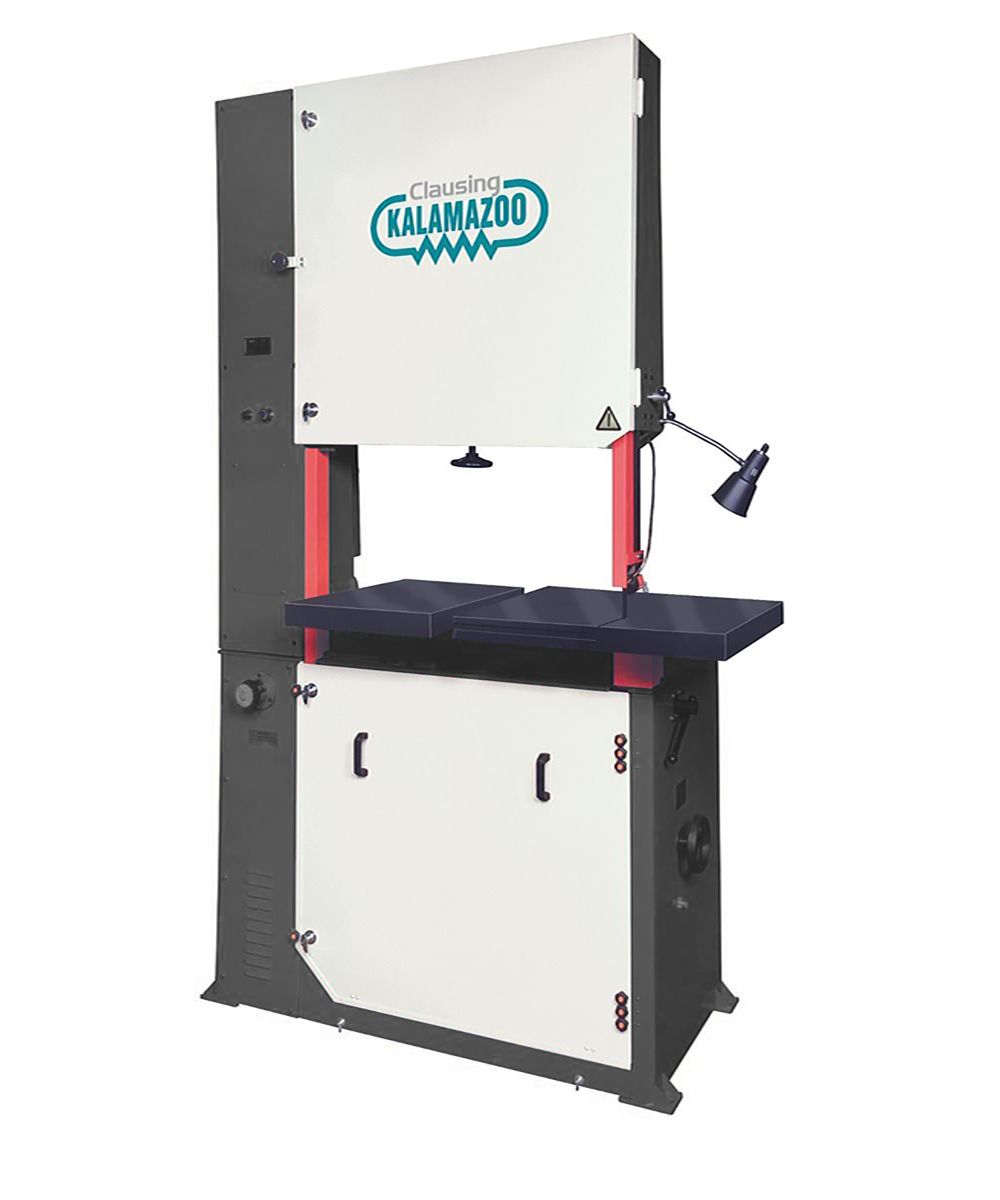

Clausing Kalamazoo 230V Three Phase 40” Vertical Bandsaw with Fixed Tilting Table V4014F
$15,497.50Current price is: $15,497.50.
- Throat: 40”
- Table height: 54”
- Blade speed: 50-5200 FPM
- Table Tilt: 15°L / 15°R
Clausing Kalamazoo 230V Three Phase 40” Vertical Bandsaw with Fixed Tilting Table V4014F is a Clausing Industrial product in the Band Saws collection.
Product Details
- Throat: 40”
- Table height: 54”
- Blade speed: 50-5200 FPM
- Table Tilt: 15°L / 15°R
- Description
- The Vertical Saw comes with a heavy duty cast iron table with two way tilt (15°L / 15°R), solid table surface. The dual range transmission driven by 5HP motor provides high torque and speed control. CE approved design.
- Features
- Magnetic starter with 110V control circuit and overload protection
- 5HP TEFC motor with brake (full stop from max speed within approx. 10 seconds)
- Dual range transmission
- Sets of (4) Chevron type blade guides, sizes 1/16”, 1/8”, 3/16”, ¼”, 3/8”, ½”, 5/8”, ¾”, and 1” back-up rollers in blade guide brackets
- 29½” x 27½” heavy duty cast iron table with two-way tilt (15°L/15°R) solid table surface
- Auxiliary table 19” x 26¾”
- Bonded rubber band wheels
- 110V work light
- Built-in air chip blower
- Blade tension indicator
- Blade speed indicator
- Rip fence
- 1” carbon hardback blade
- Locking band wheel doors
- Operation & parts manual
- Specifications
- Work height: 14”
- Blade length: 262.5” – 263”
- Blade width: 1/8” – 1¼”
- Band wheel diameter: 40” (2 wheel)
- Drive motor: 5HP
- Electrical Requirements: 230V Three Phase 60Hz
- Machine Dims: 72” x 41” x 113”
- Approx Weight: 2,976 lbs
- Optional Add-Ons
- 460V Three Phase unit available (please contact a sales rep for more info)
- Extra rip fence (KM388)
- Miter gauge fixed table (KM198)
- Miter gauge hydraulic table (KM198H)
- Circle cutting attachment (KM260)
- Clausing installed welder, shear, grinder
- Extra Chevron guide inserts, various sizes
- Roller tables, various sizes
Specifications
- Manufacturer: Clausing Industrial
- SKU: V4014F
- Shipping Method: LTL Freight
- Weight: 3,395 lb
- Dimensions: 76 × 45 × 118 in
| Weight | 3395.0 lbs |
|---|---|
| Dimensions | 76.0 × 45.0 × 118.0 in |
| Brand | Clausing Industrial |
