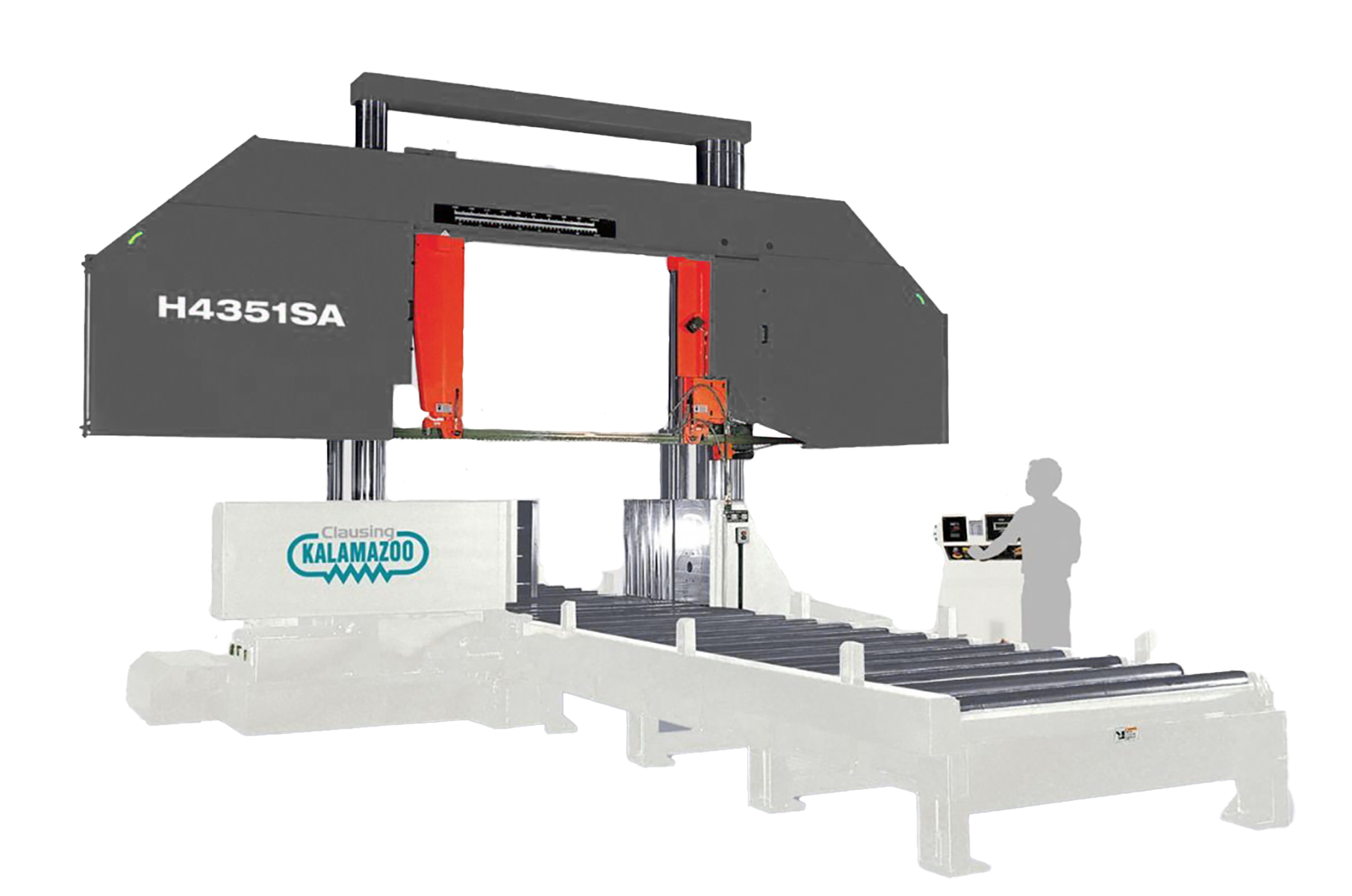

Clausing Kalamazoo 230V Three Phase 43” Double-Column Variable-Speed Semi-Automatic Horizontal Bandsaw H4351SA

Clausing Kalamazoo 230V Three Phase 43” Double-Column Variable-Speed Semi-Automatic Horizontal Bandsaw H4351SA is a Clausing Industrial product in the Band Saws collection.

Product Details

• Blade Speeds (variable): 49 – 264 fpm
• Blade Size: 3” x 0.063” x 433”
• Coolant Capacity: 44 gallons
• Bed Height: 24.4”
• Description
• This model is designed for rugged production use and it offers high production output and heavy-duty performance in semi-automatic operation.
• Dual column design with precision ground columns ensures smooth saw frame movement and consistent cutting force throughout the cutting cycle.
• Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
• Features
• The extra heavy-duty saw frame is supported by two large bore hydraulic cylinders, providing unsurpassed rigidity and the smoothest cutting possible
• Specially designed planetary gear reducer for optimum mechanical efficiency
• Inverter controlled infinitely variable blade speed with blade speed indicator
• Independent wire brush drive system
• Hydraulically powered guide arm is position from the control panel
• Hydraulic blade tension system with easy to read pressure gauge
• Carbide blade guides are activated hydraulically
• Additional blade guiding bearings for extra support
• Heavy cast iron moveable guide arm is hydraulically powered from the control panel
• Shut off function
• Precision feed pressure control valve with micro-precision adjustment
• Saw blade height selector
• Hydraulic driven work bed with rollers for moving large material safely
• Three sets of vise designs. The front and middle vises hold the stock during cutting while the guide vise can be separately controlled to guide the material during feeding cycle
• Stock position cylinder pushes stock away from fixed vise for easy material handling
• Shadow light for material measurement
• Blade breakage and/or slippage detector
• Bi-metal saw blade
• Toolbox, leveling pads, and an additional wire brush
• Operation & parts manual
• Specifications
• Machine Style: Semi-Automatic
• Drive Type: Inverter drive with infinitely variable blade speeds with blade speed indicator
• Hydraulic Pump Motor: 3HP
• Hydraulic Oil Capacity: 35 gallons
• Blade Tension: hydraulic
• Coolant: recirculating
• Coolant Pump Motor: ½HP
• Electrical Requirements: 230V Three Phase 15HP
• Machine Dims: 87” x 193” x 138”
• Approx Weight: 30,140 lbs
• Cutting Capacities @ 90°
• Round: 43.5”
• Square: 43.35”
• Rectangular: 43.3” x 51.2”
• Optional Add-Ons
• Other voltages available (please contact a sales rep for more info)
• Vise Pressure Regulator Single Vise (VP43SA)
• Hydraulic Driven Chip Conveyor (CM4301H)
• Hydraulic Bundle Clamp (CM3402H)
• Blade Deviation Detector (H43-BDD)
• Laser Light (H43-LL)
• 118” Manual Roller Table (H43-118RT)
• 118” Powered Roller Table (H43-118RTP)
• SAWZIT 1 Gallon (CSR1)
• SAWZIT 5 Gallon (CSR)

Specifications

• Manufacturer: Clausing Industrial
• SKU: H4351SA
• Shipping Method: Flatbed
• Weight: 33,455 lb
• Dimensions: 90 × 200 × 145 in
