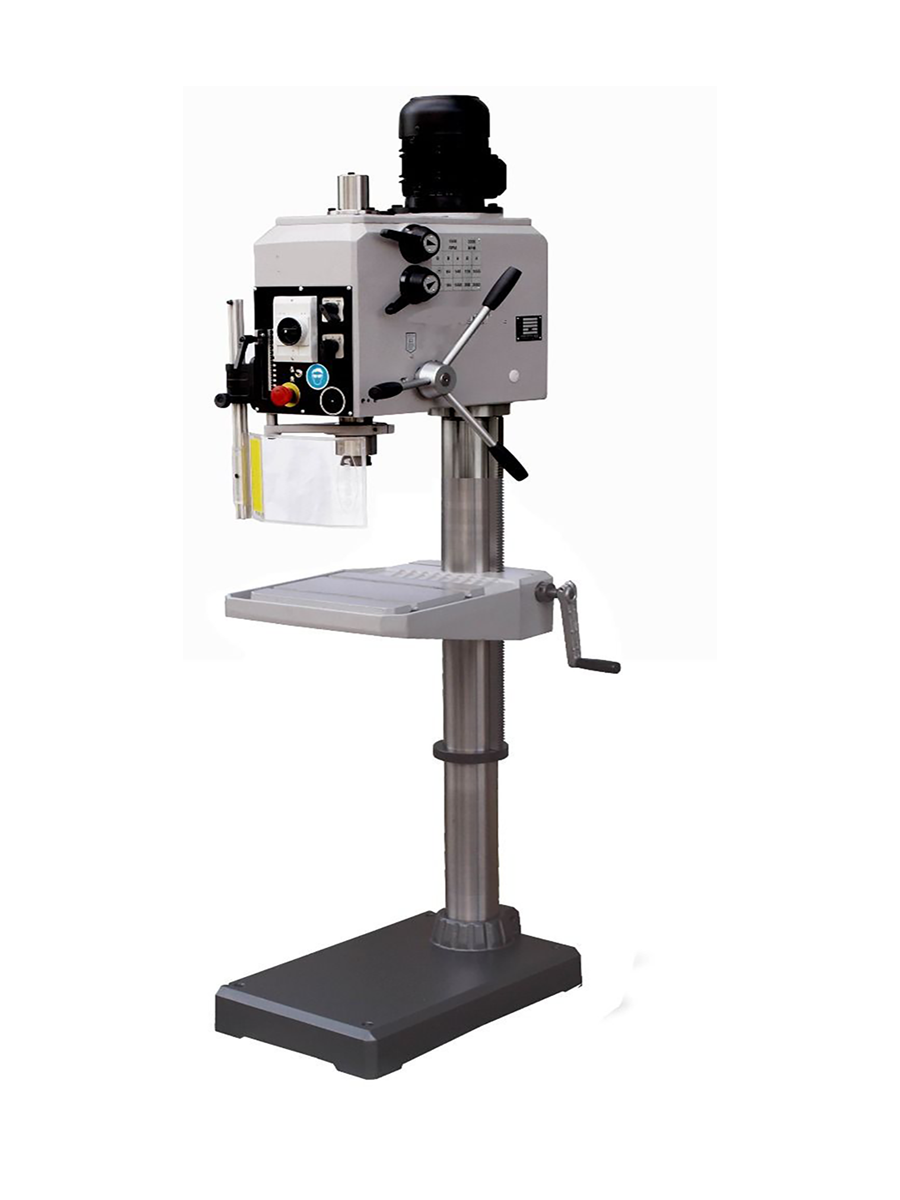

Clausing Production Series 220V Single Phase 19.7” VS Manual-Feed 1/1.5HP Floor Drill Press TL25/1
$9,097.50Current price is: $9,097.50.
- Spindle taper: 3MT
- Quill diameter: 2.44”
- Spindle travel (drilling depth): 4.72”
- Variable speed range (4 speed): (A) 45-125, (B) 125-370, (C) 380-1070, (D) 1100-3100 rpm
Clausing Production Series 220V Single Phase 19.7” VS Manual-Feed 1/1.5HP Floor Drill Press TL25/1 is a Clausing Industrial product in the Drill Presses collection.
Product Details
- Spindle taper: 3MT
- Quill diameter: 2.44”
- Spindle travel (drilling depth): 4.72”
- Variable speed range (4 speed): (A) 45-125, (B) 125-370, (C) 380-1070, (D) 1100-3100 rpm
- Description
- Clausing Erlo Geared Head Drill Press with state-of-the-art technology allows you to select the best rpm for the tool with easy to use shift handles. 4 variable speeds 45-3100 rpm for drilling large holes, small holes to spot-face, counter-bore, and ream. 2 speed selector switch for greater capacity production rated 1” in steel 1.18” in cast iron.
- Features
- Depth scale and adjustable depth stop
- Thermomagnetic switch
- Spindle reversing switch
- Automatic tool ejector
- Emergency stop
- High/low speed range selector
- Drill guard with microswitch
- Capacities
- Drilling Steel: 1” Cast iron: 1.18”
- Steel: 1”
- Cast iron: 1.18”
- Tapping Steel: 0.71” Cast iron: 0.87”
- Steel: 0.71”
- Cast iron: 0.87”
- Specifications
- Feed: Manual
- Base to spinde: 47.6”
- Spindle center to column: 9.84”
- Spindle to table (min/max): 4.13”/25.2”
- Worktable dims: 11.8” x 10.6”
- Column diameter: 3.94”
- Main motor power: 1/1.5 HP
- Electrical Requirements: 220V Single Phase
- Machine Dims: 24” x 15” x 76”
- Approx Weight: 550 lbs
- Optional Add-Ons
- Other voltages available (please contact a sales rep for more info)
- Rotating table (MG-T)
- Auto thread system by master spdl (RHP-T)
- Master guide spindle & nut (HGP-T)
- Master guide spindle & nut special thrds (HGPS-T)
- Hydro-pneumatic power feed unit (HB-T)
- Front wheel for fine quill feed (VWH-T)
- Depth scale read-out system (LBC-T)
- Variable spd inverter w/digital RPM counter (VE-T)
- 7.8” column riser (SC-T)
- Coolant system in base (ERB-TL)
- Cross table (MB-1)
- Oversize table w/2 legs (MB-44)
- Solid fixed base table (MB-55)
- 3/16” to ¾” drill chuck with key (1897)
- 3JT to 3MT arbor for 1897 (1898)
- Emergency stop foot switch (PPE)
- Cycle start foot pedal (PST)
Specifications
- Manufacturer: Clausing Industrial
- SKU: TL25/1
- Shipping Method: LTL Freight
- Weight: 685 lb
- Dimensions: 32 × 24 × 85 in
| Weight | 685.0 lbs |
|---|---|
| Dimensions | 32.0 × 24.0 × 85.0 in |
| Brand | Clausing Industrial |
