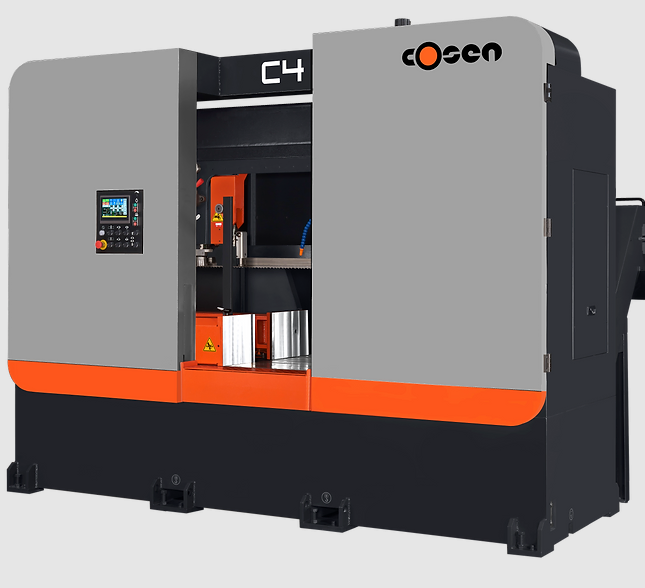

Cosen 18″ C-Tech Fully Automatic Enclosed Horizontal Dual Post Band Saw with SNC-100 & V-Drive C-4
$78,516.75Current price is: $78,516.75.
- Blade Speed: 65 – 393 FPM
- Blade Size (L x W x T): 19' 9.2" x 2" x 0.050"
- Blade Motor: 10 HP
- Coolant Motor: 1/2 HP
Cosen 18″ C-Tech Fully Automatic Enclosed Horizontal Dual Post Band Saw with SNC-100 & V-Drive C-4 is a Cosen product in the Band Saws collection.
Product Details
- Blade Speed: 65 – 393 FPM
- Blade Size (L x W x T): 19' 9.2" x 2" x 0.050"
- Blade Motor: 10 HP
- Coolant Motor: 1/2 HP
- COSEN C-TECH SERIES BAND SAWS
- All C-Tech series band saws feature Cosen's NC control system. The programming allows for an automatic first (square) cut, storage of up to 100 jobs, plus all other features included on the SNC-100 control system. The saw frame rides on linear guide ways (rails) and, depending on the model, will utilize a ball screw or a hydraulic system. These designs help to give the frame a rigid base thereby ensuring the smoothest feeding, highest precision, and lowest friction guide system available today. With their rugged and dependable enclosed frame designed for safety and their advanced technology, Cosen's C-Tech Series band saws are the perfect enclosed saws for mass production settings.
- Features
- High precision linear guideway design (Ballscrew)
- Inverter blade drive system which allows infinitely variable blade speeds
- 7" HMI touchscreen
- Adjustable flood coolant system
- Motor driven, synchronized wire blade brush
- Carbide blade guides and bearing provides additional blade support
- Rigid cast-iron guide arms
- Automatic hydraulic blade tensioning device
- Cast-iron hydraulic vise
- Vibration damper
- Ballscrew fed saw travel and rate for optimal cutting performance
- Computer controlled multiple indexing up to 999” max length
- Specifications
- Capacities Round: 18.1" Rectangular (H x W): 18.1" x 19.6"
- Round: 18.1"
- Rectangular (H x W): 18.1" x 19.6"
- Coolant Tank Capacity: 31.68 gal
- Hydraulic Tank Capacity: 15.84 gal
- Workbed Height: 27.76"
- Weight: 8,377 lbs.
- Floorspace (L x W x H): 78.75" x 116" x 92.7"
Specifications
- Manufacturer: Cosen
- SKU: C-4
- Shipping Method: Flatbed
- Weight: 8,477 lb
- Dimensions: 84 × 120 × 98 in
- Country of Origin: Taiwan
- Warranty: 2 Years (Parts) / 1 Year (Labor)
| Weight | 8477.0 lbs |
|---|---|
| Dimensions | 84.0 × 120.0 × 98.0 in |
| Brand | Cosen |
