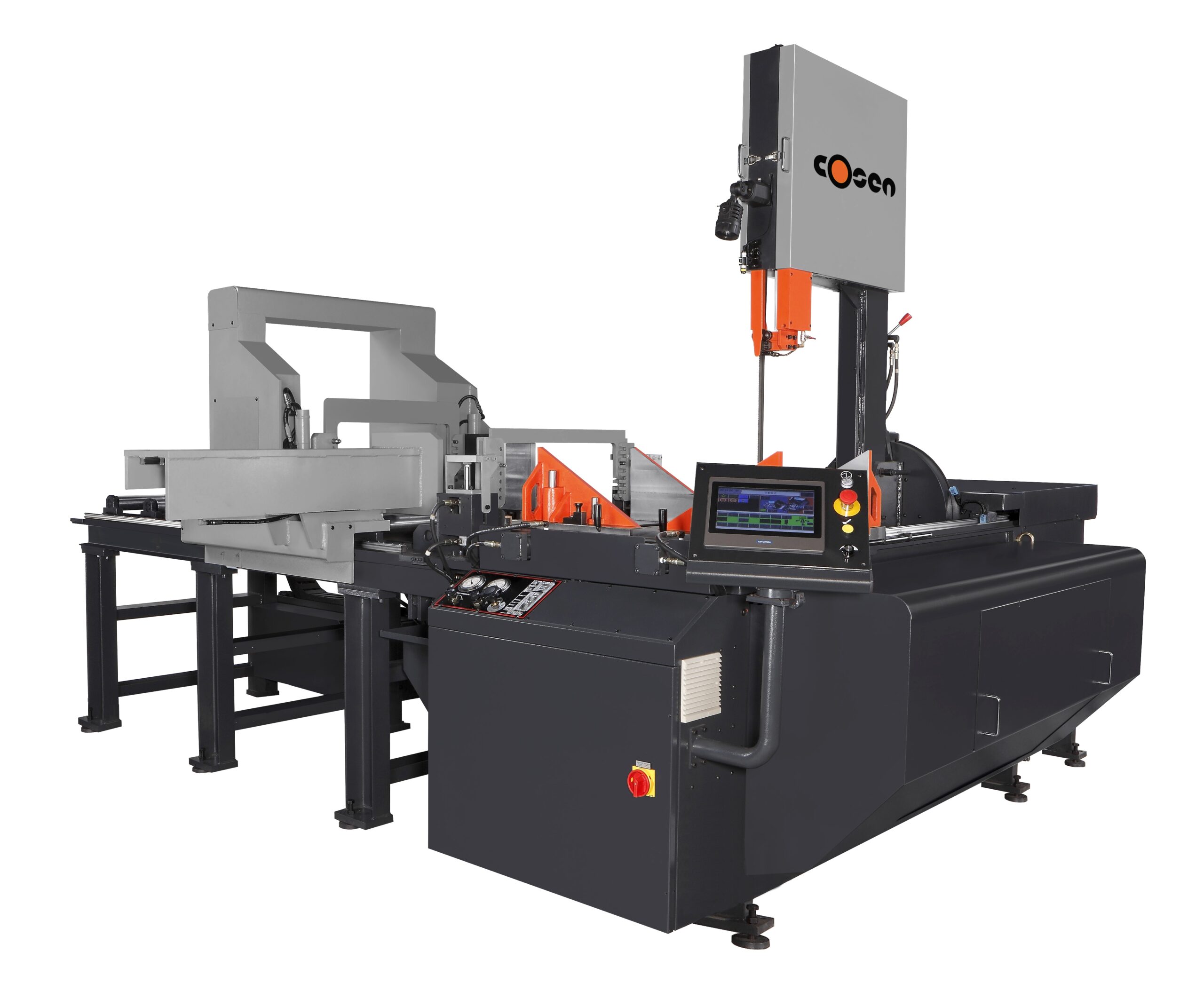

Cosen 20″ x 26″ NC Programmable Automatic Dual Mitering Vertical Tilt Frame Band Saw AV-2026NC
$85,458.75Current price is: $85,458.75.
- Blade Speed: 50 – 330 FPM
- Capacity at 0°: 20” x 26.4”
- Blade Motor: 7.5 HP
- Workbed Height: 39.4"
Cosen 20″ x 26″ NC Programmable Automatic Dual Mitering Vertical Tilt Frame Band Saw AV-2026NC is a Cosen product in the Band Saws collection.
Product Details
- Blade Speed: 50 – 330 FPM
- Capacity at 0°: 20” x 26.4”
- Blade Motor: 7.5 HP
- Workbed Height: 39.4"
- Description
- Cosen offers a full line of vertical tilt-frame band saws in both semi-automatic and fully automatic styles, and offer machines in a variety of cutting capacities. All of Cosen's tilt-frame saws are built on a heavy duty saw frame and are designed to help reduce vibration during the cut and improve cutting performance. Each saw comes with the capability of cutting angles between 90° (straight cut) and 60° in both directions. All saws in the Tilt-Frame series also come standard with an automatic angle adjust built into the HMI to help make the cutting process simpler. Cosen's Vertical Tilt-Frame saws are excellent options for any fabrication production shop looking to make a transition into the vertical saw market.
- Features
- Hydraulic tilt-frame head allows miter cutting from 0 degrees to plus/minus 60 degrees
- Adjustable head cant from 0 to 5 Degrees
- Gearbox designed to accept high lateral pressure (no thermal distortion)
- Inverter blade drive system which allows infinitely variable blade speeds
- 5.7” HMI touchscreen
- Adjustable flood coolant system
- Motor driven, synchronized wire blade brush
- Carbide blade guides and bearing provides additional blade support
- Rigid cast-iron guide arm
- Hydraulic blade tensioning device
- Cast-iron hydraulic vise
- Save-A-Blade feature
- Computer controlled multiple indexing up to 999” max length
- 57" single stroke indexing (Ball Screw)
- Specifications
- Capacity Angle: 0° Blade Cant 0° – 20" x 26.4" 45° Left – 20" x 18.3" 60° Left – 20" x 12.8" 45° Right – 20" x 17.1" 60° Right – 20" x 10.4" 5° Blade Cant 0° – 20" x 24" 45° Left – 20" x 16.7" 60° Left – 20" x 11.8" 45° Right – 20" x 15.7" 60° Right – 20" x 10"
- 0° Blade Cant 0° – 20" x 26.4" 45° Left – 20" x 18.3" 60° Left – 20" x 12.8" 45° Right – 20" x 17.1" 60° Right – 20" x 10.4"
- 0° – 20" x 26.4"
- 45° Left – 20" x 18.3"
- 60° Left – 20" x 12.8"
- 45° Right – 20" x 17.1"
- 60° Right – 20" x 10.4"
- 5° Blade Cant 0° – 20" x 24" 45° Left – 20" x 16.7" 60° Left – 20" x 11.8" 45° Right – 20" x 15.7" 60° Right – 20" x 10"
- 0° – 20" x 24"
- 45° Left – 20" x 16.7"
- 60° Left – 20" x 11.8"
- 45° Right – 20" x 15.7"
- 60° Right – 20" x 10"
- Blade Size (LxWxT): 17' 1.9" x 1.25" x .042
- Coolant Motor: 1/4 HP
- Weight: 8,507 lbs
- Floorspace (LxWxH): 179.3" x 134.3" 101.2"
Specifications
- Manufacturer: Cosen
- SKU: AV-2026NC
- Shipping Method: Flatbed
- Weight: 5,093 lb
- Dimensions: 118 × 90 × 96 in
- Warranty: 1 Year (Parts)
| Weight | 5093.0 lbs |
|---|---|
| Dimensions | 118.0 × 90.0 × 96.0 in |
| Brand | Cosen |
