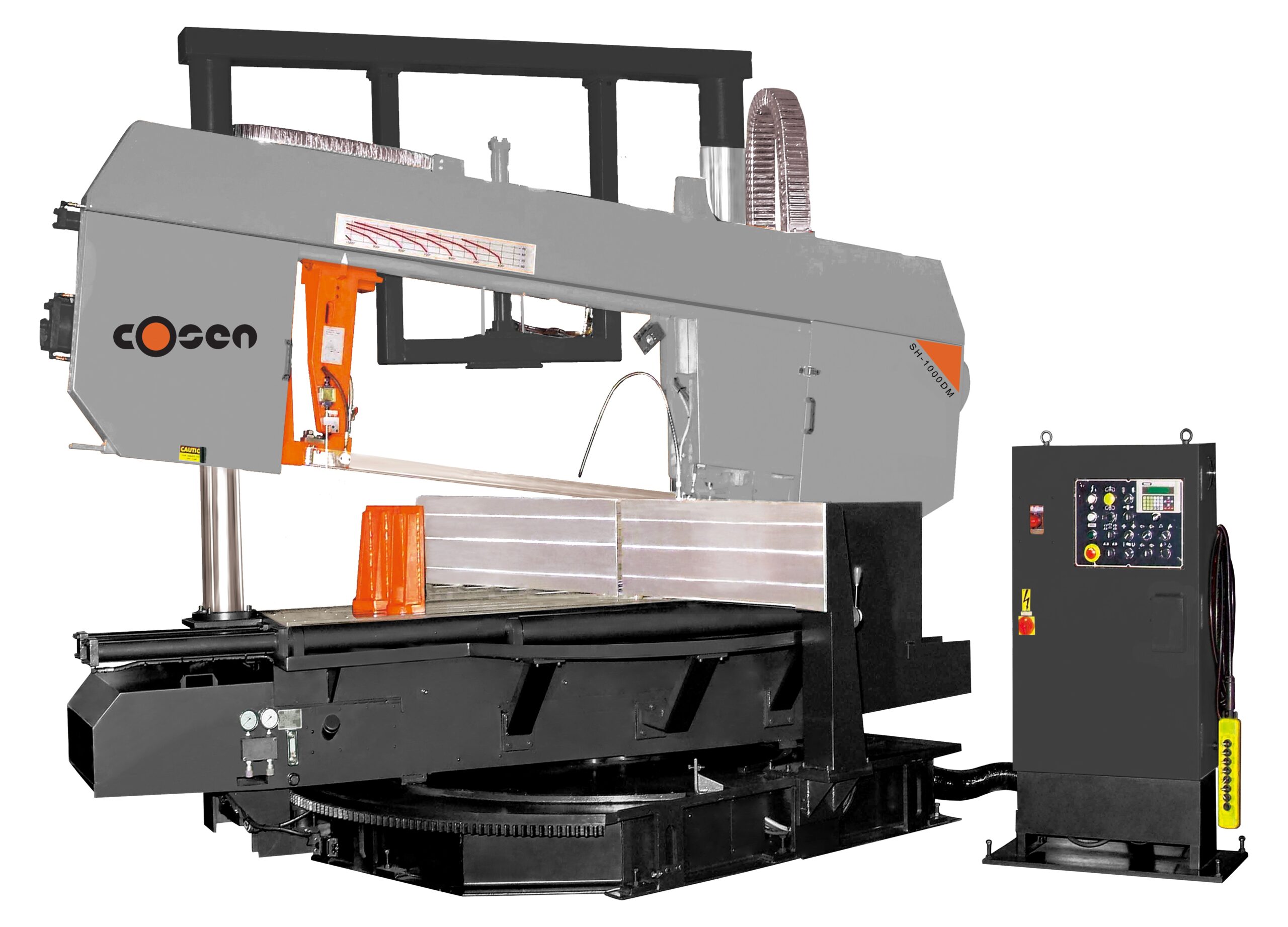

Cosen 26” Semi-Automatic Horizontal Dual Column Dual Mitering Band Saw SH-1000DM

Cosen 26” Semi-Automatic Horizontal Dual Column Dual Mitering Band Saw SH-1000DM is a Cosen product in the Band Saws collection.

Product Details

• Round Capacity at 0°: 26”
• Rectangular Capacity at 0°: 20.5” x 40”
• Blade Motor: 10 HP
• Workbed Height: 31.9"
• Description
• Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen's SH-1000DM fits into that category. This heavy-duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.
• Features
• Hydraulic dual column design
• Heavy-duty cast iron swivel center features straight cutting and miter cuts (-40, +60 degrees)
• Gearbox designed to accept high lateral pressure (no thermal distortion)
• Inverter blade drive system which allows infinitely variable blade speeds
• Adjustable flood coolant system
• Motor driven, synchronized wire blade brush
• Carbide blade guides and bearing provides additional blade support
• Hydraulically actuated cast-iron guide arms
• Cast-iron hydraulic vise
• Split vise jaw for reduced burr
• Automatic hydraulic blade tensioning device
• Dual valve feed pressure and feed rate system for optimal cutting performance
• Specifications
• Capacity: 0° Angle: Round: 26” Rectangular: 20.5” x 40” +/- 45° Angle: Round: 23” Rectangular: 20.5” x 24.4” +60° Angle: Round: 15.7” Rectangular: 21.3” x 15.7”
• 0° Angle: Round: 26” Rectangular: 20.5” x 40”
• Round: 26”
• Rectangular: 20.5” x 40”
• +/- 45° Angle: Round: 23” Rectangular: 20.5” x 24.4”
• Round: 23”
• Rectangular: 20.5” x 24.4”
• +60° Angle: Round: 15.7” Rectangular: 21.3” x 15.7”
• Round: 15.7”
• Rectangular: 21.3” x 15.7”
• Blade Speed:” 49 – 295 FPM
• Blade Size (LxWxT): 27' 6.7" x 2" x .063"
• Coolant Motor: 1/4 HP
• Weight: 12,254 lbs
• Floorspace (LxWxH): 148" x 154" 112.5"

Specifications

• Manufacturer: Cosen
• SKU: SH-1000DM
• Shipping Method: Flatbed
• Weight: 12,500 lb
• Dimensions: 153 × 159 × 118 in
• Warranty: 1 Year (Parts)
