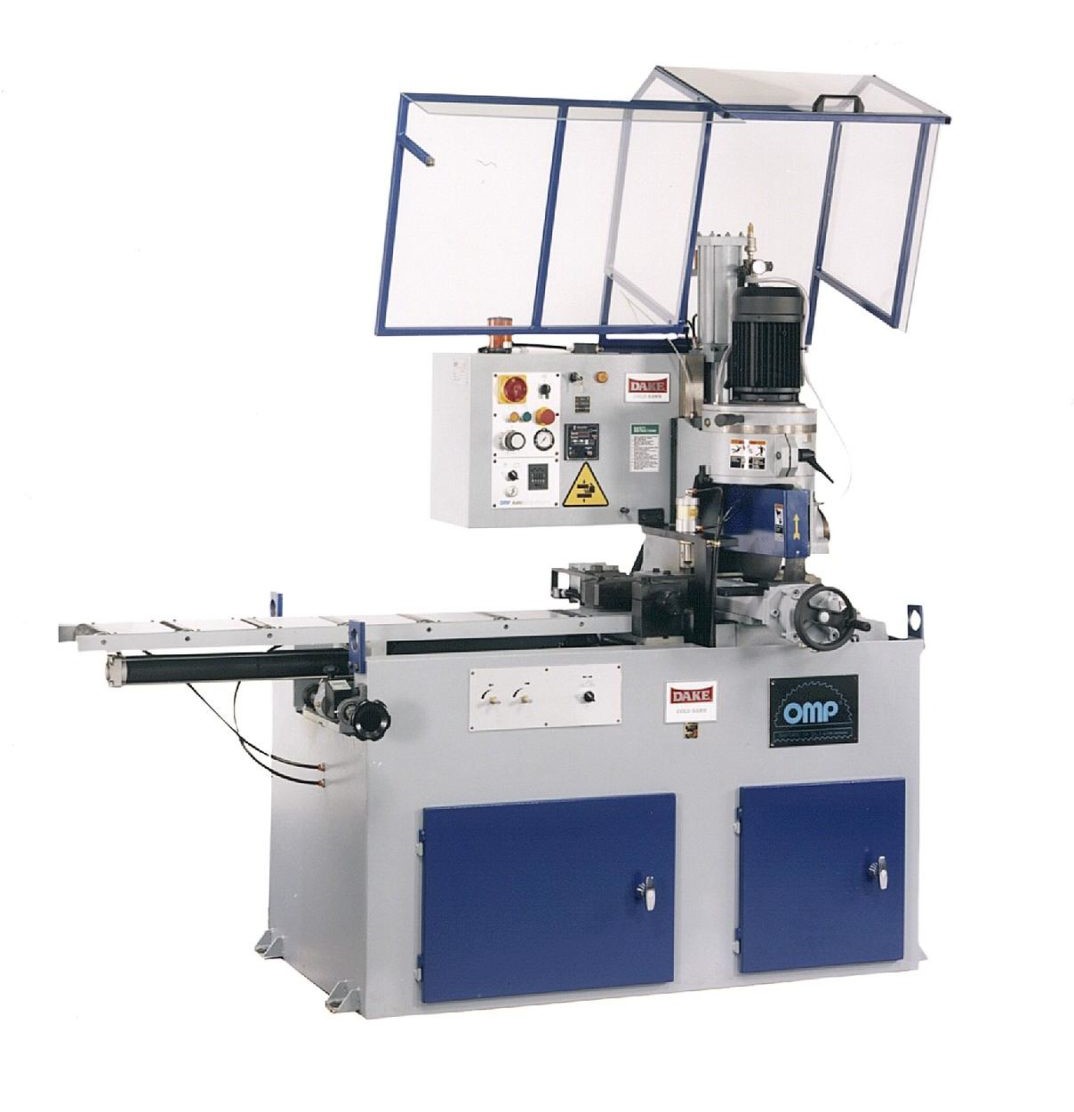

Dake Model 370PP 220V Three Phase 14½” Euromatic Automatic Ferrous Cold Saw 976208

Dake Model 370PP 220V Three Phase 14½” Euromatic Automatic Ferrous Cold Saw 976208 is a Dake Corporation product in the Cold Saws collection.

Product Details

• Max Vise Opening: 8¼”
• Max Angle: 45° Left/90° Right
• Speeds: 25/50 rpm
• Work Height: 35”
• Description
• The 370PP Ferrous Automatic Cold Saw is user-friendly while offering aggressive precision and stamina. Featuring two removable surface wear plates, a head that rotates 45° right of center and up to 90° left of center.
• Features
• Head rotates 45° right of center for miter cutting and up to 90° left of center for miter cutting and slotting
• Table features two removable surface wear plates to support longer cut lengths
• Three gib guides for the cutting head with two adjustable cast iron gib blocks in each for increased cutting accuracy and easy adjustment
• Large automatic clamping vise features adjustable give guides, removable face plates, and an anti-burr arm
• Minimum 6” remnant drop piece size for maximum material use
• Outboard section of the table is designed so shorter lengths tumble down a mesh discharge chute
• Manual oiler to lubricate 1” thick, hardened ways
• 3.5/4.5 HP motor has the muscle to drive a 14½” or 12” blade quickly and quietly through solids
• Clear acrylic hood has shock assists for raising and lowering and electrical interlocks
• Swap cutting head to gain non-ferrous/ferrous option on same saw
• Standard Equipment
• Blade
• Coolant
• Saw blade selector calculator
• Tools kit for changing blades
• Instruction and service manual
• Specifications
• Cutting Ability: Ferrous/Non-Ferrous/Plastic
• Max Blade Diameter: 14½”
• Max Feed Vise Opening: 6½”
• Slotting: Yes
• Electrical Requirements: 220V Three Phase 3.5HP
• Machine Dims: 83” x 54” x 90”
• Approx Weight: 1,716 lbs
• Capacities
• Solid Round 90°: 4” 45°: 3-5/8”
• 90°: 4”
• 45°: 3-5/8”
• Tube 90°: 5-1/16” 45°: 5”
• 90°: 5-1/16”
• 45°: 5”
• Square 90°: 4” 45°: 3-7/8”
• 45°: 3-7/8”
• Rectangle 90°: 4” x 7” 45°: 4” x 6”
• 90°: 4” x 7”
• 45°: 4” x 6”
• Optional Add-Ons
• 440V unit available (please contact a sales rep for more info)
• 440V External Transformer
• 575V Transformer
• Ferrous Cutting Head (300128)
• Non-Ferrous Cutting Head (79917)
• Unloading Table (301645)

Specifications

• Manufacturer: Dake Corporation
• SKU: 976208
• Shipping Method: LTL Freight
• Weight: 1,800 lb
• Dimensions: 85 × 60 × 95 in
