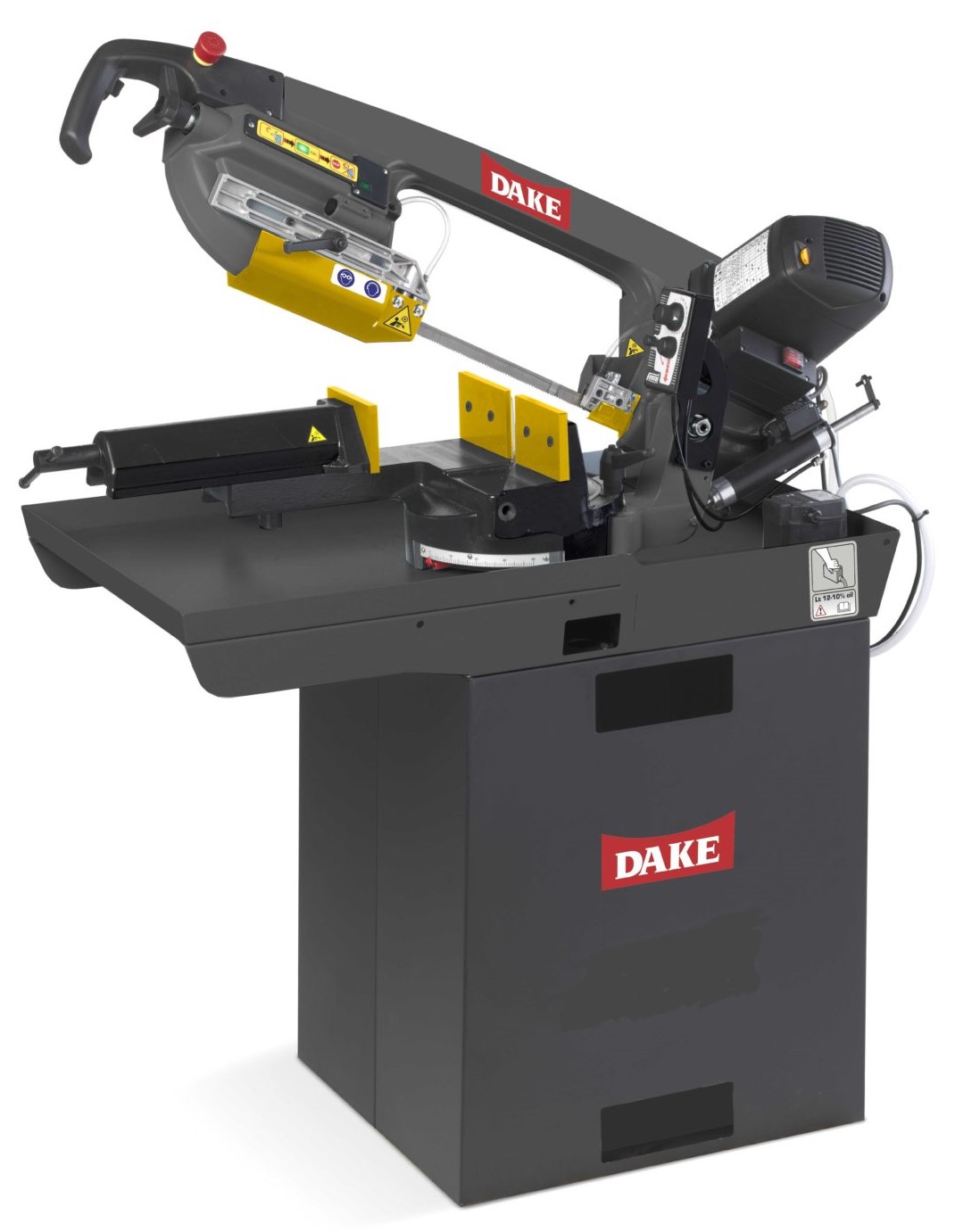

Dake Model SE 6.5 M 120V Single Phase 6.5” Round Capacity Stationary Mitering Horizontal Bandsaw 983110

Dake Model SE 6.5 M 120V Single Phase 6.5” Round Capacity Stationary Mitering Horizontal Bandsaw 983110 is a Dake Corporation product in the Band Saws collection.

Product Details

• Blade Speed: 114-262 fpm
• Workable Height: 37”
• Blade Size: 84¼” x ¾”
• Solid Round 45° Right: 4¼”
• Description
• Mitering bandsaw with dual operating modes and hydraulic controlled down feed. 2.5 HP, 120V motor with up to 60° right mitering capabilities. Ergonomic design for operator’s comfort and control. Variable speed with rotary adjusting wheel and “constant speed control” maintains constant speed to prevent bog downs when cutting.
• No tool takes more abuse than a horizontal band saw and nobody offers more dependable, more trouble-free horizontal bandsaws than Dake. Their heavy-duty, double-frame construction has been an industry standard since 1941. Since then, Dake’s four models of horizontal bandsaws have provided problem-free performance and maintenance-free operation, year after year.
• Features
• Hydraulic controlled down feed with manual return
• Automatic shut off at the end of the cut
• Dual operating modes, manual cutting or head feed cutting
• Powerful, manual clamping vise, with quick release lever for rapid vise opening and closing action for fast material size change over. The vise clamps material firmly
• Ergonomic designed for operator’s comfort and control
• Motor gearbox combination bolted to the bow for less vibration
• Variable speed with rotary adjusting wheel and “constant speed control” maintains constant speed to prevent bog downs when cutting
• CE certified electronics. Low voltage switches. Thermo overload protection, low voltage protection with low voltage trigger motor start switch
• Blade tensioning is done via “Go No Go” tensioning system with LED taking the guess work out of tensioning. Saw will not run if blade tension is not correct
• Miters up to 60° right. Mitering pre-sets with slide stops makes set up fast and has precise with miter scale for all angles in between. The head turns – the material does not
• Horizontally mounted guide arms for more rigidity and straightest cuts. Guides are rollers with carbide inserts that are fully adjustable and replaceable
• Electric coolant pump and self-contained coolant system
• 120 volt means you can use it most anywhere
• Steel fabricated base and stock stop gauge, one Bi-metal blade
• Standard Equipment
• Steel base
• Blade
• Quick release vice
• 120V motor
• Specifications
• Capacity Solid Round 90°: 6.5” Solid Round 45° Right: 4¼” Solid Round 60° Right: 3” Solid Square 90°: 6¾” Solid Square 45° Right: 4½” Solid Square 60° Right: 3” Solid Rectangle 90°: 7¾” x 3” Solid Rectangle 45° Right: 6” x 4¼” Solid Rectangle 60° Right: 4”x 2¾”
• Solid Round 90°: 6.5”
• Solid Round 60° Right: 3”
• Solid Square 90°: 6¾”
• Solid Square 45° Right: 4½”
• Solid Square 60° Right: 3”
• Solid Rectangle 90°: 7¾” x 3”
• Solid Rectangle 45° Right: 6” x 4¼”
• Solid Rectangle 60° Right: 4”x 2¾”
• Blade Width: ¾”
• Blade Length: 84¼”
• Max Blade Speed: Variable
• Horsepower: 2½ HP
• Electrical Requirements: 120V Single Phase
• Machine Dims: 35” x 48” x 65”
• Approx Weight: 450 lbs

Specifications

• Manufacturer: Dake Corporation
• SKU: 983110
• Shipping Method: LTL Freight
• Weight: 455 lb
• Dimensions: 30 × 48 × 42 in
