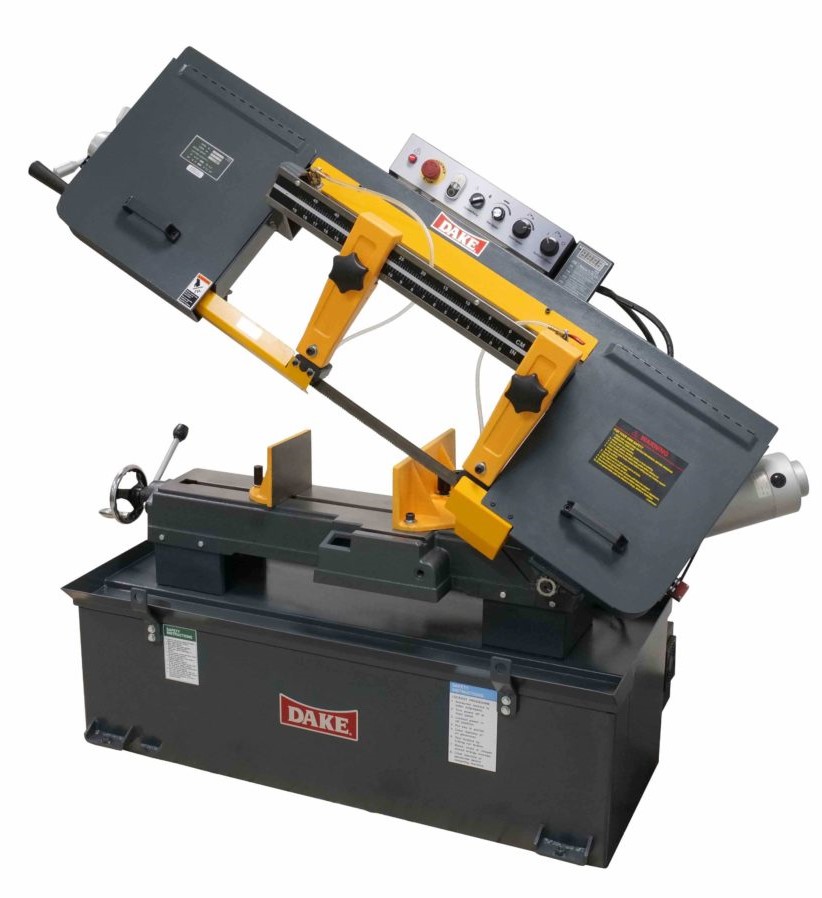

Dake Model SE1018 220V Single Phase 10” Round Capacity Standard Duty Variable Blade Speed Horizontal Bandsaw 983114
$4,930.25Current price is: $4,930.25.
- Max Blade Speed: 65-260 fpm
- Bed Work Area: 23” x 11”
- Floor to Bed: 22½”
- Blade Size: 121.5” x 1”
Dake Model SE1018 220V Single Phase 10” Round Capacity Standard Duty Variable Blade Speed Horizontal Bandsaw 983114 is a Dake Corporation product in the Band Saws collection.
Product Details
- Max Blade Speed: 65-260 fpm
- Bed Work Area: 23” x 11”
- Floor to Bed: 22½”
- Blade Size: 121.5” x 1”
- Description
- No tool takes more abuse than a horizontal bandsaw and nobody offers more dependable, trouble-free horizontal bandsaw than Dake. Their heavy-duty, double frame construction has been an industry standard since 1941. Since then, Dake’s horizontal bandsaws have provided problem-free performance and maintenance-free operation, year after year.
- Features
- High torque DC motor w/gear reducer eliminating belts and pulleys
- Variable speed dial – 65-250 fpm for on-the-fly-adjustment
- Digital Tachometer
- Hydraulic controlled, gravity head feed, for hands free cutting
- Hydraulically variable head feed control for regulation of head feeding rate. The machine automatically shuts off after the cut is complete
- Equipped with E-stop and restart protection
- Low voltage switches. Thermal overload protection, magnetic starter switch low voltage protection
- Vise miters up to 45°
- Vise has quick release for quick change over of material sizes
- Equipped with auxiliary 120V outlet
- Standard Equipment
- Recirculating coolant system
- Low voltage controls
- 6-8 TPI Standard Blade
- Specifications
- Capacity Solid Round 90°: 10” Solid Round 45°: 6” Solid Square 90°: 10” Solid Square 45°: 7” Solid Rectangle 90°: 5” x 18” Solid Rectangle 45°: 7” x 9”
- Solid Round 90°: 10”
- Solid Round 45°: 6”
- Solid Square 90°: 10”
- Solid Square 45°: 7”
- Solid Rectangle 90°: 5” x 18”
- Solid Rectangle 45°: 7” x 9”
- Blade Width: 1”
- Blade Length: 121.5”
- Blade Speeds: Variable Speed
- Horsepower: 2 HP DC motor
- Electrical Requirements: 220V Single Phase
- Machine Dims: 65” x 24” x 45”
- Approx Weight: 610 lbs
Specifications
- Manufacturer: Dake Corporation
- SKU: 983114
- Shipping Method: LTL Freight
- Weight: 670 lb
- Dimensions: 70 × 30 × 50 in
| Weight | 670.0 lbs |
|---|---|
| Dimensions | 70.0 × 30.0 × 50.0 in |
| Brand | Dake Corporation |
