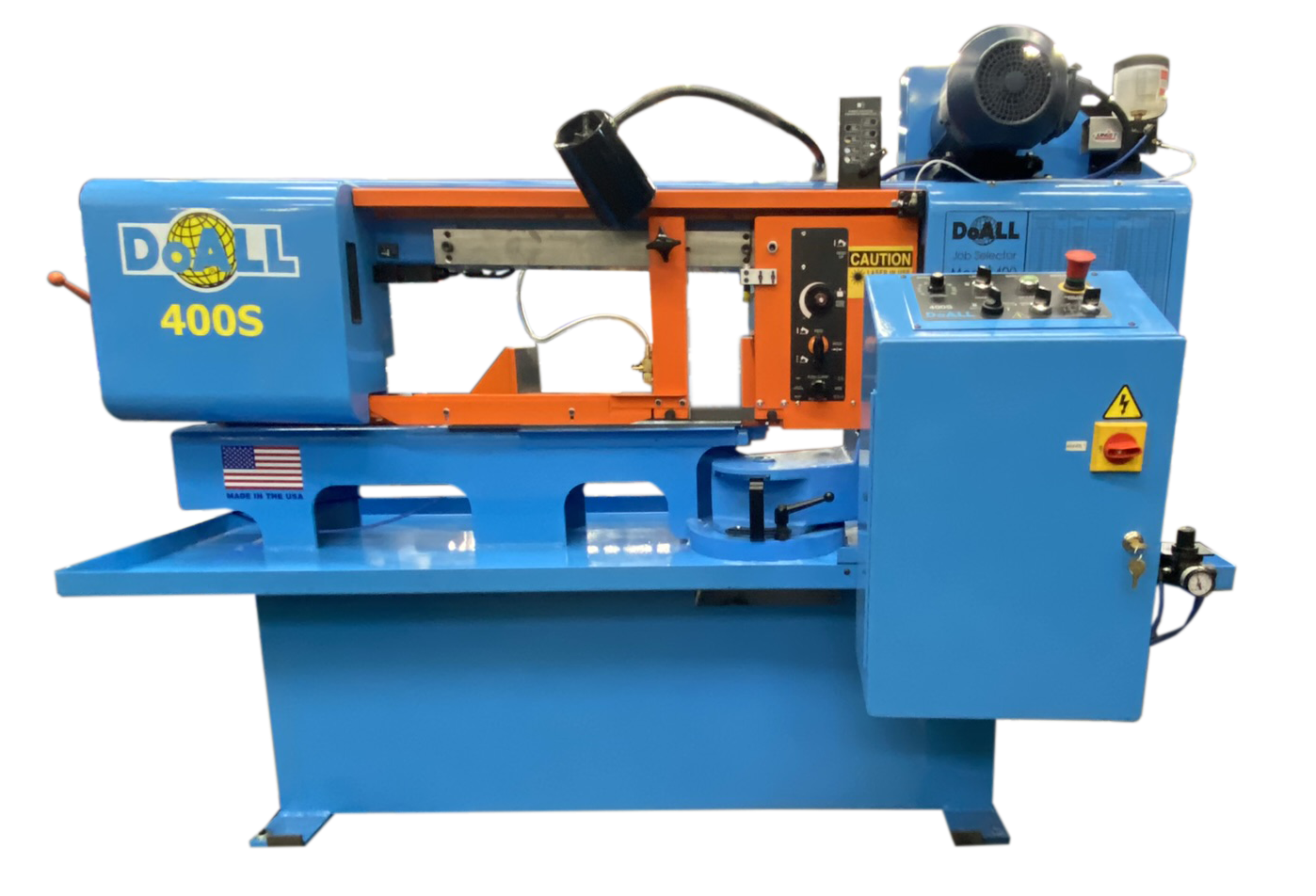

DoALL 10” x 16” Structural Band Saw with Variable Frequency Drive 400-S
$10,397.50Current price is: $10,397.50.
- Capacity at 90° Rectangle: 10” x 16”
- Capacity at 90° Round: 10-3/4”
- Band Speed: Variable, 50-400 fpm
- Material Pass Line Height: 29-1/8”
DoALL 10” x 16” Structural Band Saw with Variable Frequency Drive 400-S is a DoALL Sawing Products product in the Band Saws collection.
Product Details
- Capacity at 90° Rectangle: 10” x 16”
- Capacity at 90° Round: 10-3/4”
- Band Speed: Variable, 50-400 fpm
- Material Pass Line Height: 29-1/8”
- Features
- Fixed Control Console – The moveable pedestal was upgraded to a fixed control console. Ergonomically placed control console for ease of operation and safety of the operator.
- Increased Band Drive Speed – Band drive speed range is 50 fpm to 400 fpm. The previous model range is 75-275 fpm.
- Variable Frequency Drive (VFD) – The variable pully was replaced with VFD. The VFD is securely located under the control console. The Variable Frequency Band Drive allows the operator to dial in their band speed to fine tune cutting performance supplying maximum torque to the tooth tips of the saw band.
- Standard Equipment
- Swivel head to 45 degrees.
- Fine adjustment head feed control.
- Fixed control console
- Rapid head down approach.
- Spring loaded, zero clearance, coolant through, carbide faced saw guide inserts.
- Quick action rack and pawl vise system w/Acme Thread.
- Gear driven band cleaning brushes.
- Variable Frequency Drive
- Heavy duty counterbalance spring.
- Flange backing band wheels.
- Manual band tension.
- Recirculating coolant system.
- Discharge Tray.
- Replaceable steel wear plates on bed.
- Saw blade guards.
- Band door interlocks.
- Specifications
- Capacity at 45° Rectangle: 9” x 10-3/4”
- Capacity at 45° Round: 10-3/4”
- Band Width: 1” x 0.035”
- Band Length: 158”
- Band Tension: Spring Loaded by Hand Wheel
- Feed Control: Infinitely Variable, Hydraulic
- Head: Counter-Balanced
- Vise: Manual
- Wheels: 14.5” (368mm) diameter, Cast Iron
- Table Capacity: 1800 lbs
- Floor Space Required: 87x 42 x 55”
- Weight: 1200 lbs
- Available Options
- Full cycle attachment
- Work light
- Adjustable work stop (0”-24”)
- Laser line generator
- Gravity roller conveyors
- Additional conveyor rollers
- Flushing hose
- Band mist lubricator
- DoALL Cut Above 10 Year Warranty
- Custom welded to length band saw blades
Specifications
- Manufacturer: DoALL Sawing Products
- SKU: Model 400-S
- Shipping Method: Flatbed
- Weight: 1,650 lb
- Dimensions: 116 × 48 × 63 in
- Country of Origin: United States of America
- Warranty: 1 Year (Parts)
| Weight | 1650.0 lbs |
|---|---|
| Dimensions | 116.0 × 48.0 × 63.0 in |
| Brand | DoALL Sawing Products |
