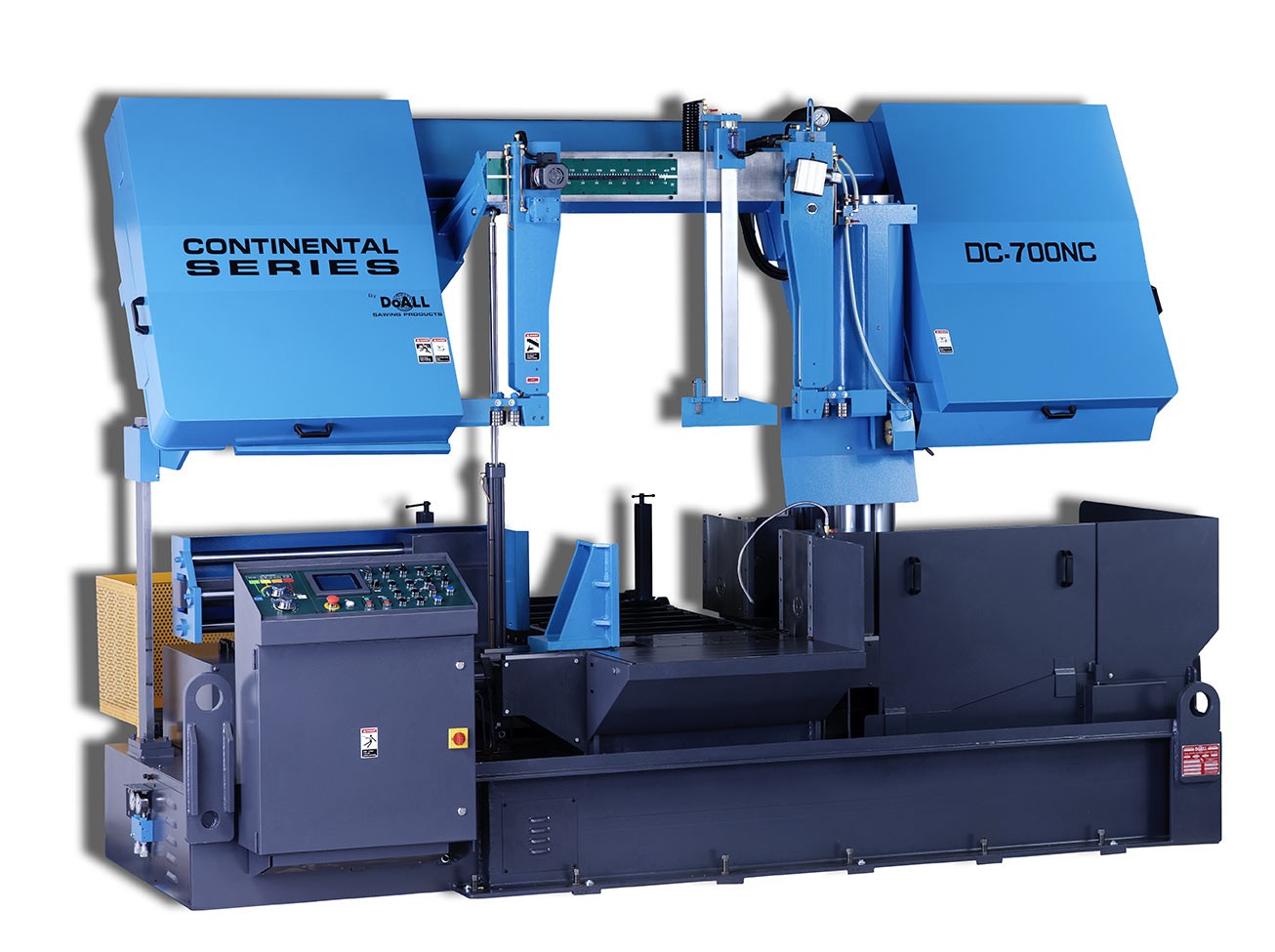

DoALL Production Band Saw DC-700NC
$79,047.50Current price is: $79,047.50.
- Machine Capacity: 31" x 27"
- Production Level: High
- Cutting Capacity Round: 27"
- Band Speed: 72-390 fpm
DoALL Production Band Saw DC-700NC is a DoALL Sawing Products product in the Band Saws collection.
Product Details
- Machine Capacity: 31" x 27"
- Production Level: High
- Cutting Capacity Round: 27"
- Band Speed: 72-390 fpm
- Description
- The DC-700NC Continental Series™ high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. The DC-700NC offers automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.
- Standard Equipment
- PLC control for all electric and hydraulic functions
- Infinitely variable speed controlled by VFD
- Hydraulic retractable shuttle vise material indexer
- Rapid and creep speed index vise control
- Multi-step full stroke vises with split front vise and variable vise pressure control
- Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
- Power driven, coolant flushed, blade cleaning wire brush
- Flushing hose and auxiliary coolant nozzles
- Hydraulic blade tension
- Automatic chip conveyor
- Blade breakage/stall motion detector shut off switch
- Band door interlocks
- Work lamp
- One 6 ½ ft. (2M) conveyor
- Set up tools and tool box
- Complimentary DoALL Cutting Fluids package
- One DoALL bi-metal saw blade
- Specifications
- Cutting Capacity Rectangle: 31" x 27"
- Band Saw Blade: 2-5/8" x 325"
- Band Drive: 10 HP
- Hydraulic Pump: 3 HP
- Hydraulic Tank Capacity: 34 Gal.
- Coolant Tank Capacity: 37 Gal.
- Automatic Index Length Single: 15.75"
- Automatic Index Length Multiple: 141.73"
- Material Pass Line Height: 31-1/2"
- Machine Weight: 15650 lbs
Specifications
- Manufacturer: DoALL Sawing Products
- SKU: DC-700NC
- Shipping Method: Flatbed
- Weight: 16,500 lb
- Dimensions: 165 × 96 × 98 in
- Country of Origin: United States of America
| Weight | 16500.0 lbs |
|---|---|
| Dimensions | 165.0 × 96.0 × 98.0 in |
| Brand | DoALL Sawing Products |
