DoALL Vertical Contour Band Saw 2012-VH
$19,897.50Current price is: $19,897.50.
- Machine Capacity: 20" x 12"
- Production Level: Medium
- Throat, Band to Column: 20"
- Table Capacity: 500 lbs
DoALL Vertical Contour Band Saw 2012-VH is a DoALL Sawing Products product in the Band Saws collection.
Product Details
- Machine Capacity: 20" x 12"
- Production Level: Medium
- Throat, Band to Column: 20"
- Table Capacity: 500 lbs
- Description

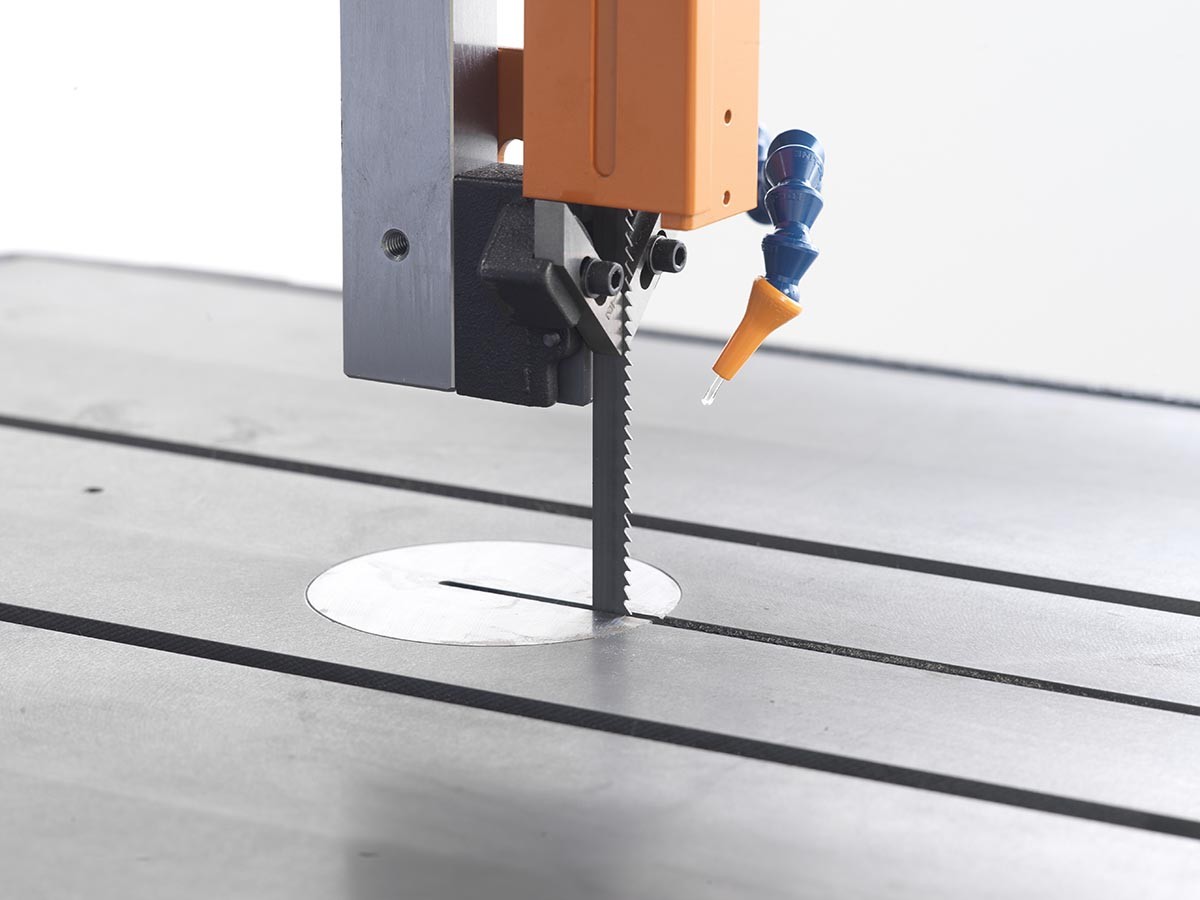

- The DoALL 2012-VH vertical contour band saw features a hydraulically powered work table with 12" table stroke. These upright, variable hydraulic controlled, metal cutting band saws are among the most versatile sawing machines on the market today. The 2012-VH is widely used in machine shops, maintenance departments, schools and other areas where cutting a wide variety of materials is required.
- Standard Equipment
- One set of saw guide blocks w/carbide backup for bands 1/8" to 1" (3 to 25mm )
- One set of 3/4" (19mm) and 1" (25mm) carbide-faced inserts
- One set of metal saw guide inserts for bands 1/4" (6mm), 3/8" (10mm) and 1/2" (13mm)
- Mist coolant—plant air
- Variable frequency AC drive
- Chip pan
- Job selector
- Band speed indicator (ft./min.-m./min.)
- Wheel brush assembly
- Band tension indicator
- Post elevating hand wheel
- Dual-range transmission
- Table trunnion wrench
- One bi-metal saw band
- Complimentary coolant package
- Instruction and parts manual
- Hydraulic reservoir, 4 1/2 gal. (15.6 liter)
- Wrench for saw guides
- Transmission oil
- Specifications
- Band Speed: 30-5,500 fpm
- AC Motor Drive: 3 HP
- Machine Weight (net): 1,1650 lbs
- Maximum Work Height: 12"
- Band Width Capacity: 1/8" – 1"
- Band Length: 154"
- Table: 26-1/2" x 33-1/2" ; Tilts 45R, 10L
- Table to Floor Height: 40"
- Table Stroke: 12"
- Table Feed: 0-6 fpm
- Table Feed Force: 0-175 lbs
- Upper Wheel Adjustment: 3"
- Wheels: Flanged with steel backed rubber tires
- Height, Max: 81"
- Floor Area Req.: 54-1/4" x 58"
Specifications
- Manufacturer: DoALL Sawing Products
- SKU: 2012-VH
- Shipping Method: Flatbed
- Weight: 1,850 lb
- Dimensions: 64 × 53 × 86 in
- Country of Origin: United States of America
| Weight | 1850.0 lbs |
|---|---|
| Dimensions | 64.0 × 53.0 × 86.0 in |
| Brand | DoALL Sawing Products |
