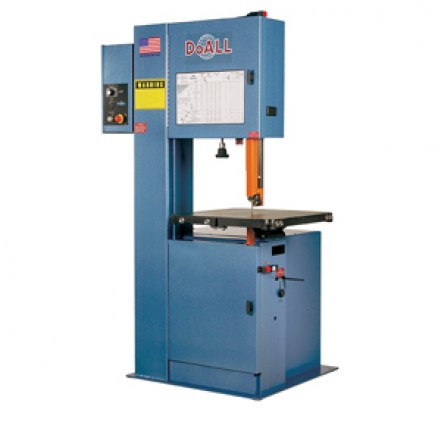

DoALL Vertical Contour Band Saw 2013-V3
$14,088.75Current price is: $14,088.75.
- Machine Capacity: 20" x 13"
- Production Level: Low
- Table: 26" x 26"
- Throat, Band to Column: 20"
DoALL Vertical Contour Band Saw 2013-V3 is a DoALL Sawing Products product in the Band Saws collection.
Product Details
- Machine Capacity: 20" x 13"
- Production Level: Low
- Table: 26" x 26"
- Throat, Band to Column: 20"
- Description
- The DoALL 2013-V3 vertical contour band saw features variable frequency AC inverter drive controls that start the motion of the band wheels slowly to reduce mechanical shock and increase drive train life, plus a dynamic braking function that rapidly stops motion when power is shut-off. The 2013-V3 upright metal cutting band saw is among the most versatile 20" x 13" (508x330mm) sawing machines on the market today.
- Standard Equipment
- Wrench for saw guides
- Dual range transmission
- Variable frequency AC drive
- Band speed indicator
- Band door interlocks
- Band tension indicator
- Job selector
- One set of high-speed, insert-type guide blocks for bands 1/16" – 1/2"
- Chip pan
- Instruction and parts manual
- One bi-metal saw band
- One set of steel guide inserts for bands 1/4", 3/8" and 1/2"
- Wrench for table trunnion
- Transmission oil
- Specifications
- Band Speed: 30-5,500 fpm
- AC Motor Drive: 3-hp
- Machine Weight (net): 1,250 lbs
- Maximum Work Height: 13"
- Band Width Capacity: 1/8" – 1"
- Band Length: 154"
- Table: 26" x 26" ; Tilts 45R, 10L
- Table to Floor Height: 39"
- Table Capacity: 500 lbs
- Upper Wheel Adjustment: 3"
- Wheels: Aluminum with crowned rubber tires
- Height, Max: 81-1/4"
- Floor Area Req.: 53-1/2" x 45"
Specifications
- Manufacturer: DoALL Sawing Products
- SKU: 2013-V3
- Shipping Method: Flatbed
- Weight: 1,350 lb
- Dimensions: 56 × 47 × 83 in
- Country of Origin: United States of America
| Weight | 1350.0 lbs |
|---|---|
| Dimensions | 56.0 × 47.0 × 83.0 in |
| Brand | DoALL Sawing Products |
