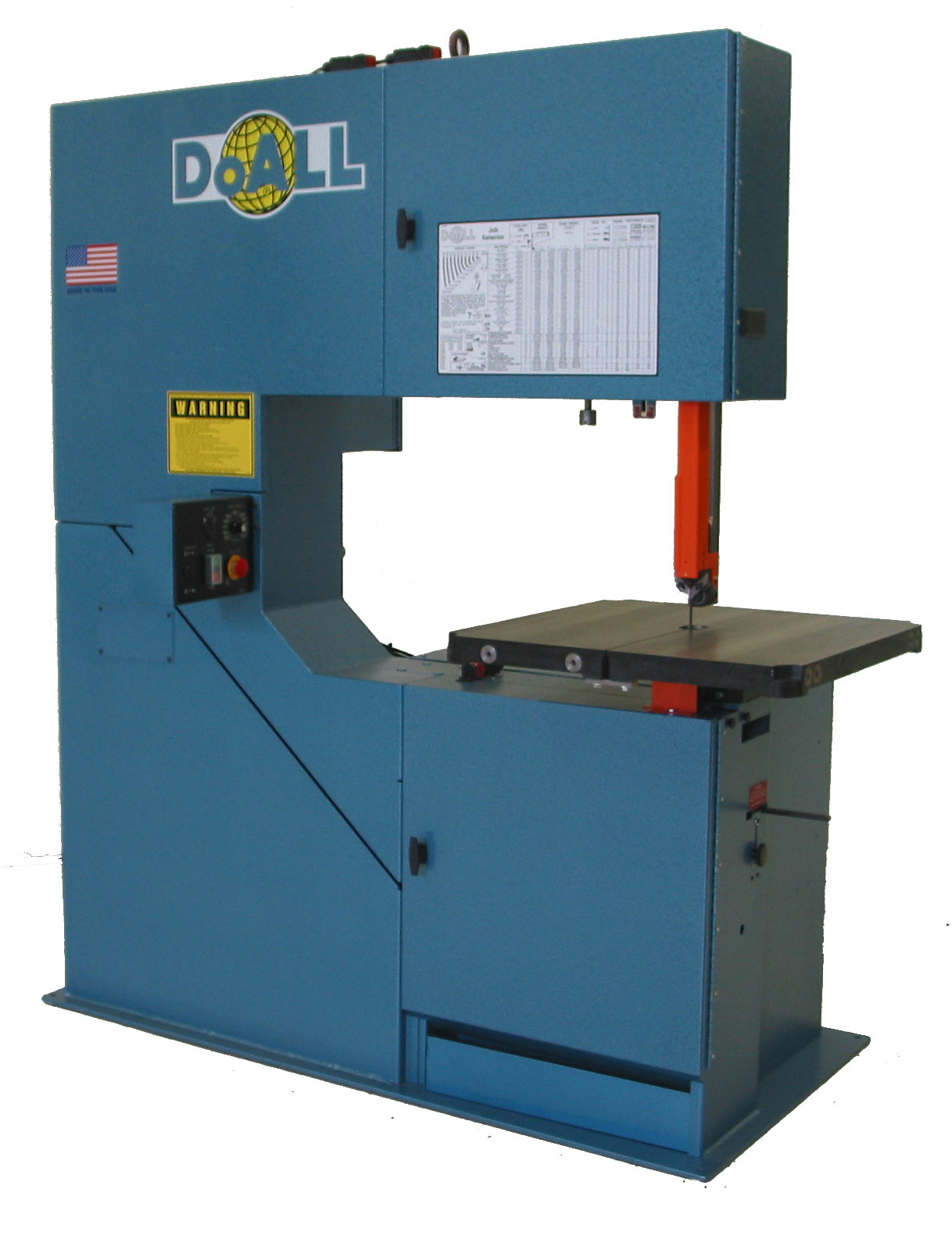

DoALL Vertical Contour Band Saw 3613-V3
$20,406.75Current price is: $20,406.75.
- Machine Capacity: 36" x 13"
- Production Level: Low
- Band Speed: 30-5,500 fpm
- Table: 26" x 26"
DoALL Vertical Contour Band Saw 3613-V3 is a DoALL Sawing Products product in the Band Saws collection.
Product Details
- Machine Capacity: 36" x 13"
- Production Level: Low
- Band Speed: 30-5,500 fpm
- Table: 26" x 26"
- Description
- The DoALL 3613-V3 vertical contour band saw features variable frequency 3 hp (2.23kW) AC inverter drive controls that start the motion of the band wheels slowly to reduce mechanical shock and increase drive train life, plus a dynamic braking function that rapidly stops motion when power is shut-off. The 3613-V3 upright metal cutting band saw, with a 36″ (915mm) cutting capacity, is widely used in machine shops, maintenance departments, schools and other areas where cutting a wide variety of materials is required.
- Standard Equipment
- Operation and service manuals
- One bi-metal saw blade
- Set of high-speed, insert-type guide blocks for bands 1/8″-1″ (3.2-25.4mm)
- Set of steel guide inserts for bands 1/4″, 3/8″ and 1/2″
- Band door interlocks
- Job selector
- Wrench for saw guides
- Removable chip drawer
- Band tension indicator
- Transmission oil
- Wrench for table trunnion
- Band speed indicator reading in fpm/mpm
- Variable frequency AC drive dual-range transmission
- Specifications
- AC Motor Drive: 3-hp
- Machine Weight (net): 1,550 lbs
- Throat, Band to Column: 36"
- Maximum Work Height: 13"
- Band Width Capacity: 1/8"-1"
- Band Length: 199"
- Table: 26" x 26" ; Tilts 45°R, 10°L
- Table to Floor Height: 39"
- Table Capacity: 500 lbs
- Upper Wheel Adjustment: 3"
- Wheels: Aluminum with crowned rubber tires
- Floor area required: 74" x 45" x 81-1/2"
Specifications
- Manufacturer: DoALL Sawing Products
- SKU: 3613-V3
- Shipping Method: Flatbed
- Weight: 1,900 lb
- Dimensions: 88 × 54 × 86 in
- Country of Origin: United States of America
| Weight | 1900.0 lbs |
|---|---|
| Dimensions | 88.0 × 54.0 × 86.0 in |
| Brand | DoALL Sawing Products |
