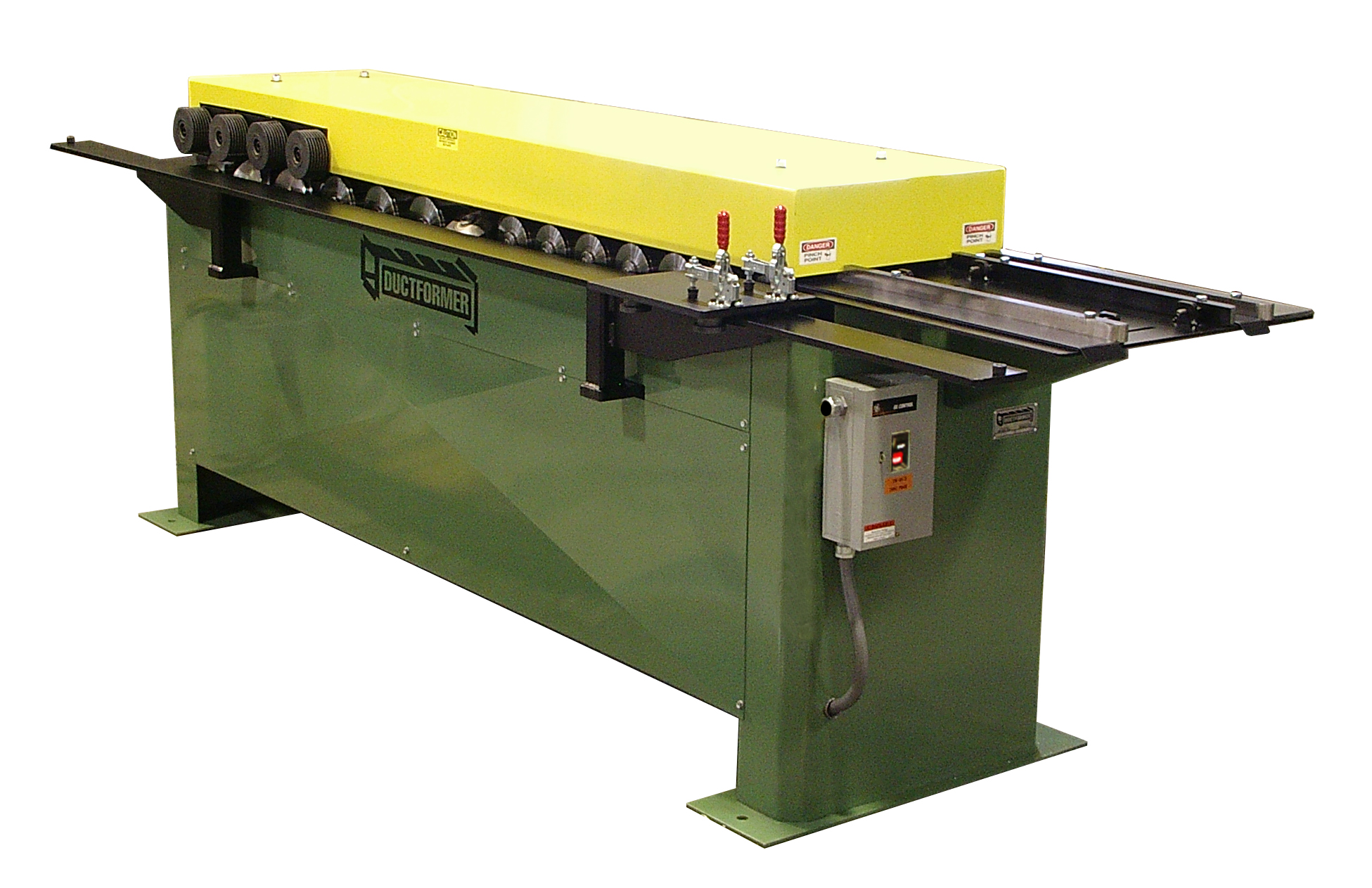

Ductformer 7.5HP 440V Three Phase 18-26 Ga 14 Station TDFC Rollformer CR14-TDFC
$22,425.00Current price is: $22,425.00.
- Gauge Range: 18-26 Ga
- Motor: 7.5HP 440V Three Phase
- Line Speed: 75 FPM
- Passline Height: 34”
Ductformer 7.5HP 440V Three Phase 18-26 Ga 14 Station TDFC Rollformer CR14-TDFC is a Ductformer product in the Metal Forming & Shaping collection.
Product Details
- Gauge Range: 18-26 Ga
- Motor: 7.5HP 440V Three Phase
- Line Speed: 75 FPM
- Passline Height: 34”
- Description
- Ductformer’s CR14-TDFC produces the F-style Transverse Duct Flange Connector direct onto the ends of the duct. This saves time and money by eliminating secondary fastening of Quick Duct and other bolt on applications as a result.
- The TDFC Flange application has proven to be the most cost-effective method to construct and install commercial rectangular ductwork. The C-Style Flange provides the extra strength and rigidity to sustain the Air Duct System.
- The Ductformer TDFC Rollformer features an All Gear Drive, Oil Bath Reducer, heavy duty spindles and quality Anti-friction Sealed Roller Bearings to provide years of maintenance free service. For this reason, you will discover how quiet and smooth the Ductformer performs. The quality of craftsmanship and superior design puts Ductformer years ahead of their competition.
- The heavy duty all steel frame construction features a full 24” Infeed Table with through hardened tool steel Infeed Guides. We make the Roll Tooling on our CNC Turning Centers. This helps ensure every machine produces the same high quality formed profile you expect from Ductformer.
- Each Ductformer TDFC comes with out Small Parts Feed Guide. Parts and fittings are clamped to a roller carriage to firmly hold the part as it passes through the Form Rolls. As with all Ductformer products, this unit is built in America.
- Ductformer’s TDFC rollformer comes with edge form flange rolls and short part feed roller track. The flange can be formed on straight duct and fittings utilizing standard corner flanges and clips. The TDFC design simplifies fabrication of medium and high pressure duct.
- Features
- Forming Stations: 14
- Infeed Table: 24”
- Heavy Duty Construction
- Hardened Tool Steel Infeed Guides
- All Gear Drive
- Self-adjusting Full Gauge Range
- Oil Bath Gear Reducer (standard)
- Heavy Duty Spindle Shafts
- Anti-friction Roller Bearings
- Short Part Feed to 6” (standard)
- Smooth, Quiet & Dependable Operation
- Specifications
- Length: 120”
- Width: 27 ½”
- Motor: 7.5HP
- 60Hz
- Shipping Weight: 2,400 lbs
Specifications
- Manufacturer: Ductformer
- SKU: CR14-TDFC (440V)
- Shipping Method: Flatbed
- Weight: 2,400 lb
- Dimensions: 120 × 28 × 40 in
- Country of Origin: United States of America
| Weight | 2400.0 lbs |
|---|---|
| Dimensions | 120.0 × 28.0 × 40.0 in |
| Brand | Ductformer |
