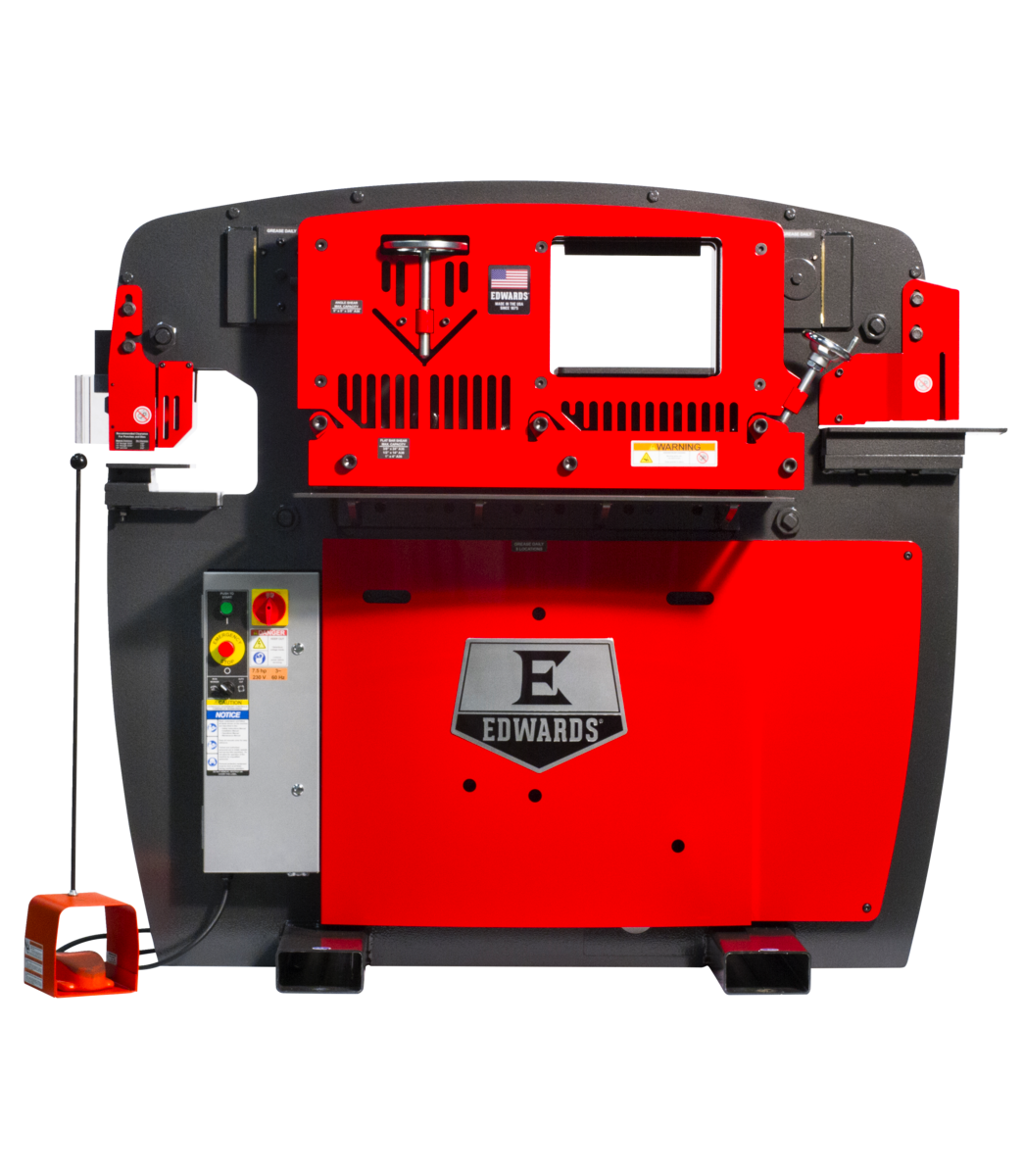

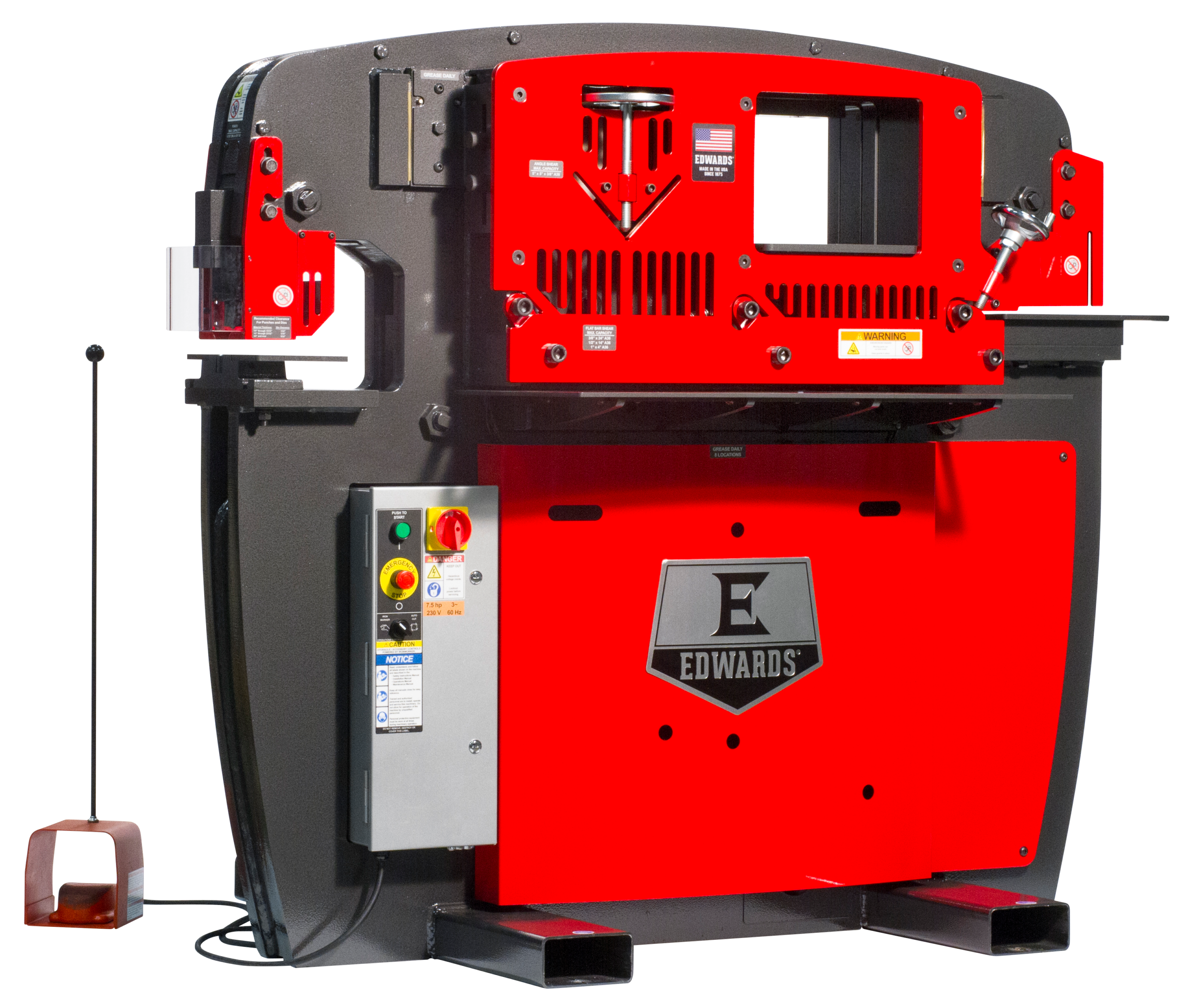

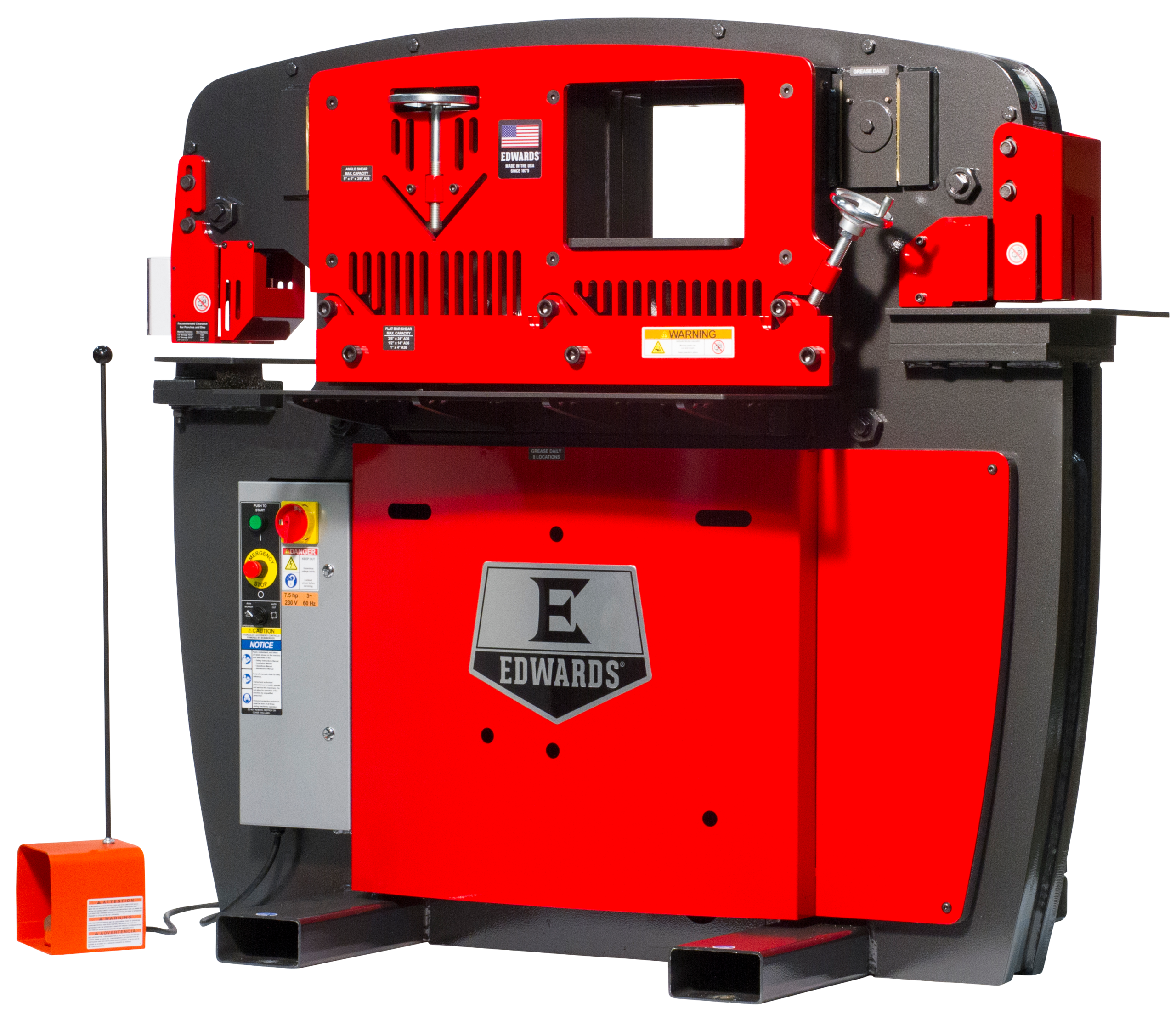

Edwards 65 Ton Ironworker 230V, 1Ph, with PowerLink IW65-1P230-AC700

Edwards 65 Ton Ironworker 230V, 1Ph, with PowerLink IW65-1P230-AC700 is a Edwards Manufacturing product in the Ironworkers collection.

Product Details

• Adjustable electric stoke control
• Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
• ANSI B11.5-1988(02) Compliant Guarding
• ETL Certified Controls
• Five Workstations: Standard (4) – Punch, Flat Bar Shear, Angle Shear, and Coper Notcher. Open Cavity (1): Customize your ironworker with four optional attachments including Brake, Rod Shear, Multi-Shear, and Pipe Notcher
• The 65 Ton is the ultimate mid-range Ironworker. Flexible enough to handle a wide variety of projects, this 5 workstation machine is extremely versatile. It allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend or cope all in one machine. Other features include an electric foot pedal with integrated jog control, bright LED lights to increase visibility and heavy-duty Made in USA steel construction. The PowerLink™ System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools. Accepting 14 interchangeable Attachments and 17 Accessories allows an operator to improve productivity and accuracy.
• Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
• Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
• Optimized workstation heights for improved efficiency
• Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
• Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
• Specification: Value
• Motor Speed (RPM): 1765
• Punch Max Capacity (In.): 1-1/16 diam. in 3/4 mild steel
• Punch Stroke (In.): 1-13/16
• Punch Work Height (In.): 36-9/16
• Flat Bar Shear Max Capacity 1/2": 14
• Flat Bar Shear Max Capacity 3/8": 24
• Flat Bar Shear Max Capacity (In.): 3/8 x 24, 1/2 x 14, 1×4
• Flat Bar Shear Work Height (In.): 34-1/2
• Flat Bar Shear Max Round Capacity (In.): 1
• Angle Shear Max Capacity (In.): 5 x 5 x 3/8
• Angle Shear Work Height (In.): 43-1/2
• Weight (Lbs.): 4750
• Coper Notcher Max Capacity (In.): 2-1/2 x 5 x 3/8
• Flat Bar Shear Max Square (In): 1
• Coper Notcher Work Height (In.): 39-1/2
• Flat Bar Shear Max Round (In): 1
• Hydraulic Pump (GPM): 10-1/2
• Punch Shut Height (In): 6-15/16
• Punch Open Height (In): 8-3/4
• Amps: 36
• Hydraulics (GPM): 10-1/2
• Rating (Tons): 65
• Reservoir (Gal.): 17
• Hydraulics (PSI): 3500
• Hydraulic Reservoir (Gal.): 17
• Valve Pressure (PSI): 3500
• Motor (HP): 7.5 HP 1 ~ 230V
• Overall Dimensions (L x W x H) (In.): 45 x 62-1/8 x 57
• Motor Amps: 36
• Shipping Dimensions (L x W x H) (In.): 46 x 69 x 63
• Gross Weight (Lbs): 4750
• Height: 63.0000
• Length: 46.0000
• Weight: 4750.0000
• Width: 69.0000

Specifications

• Manufacturer: Edwards Manufacturing
• SKU: ED9-IW65-1P230-A
• UPC: 731325556575
• Shipping Method: Flatbed
• Weight: 4,750 lb
• Dimensions: 46 × 69 × 63 in
• Country of Origin: United States of America
