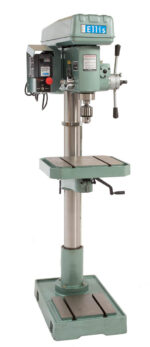

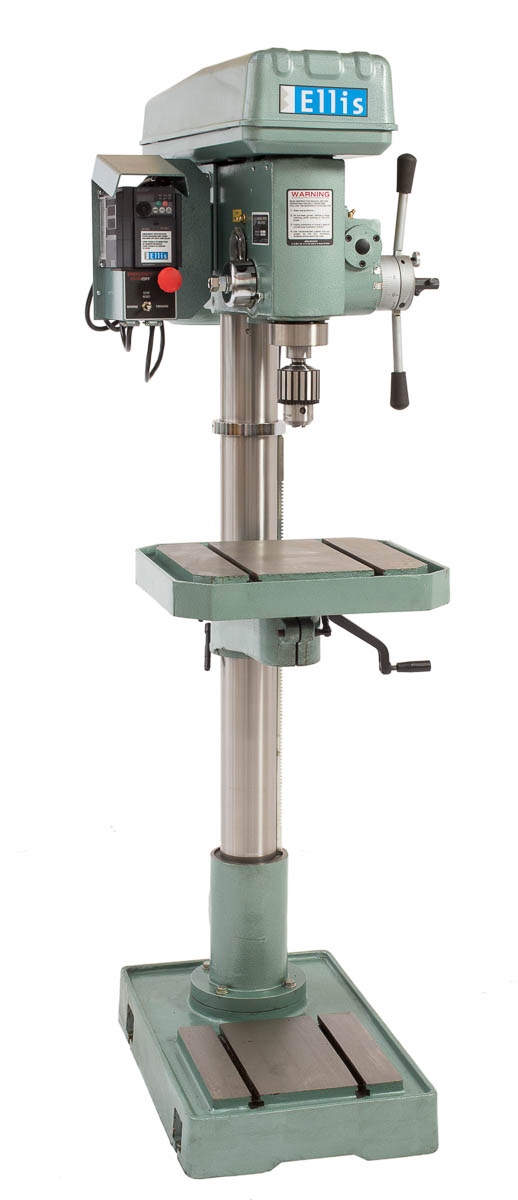

Ellis Manufacturing 220V Single Phase Variable Speed Drill Press 9400
$2,497.50Current price is: $2,497.50.
- Continuous speed adjustment while in operation
- Drill table rotates 360° around column
- Electronic reversing for tapping
- Motor: 220 Volt, 2HP A.C. Single Phase
Ellis Manufacturing 220V Single Phase Variable Speed Drill Press 9400 is a Ellis Manufacturing product in the Drill Presses collection.
Product Details
- Continuous speed adjustment while in operation
- Drill table rotates 360° around column
- Electronic reversing for tapping
- Motor: 220 Volt, 2HP A.C. Single Phase
- Features
- Variable speed from 0 to 1200 RPM
- Adjust speeds while operating in the material
- High torque at low RPM speeds
- Tapping head is not needed
- Taps left or right handed threads
- Smooth operating table crank
- Fully enclosed spindle
- Quill lock and depth control
- Speed control: Continuous speed adjustment while in operation Electronic reversing for tapping One turn on knob for adjusting speed (0 to 1200 RPM)
- One turn on knob for adjusting speed (0 to 1200 RPM)
- Specifications
- Motor: 220 Volt, 2HP A.C. 1 Phase, 60 Hertz, 6.8 Amp, S1 Duty, Induction B Grade

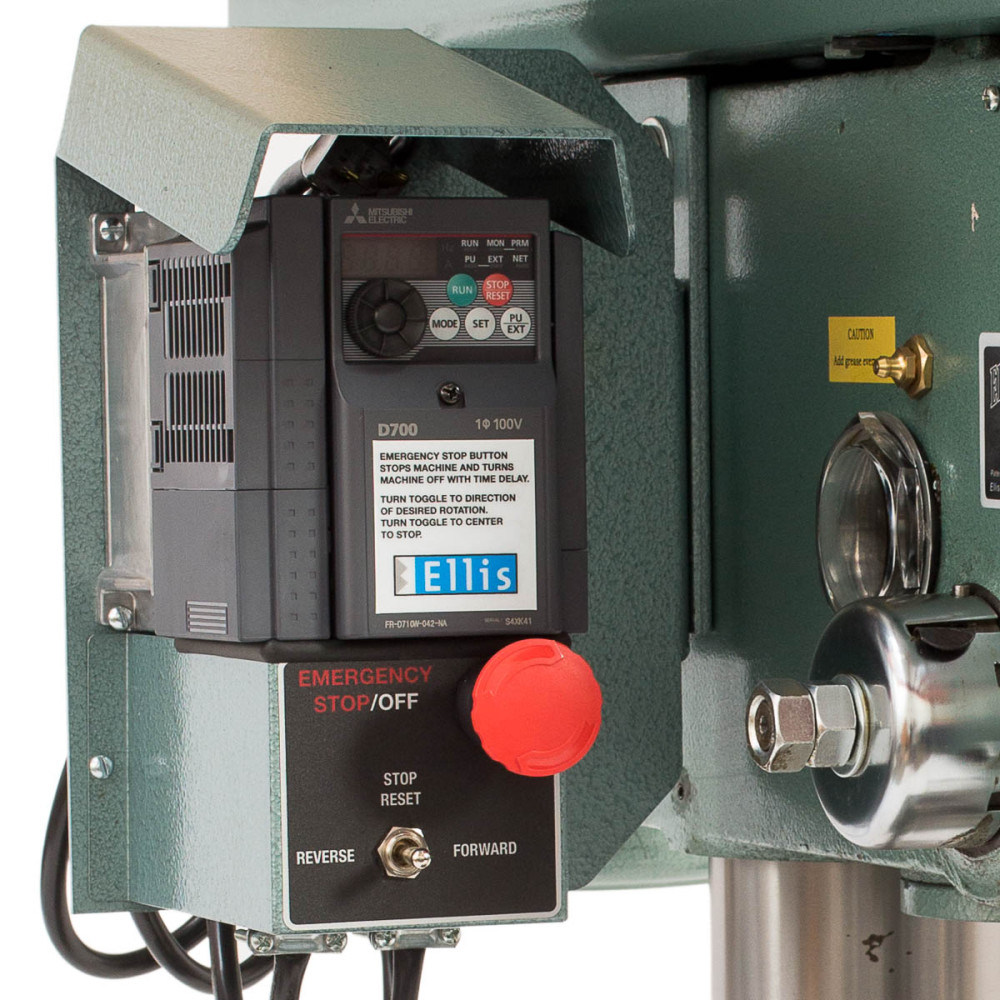

- Control Box: Infinitely Variable Speed by Turning the Dial Electronic Reversing Full Torque at Low Speeds All Solid State Circuitry Continuous Speed Adjustment While in Operation
- Infinitely Variable Speed by Turning the Dial
- Electronic Reversing
- Full Torque at Low Speeds
- All Solid State Circuitry
- Standard: Power Down Feed
- Spindle Speeds: 0 – 1200 RPM
- Drills To Center: 18-1/8″
- Drilling Capacity: Steel 1-1/16″ Cast Iron 1-1/4″
- Steel 1-1/16″
- Cast Iron 1-1/4″
- Tapping Capacity: 3/4″
- Morse Taper: No. 3
- Quill Diameter: 3″
- Column Diameter: 4″
- Spindle Travel: 5-3/8″
- Spindle To Table: (Max.) 27-1/4″
- Spindle To Base: 46-1/4″
- Shipping Weight: 677 lbs
- Table: 2 T-Slots 0.625″ Machined Surface 15.88″ X 17.88″ Coolant Trough
- 2 T-Slots 0.625″
- Machined Surface 15.88″ X 17.88″
- Coolant Trough
- Base: 2 T-Slots 0.625″ Machined Surface 11.80″ X 12.60″
- Machined Surface 11.80″ X 12.60″
- Size: Height 69-1/2″ Width 20″ Depth 29″
- Height 69-1/2″
- Width 20″
- Depth 29″
- Available Accessories
- 3/4″ Drill Press Chuck 11Pt
- 6″ Drill Press Vise
- Mill Table
- Chuck Guard Assembly
Specifications
- Manufacturer: Ellis Manufacturing
- SKU: Ellis9400 (220V)
- Shipping Method: LTL Freight
- Weight: 710 lb
- Dimensions: 78 × 27 × 42 in
- Country of Origin: United States of America
- Warranty: 1 Year (Parts)
