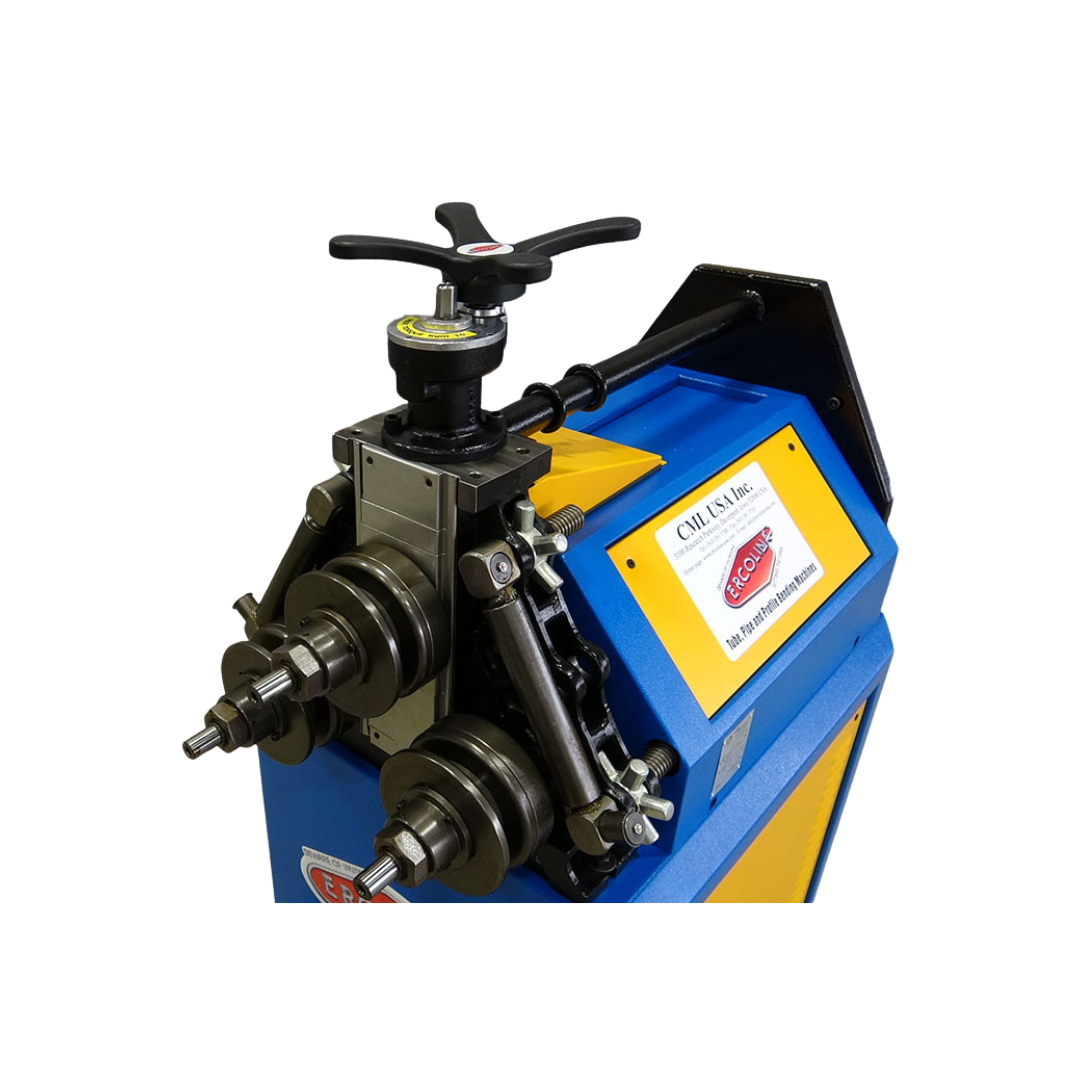

Ercolina 220V Three Phase Manual Positioning Angle Roll Bender with 2” Pipe Bending Capacity and Universal Tooling CE40MR3

Ercolina 220V Three Phase Manual Positioning Angle Roll Bender with 2” Pipe Bending Capacity and Universal Tooling CE40MR3 is a Ercolina product in the Roll Benders collection.

Product Details

• Pipe Capacity (max): 2” Sch. 40
• Angle Capacity (max): 2” x 2” x ¼”
• Roll Shaft Diameter: 40mm
• Manual Positioning with 3 Roll Drive
• Description
• Ercolina’s CE40 angle roll models are available either with manual or hydraulic center roll positioning. Vertical or horizontal operating position available.
• Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, Ercolina machines will increase profit, as well as improve product quality and finish.
• Features
• Bending speeds 20% faster than competitive machines
• Universal tooling set forged with smooth surface included with each machine
• Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
• Roll shafts supported with conical steel bearings on each side of A-Frame
• Heavy duty structure and rigid components for high section modulus ratings
• Reinforced engineered mainframe design proven to outperform competitive models
• In-line direct drive roll shaft system 3-roll driven
• Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
• Touchpad control with digital readout of center roll positioning

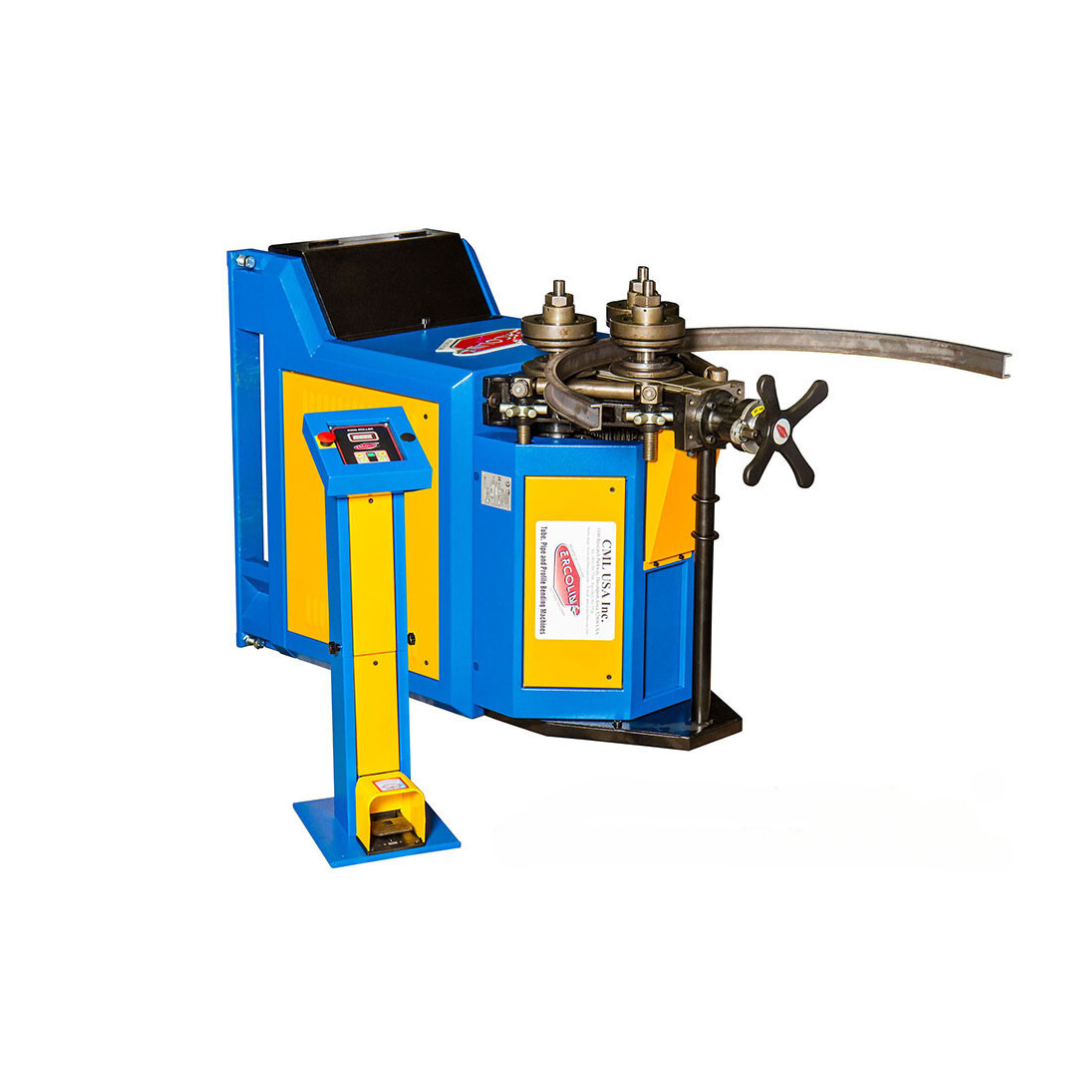

• Control tower with low voltage controls and foot pedal

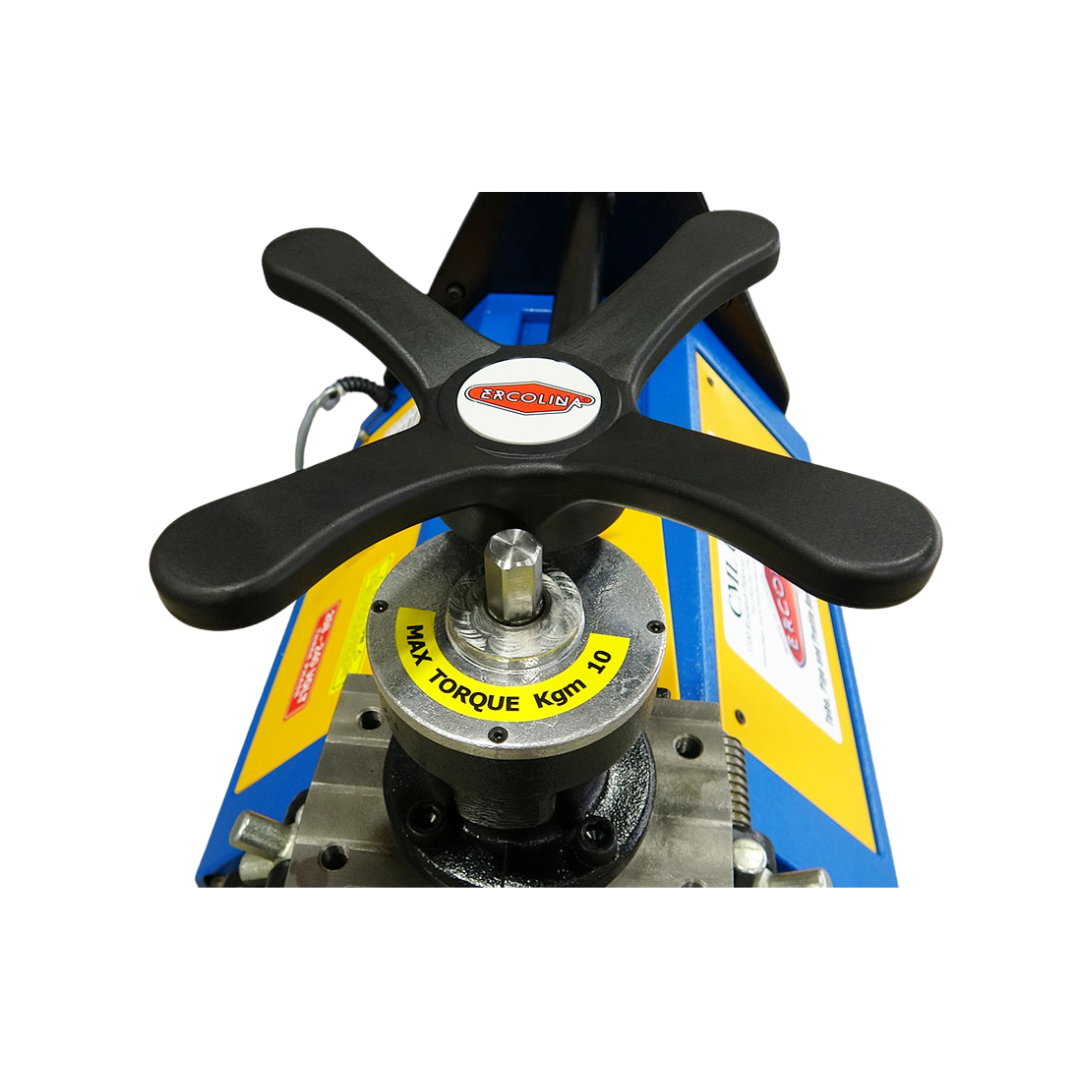

• 2-speed gear box with torque multiplier for positioning center roll
• Specifications
• Tube Capacity (max): 2½” (0.125 wall)
• Center Roll Positioning: Manual with patented torque multiplier
• Shaft Speed: 10 RPM
• Universal Tooling (Included): 6⅝″ O.D.
• Programming: Not available
• Distance between shafts: 10⅝″
• Operating Voltage: 220V Three Phase
• Dimensions (LxWxH): 39” x 26” x 59”
• Weight: 765 lbs
• Options
• Anti-twist correction system required for angle iron “Leg In” applications
• Small Radius Tooling (C4RR)
• Fabricator’s measuring set (KARC)

Specifications

• Manufacturer: Ercolina
• SKU: CE40MR3 (220V)
• Shipping Method: LTL Freight
• Weight: 763 lb
• Dimensions: 48 × 48 × 65 in
• Country of Origin: Italy
