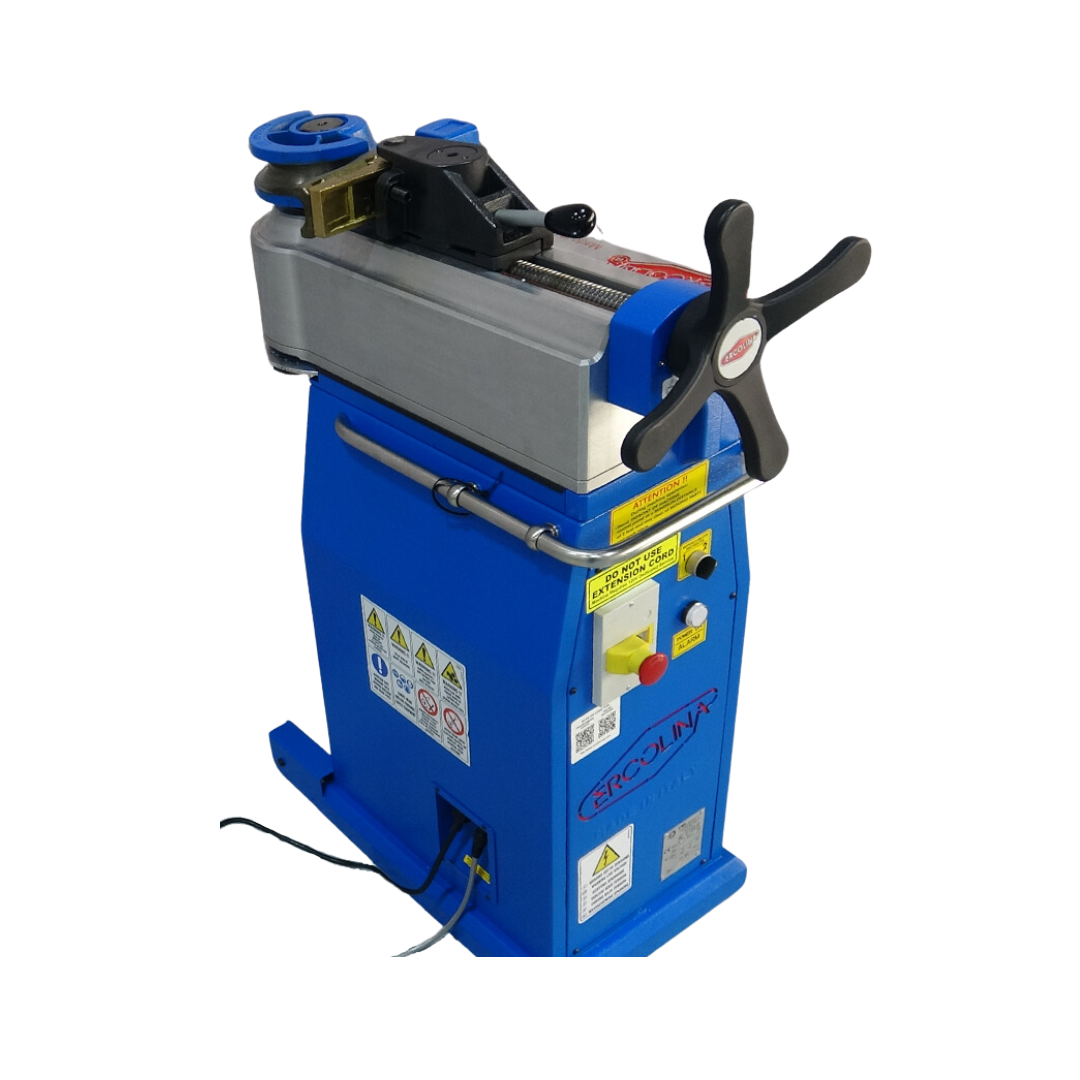

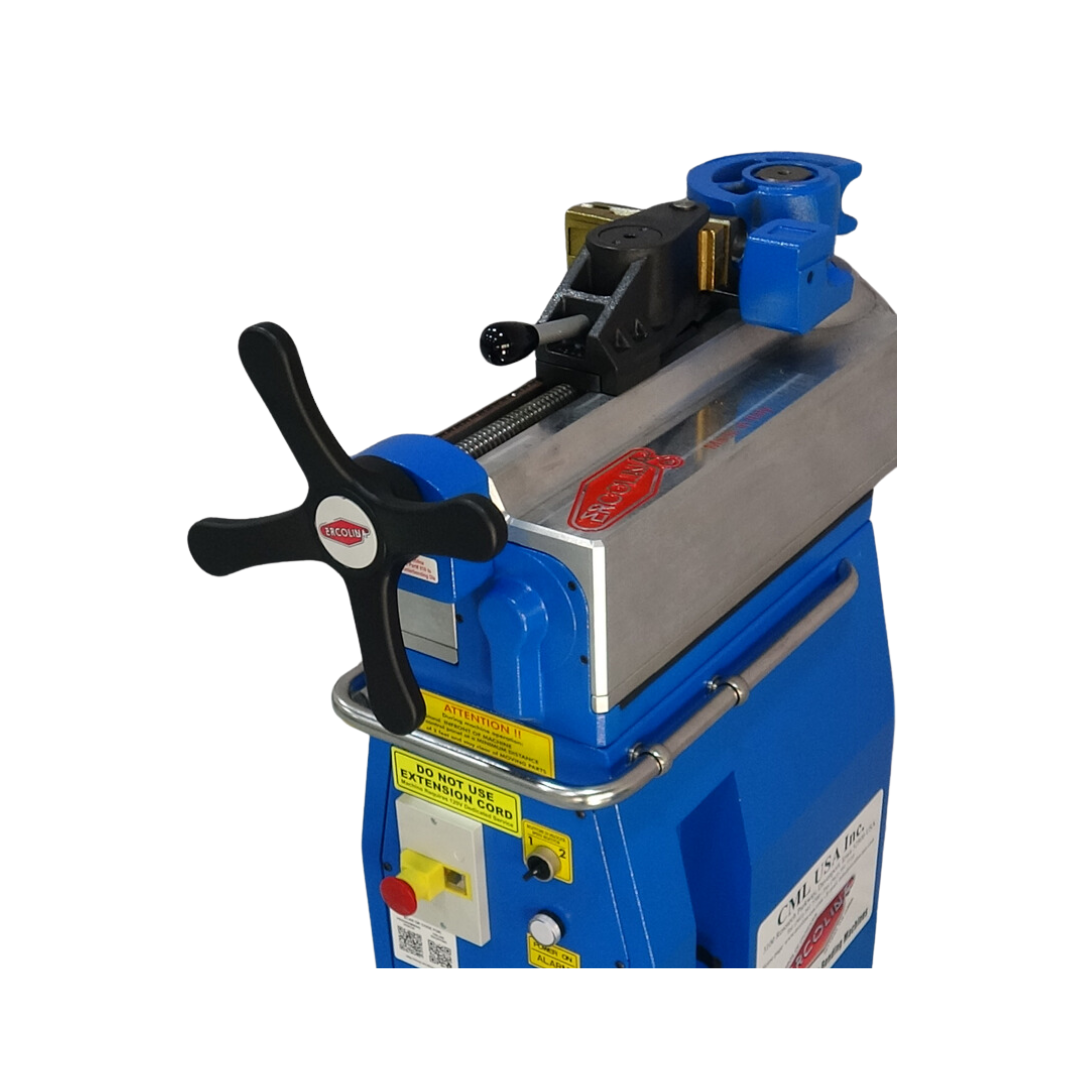

Ercolina ERCO-TECH Direct 480V Three Phase Hot Shot Tube & Pipe Bender with 2″ Tube Bending Capacity HB60-T

Ercolina ERCO-TECH Direct 480V Three Phase Hot Shot Tube & Pipe Bender with 2″ Tube Bending Capacity HB60-T is a Ercolina product in the Tube & Pipe Benders collection.

Product Details

• Tube Capacity Max.: 2”
• Pipe Capacity Max.: 1½″ Sch. 40
• Degree of Bend: 0-180°
• Bending Speed: 1.5 RPM
• Description
• Ercolina’s HB60 Hot Shot Bender is ideal for producing tight radius consistent quality bends in pipe, tube, and solids. Note: Bending square tube requires tooling modified for crush style bends for easy removal after the bend.
• Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, their machines will increase profit, as well as improve product quality and finish.
• Features
• Mild steel tube capacity 2-1/2″
• Pipe capacity 2″ Sch. 40
• Square tube capacity – consult factory
• Maximum CLR 10-1/2″
• Bend to CLR as small as 2D
• Hybrid hydraulic gear driven rotary draw bend action
• Quickly bend to 180° in seconds with patented ergonomic function – no ratcheting or repositioning
• Easy set and view angle degree wheel with auto stop for repeatable bends
• Draws tube from one direction for easier sequential bending
• Swing away counter bending die vise allows easy material on and off maintaining position without secondary locking
• Patented quick change system accepts all Ercolina tooling
• Precision one-piece cast steel tooling available in multiple centerline radii accommodates a variety of materials and wall thicknesses
• One piece solid bronze counter bend die for longer tool life and rigid support throughout the bend
• Machine case engineered for strength with high section modulus design
• Bend head swivels to accommodate any size shop space
• Single or three phase electric power available
• All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications.
• Specifications
• Capacities Tube Min.: ¼″ Max.: 2" Pipe Max.: 1½″ Sch. 40 Centerline Radius Min.: 2 x Ø Max.:10.5”
• Tube Min.: ¼″ Max.: 2"
• Min.: ¼″
• Max.: 2"
• Pipe Max.: 1½″ Sch. 40
• Max.: 1½″ Sch. 40
• Centerline Radius Min.: 2 x Ø Max.:10.5”
• Min.: 2 x Ø
• Max.:10.5”
• Voltage: 480V 3ph
• Dimensions (L x W x H): 27” x 15” x 36”
• Weight: 290 lbs.
• Bending Capacities
• Pipe Max Diameter: 1.500 Max Wall Thickness: Sch 40
• Max Diameter: 1.500
• Max Wall Thickness: Sch 40
• Mild Steel Tube Max Diameter: 2.000 Max Wall Thickness: 0.140
• Max Diameter: 2.000
• Max Wall Thickness: 0.140
• Soft Brass Max Diameter: 1.875 Max Wall Thickness: 0.120
• Max Diameter: 1.875
• Max Wall Thickness: 0.120
• Stainless Steel Max Diameter: 1.875 Max Wall Thickness: 0.065
• Max Wall Thickness: 0.065
• Hydraulic Tube Max Diameter: 2.000 Max Wall Thickness: 0.120
• Hard Copper & Aluminum Max Diameter: 2.000 Max Wall Thickness: 0.065
• Round Solids Max Diameter: 1.250
• Max Diameter: 1.250
• Rectangular Solids Max Diameter: 0.312 x 1.875
• Max Diameter: 0.312 x 1.875
• Rectangular Tube Max Diameter: 0.750 x 1.625 Max Wall Thickness: 0.120
• Max Diameter: 0.750 x 1.625
• Square Tube Max Diameter: 1.5 x 1.5 Max Wall Thickness: 0.120
• Max Diameter: 1.5 x 1.5
• Solid Square Max Diameter: 1.250 x 1.250
• Max Diameter: 1.250 x 1.250
• Options
• Spray Bending Lubricant
• Center Former Reinforcement Kit
• Counterbending Die Support
• Roller Counterbending Dies
• Counterbending Die Adaptor Plate

Specifications

• Manufacturer: Ercolina
• SKU: HB60-T
• Shipping Method: LTL Freight
• Weight: 340 lb
• Dimensions: 32 × 20 × 41 in
• Country of Origin: Italy
• Warranty: 1 Year (Parts)
