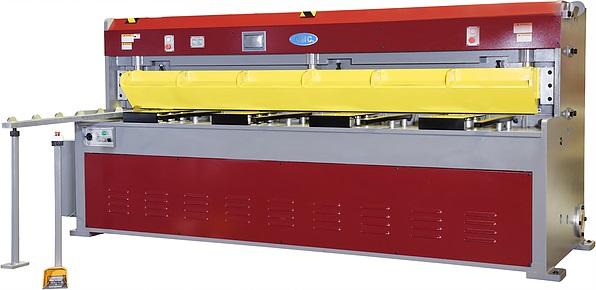

GMC Machinery 10’ x 1/4″ Heavy Duty Hydraulic Shear with SIKO Powered Back Gauge HS-1025E
$19,925.00Current price is: $19,925.00.
- 36" SIKO Powered Back Gauge
- Cutting Capacity Mild Steel: 10’ x 1/4"
- Cutting Capacity Stainless Steel: 10’ x 3/16"
- Main Motor: 10 HP
GMC Machinery 10’ x 1/4″ Heavy Duty Hydraulic Shear with SIKO Powered Back Gauge HS-1025E is a GMC Machinery product in the Shears collection.
Product Details
- 36" SIKO Powered Back Gauge
- Cutting Capacity Mild Steel: 10’ x 1/4"
- Cutting Capacity Stainless Steel: 10’ x 3/16"
- Main Motor: 10 HP
- Features
- ISO 9001 certified
- Taiwan machines
- 36” German SIKO Front Operated power back gauge w/ micro adjustment 0.004”, inch/mm digital display
- HS-1025E comes with go-to power back gauge with touch screen
- Quick Change Blade Gap Adjustment (BGA), with gap dial
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Shadow line for accurate straight cutting
- Adjustable cutting length and stroke
- Ball transfer plates on worktable for easy loading work piece
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raises up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes
- Standard Equipment
- 36” German SIKO Front Operated Power Back Gauge with micro adjustment, accuracy 0.004” inch/metric digital display
- 36” go-to back gauge w/ touch screen is for model HS-1025E
- 1 each 60” squaring arm with inlaid inch/metric dual scale
- Quick change blade gap adjustment (BGA)
- Material support and drop back chuter
- Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
- 2 each 24” front support arms
- Full length viewable finger guard
- Removable safety foot pedal
- Tool box
- Specifications
- Blade Length: 10'
- Strokes Per Minute: 10-12
- Throat Depth: 18”
- Worktable Height: 34-1/2”
- Front Support Arm: 24”
- Back Gauge for E Model: 36” Power BG
- Blade Rake Angle: 2 Degree
- Oil Tank Cap: 50 Gal
- Machine Weight: 13,850 lbs
- Machine Dimensions: 181 x 99 x 65
- *This model does not work with a phase converter*
Specifications
- Manufacturer: GMC Machinery
- SKU: HS-1025E
- Shipping Method: LTL Freight
- Weight: 13,850 lb
- Dimensions: 181 × 99 × 65 in
- Country of Origin: Taiwan
- Warranty: 1 Year (Parts)
| Weight | 13850.0 lbs |
|---|---|
| Dimensions | 181.0 × 99.0 × 65.0 in |
| Brand | GMC Machinery |
