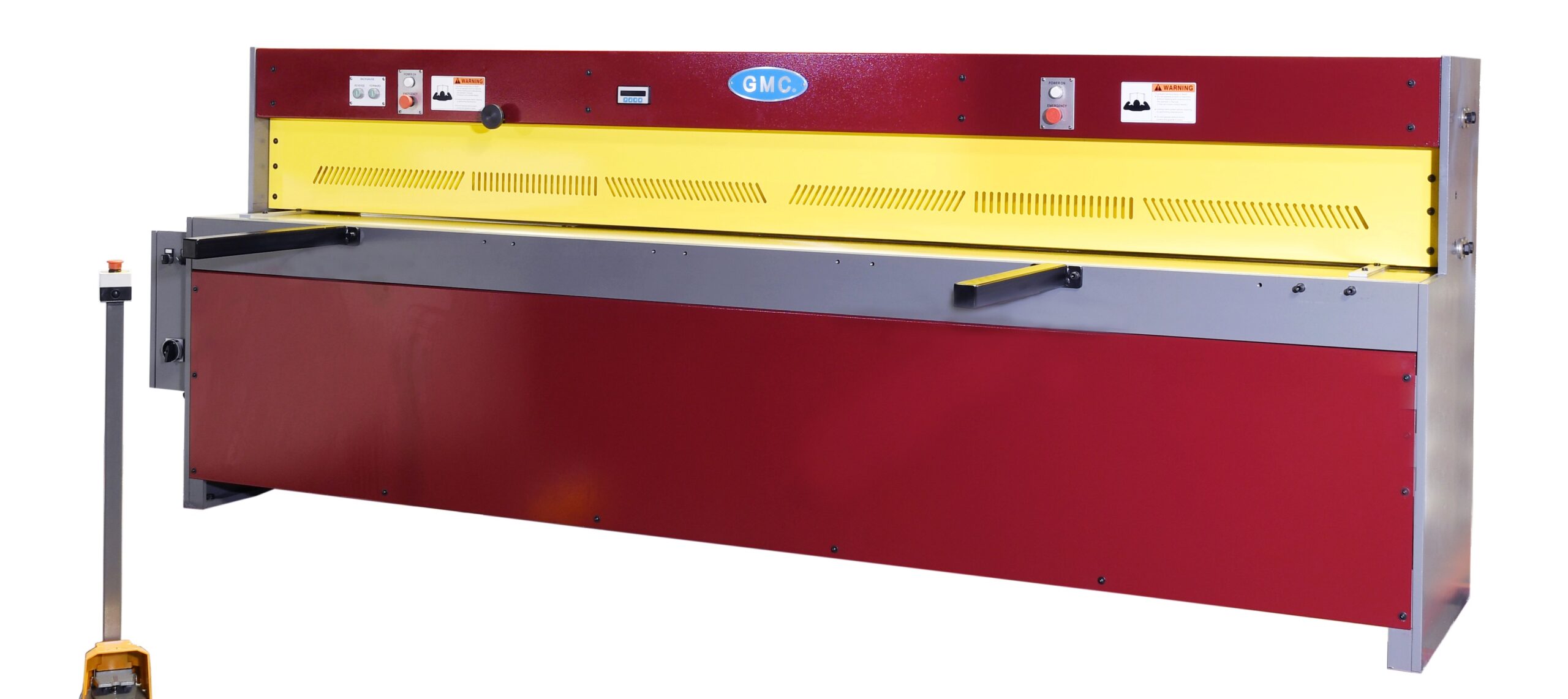

GMC Machinery 10” x 14 Gauge 220V Electric Power Shear with Powered Back Gauge EPS-1014E
$20,767.50Current price is: $20,767.50.
- Main motor: 7.5 HP, 220V, 3-Phase
- Cutting capacity for Mild steel: 10’ x 14 Ga
- Cutting capacity for Stainless steel: 10’ x 18 Ga
- 36” Front operated power back gauge
GMC Machinery 10” x 14 Gauge 220V Electric Power Shear with Powered Back Gauge EPS-1014E is a GMC Machinery product in the Shears collection.
Product Details
- Main motor: 7.5 HP, 220V, 3-Phase
- Cutting capacity for Mild steel: 10’ x 14 Ga
- Cutting capacity for Stainless steel: 10’ x 18 Ga
- 36” Front operated power back gauge
- Standard Features
- ISO 9001 certified
- American design and Taiwan quality machine
- With material front out tray
- HD all steel construction for maximum rigidity
- Precision driven gearbox
- Full length 26 strokes per minute
- 60” long squaring arm with inch / mm scale
- Spring hold-downs
- High grade carbon/chrome alloy steel blades and hardened to 62 hrc
- 2-edge indexable upper blade and 4-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
- One year warranty for parts
- Standard Equipment

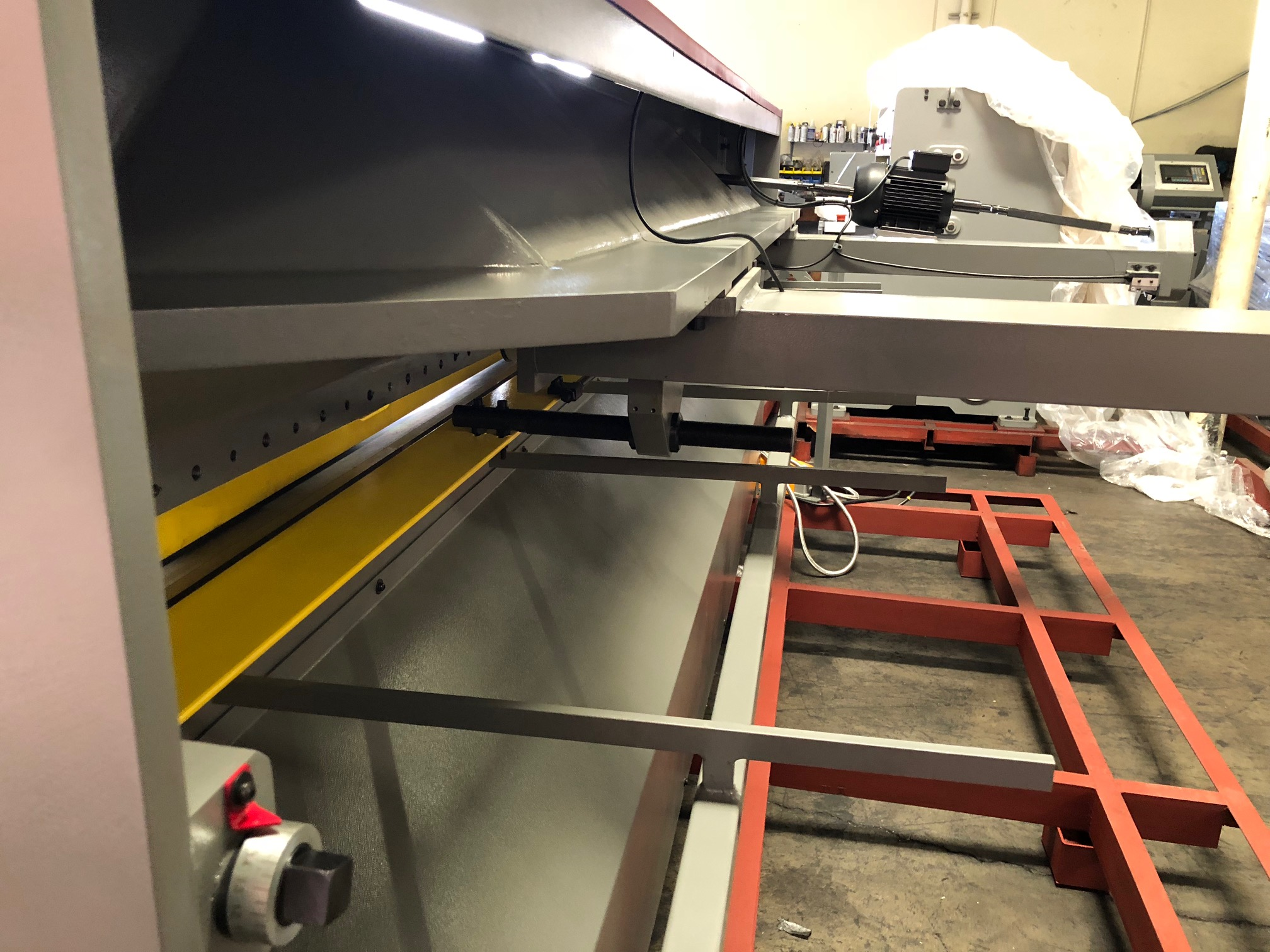

- 36” front operated power back gauge with German SIKO digital readout & fine adjustment wheel
- 60” long squaring arm with inch / mm scale, mounted on right side of the table
- Rear lifting support for thin sheet metal
- 2 each 24” front support arms
- Full length finger guard
- Removable safety foot pedal control
- One set of upper & lower blades
- Specifications
- Cutting capacity: Mild steel: 10’ x 14 Ga Stainless steel: 10’ x 18 Ga Soft Aluminum: 10' x 10Ga
- Mild steel: 10’ x 14 Ga
- Stainless steel: 10’ x 18 Ga
- Soft Aluminum: 10' x 10Ga
- Blade length: 10’ 1”
- Strokes per minute: 26
- Worktable height: 30-1/2”
- Front support arm: 24”
- Back gauge: 36” Powered Back Gauge
- Material front out tray: 10’ x 4’6”
- Blade rake angle: 2.0 degrees
- Main motor: 7 1/2HP, 220V/25A – 440V/15A, 3 Phase*
- Power Back Gauge Motor: 3/4 HP, 220V/440V, 3 Phase*
- Machine weight: 7350 Lbs
- Machine dimensions: 147” x 57” x 53”
- *This model does not work with a phase converter*
Specifications
- Manufacturer: GMC Machinery
- SKU: EPS-1014E (220V)
- Shipping Method: LTL Freight
- Weight: 7,350 lb
- Dimensions: 150 × 60 × 60 in
- Warranty: 1 Year (Parts)
| Weight | 7350.0 lbs |
|---|---|
| Dimensions | 150.0 × 60.0 × 60.0 in |
| Brand | GMC Machinery |
